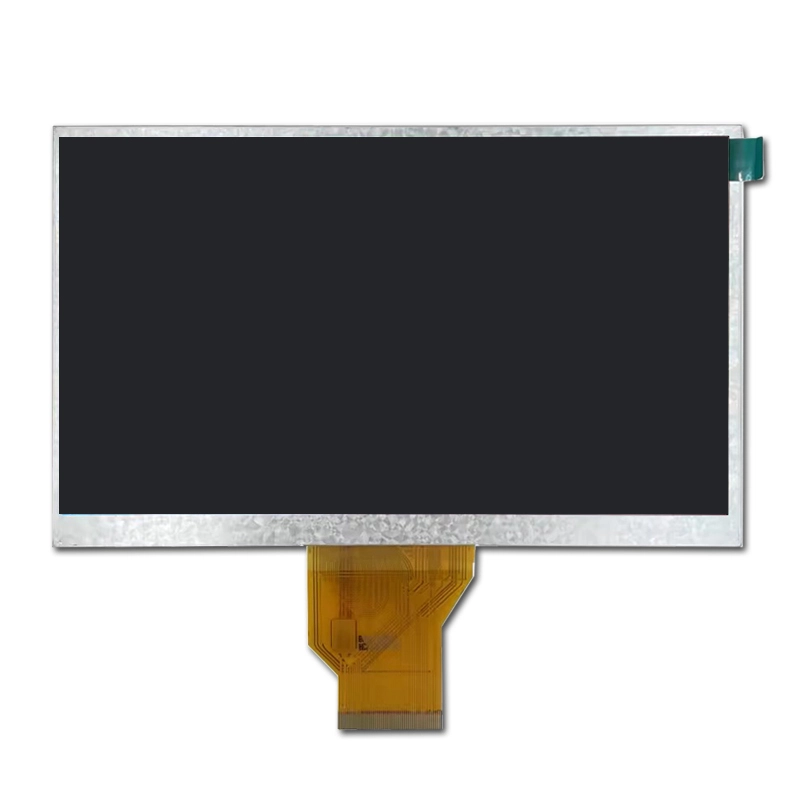

7 inch TFT Screen with Wide Temperature for Industrial

Use the listed −30 °C to +85 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. Power on after a cold soak and time the first usable image. Repeat at the hot end after the system has stabilized under load.

For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Measure supply voltage at the connector during cold start, and watch for resets or display noise when the system is hot.

Try your longest labels and alarms on a 800 × 480 canvas before committing to the enclosure. Compare the two displays at the actual panel temperatures you measured, using image start time, contrast and normal viewing distance. Include any enclosure heating or cooling needed by the alternative.

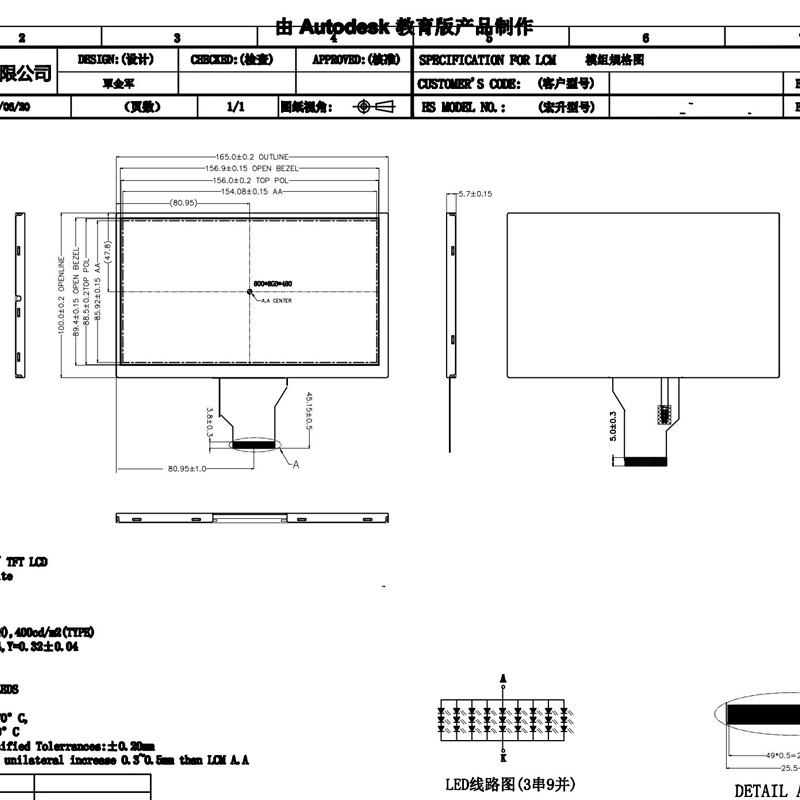

Use the 7-inch diagonal to shortlist panels, then check the exact drawing for fit. Check for mounting stress after thermal cycling, then rerun image uniformity and connector tests. The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote.

Send us the required startup and running temperatures at the display, enclosure drawing and expected order quantity. Keep the accepted operating limits, panel revision and sample test conditions on the purchase specification.
