Description
High Cost-Performance 15.6" FHD TFT LCD - The Reliable Alternative for M156GWFA-R0
This 15.6-inch TFT LCD module (DWM156GAF3.2) features a crisp 1920x1080 FHD resolution and a stable LVDS interface. Built with IVO original FOG technology, it is specifically optimized for high cost-performance.
With 550 nits brightness, it is the perfect choice for indoor medical devices, industrial control panels, and budget-conscious engineering projects. It serves as a direct, high-value replacement for the M156GWFA-R0, balancing performance and cost without compromising quality.
Cost-Efficiency Champion: Optimized brightness (550 nits) for indoor environments, providing a significantly better price point than ultra-high brightness competitors.
Seamless Replacement: Fully compatible alternative for M156GWFA-R0, ensuring easy integration into existing designs.
Industrial-Grade Durability: Wide operating temperature range (-20°C to 70°C) and 3H anti-glare surface treatment.
Flexible Customization: Support for glass size, interface, brightness adjustments, and custom touch cover logos.
Reliable Supply: No MOQ requirements, 30-day lead time, and backed by a 5-step QC process and 1-year warranty.
Technical Specifications
| Model Number | DWM156GAF3.2 |
|---|---|
| Size | 15.6 inch |
| Resolution | 1920(RGB)*1080 |

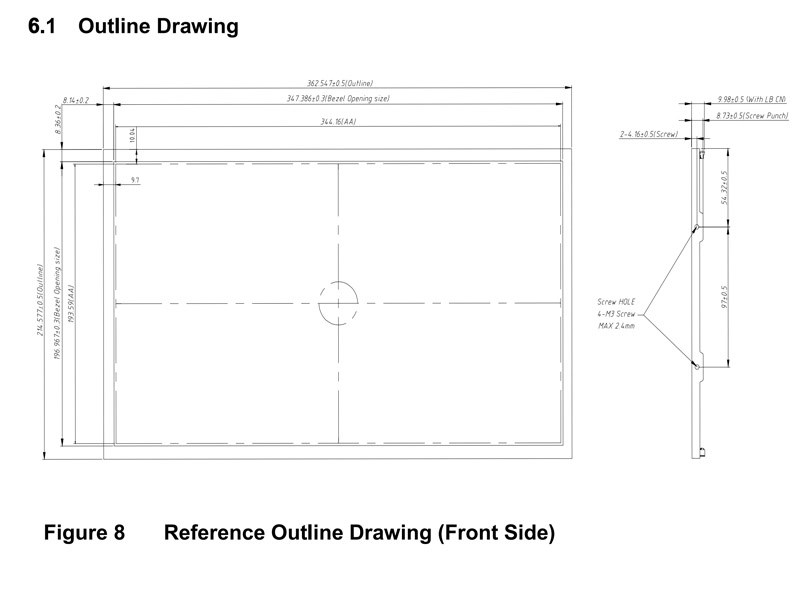

| Outline Dimension | 362.5 (H) × 214.5 (V) × 9.98(D) |
| Active Area | 344.16 (H) × 193.59 (V) |
| Brightness(cd/m²) | 550 |
| Interface | 2ch-LVDS |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen Support | Custom |
| Contrast Ratio | 800:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
15.6" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
