Description
58.4 inch Bar screen monitor main features:
|
![]() |
56.6 inch Streched LCD monitors Specification | ||||||||||||
LCD Display | Screen Size | 58.4 inch | ||||||||||
Active Area | 1428*402(mm) | |||||||||||
Outline | 1471*445*55(mm) | |||||||||||
Screen Type | a-Si TFT-LCD | |||||||||||
Pixel Number | 3840*1080 | |||||||||||
Aspect Ratio | 32:9 | |||||||||||
Luminance | 400 cd/m2 | |||||||||||
Contrast Ratio | 2000:1 | |||||||||||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |||||||||||
Color Depth | 1.07B 68% NTSC | |||||||||||
Response | 8 (Typ.)(G to G) ms | |||||||||||
Pixel Pitch | 0.372*0.372(mm) | |||||||||||
Mainboard | CPU | 9U13 | ||||||||||
Ram | – | |||||||||||
Flash | – | |||||||||||
O/S | – | |||||||||||
Interface | Audio/RJ45/HDMI/USB*2/TF/DC IN | |||||||||||
Machine | Appearance and Structure | Sheet Metal | ||||||||||
Color | Black | |||||||||||
Peripheral | WIFI/Speaker*2 | |||||||||||
Power supply | AC100~230V | |||||||||||
Power consumption | ≦60W | |||||||||||
Operating Temperature | 0℃~50℃ | |||||||||||
Storage Temperature | -20℃~60℃ | |||||||||||
Installation method | Wall hanging | |||||||||||
Net weight | 25Kg | |||||||||||
Corton size | 1575*165*560 | |||||||||||
Number of boxes | 1PCS/Corton | |||||||||||
Corton weight | 28Kg | |||||||||||

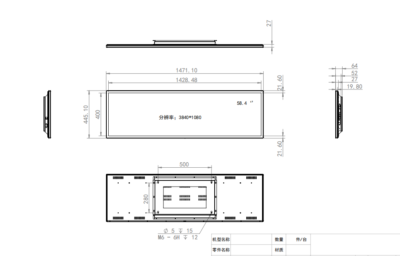

Drawing and photo | ![]() |
