7 Inch High Brightness MIPI Display Description
This 7 inch high-resolution industrial display module is engineered for demanding outdoor environments. Featuring 1000 nits high brightness, 1200×1920 resolution, and a wide operating temperature range (-20°C to 70°C), it ensures excellent visibility and stable performance under sunlight and harsh conditions.
Designed with a MIPI interface, this display delivers fast data transmission and seamless integration into advanced embedded systems.
Why Choose This Display?
Compared with standard LCD modules, this model stands out with:
Superior sunlight readability
Higher pixel density for premium UI experience
Better adaptability to harsh environments
Industrial-grade reliability for long lifecycle projects

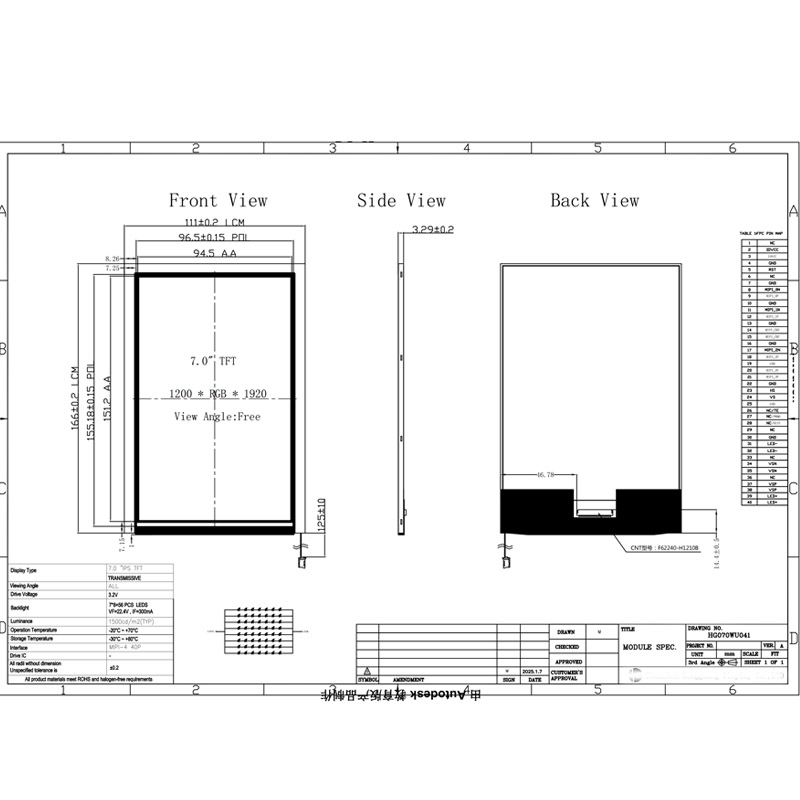

7 inch bar lcd Specifications
| Model Number | HG070WU041 |
|---|---|
| Size | 7 inch |
| Resolution | 1200*1920 |
| Outline Dimension | 111.0*166.0*3.29 |
| Active Area | 94.5*151.2 |
| Brightness(cd/m²) | 1000 |
| Interface | MIPI |
| View Direction | IPS |
| Operating Temperature | -20~80 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen Support | Without(customization available) |
| Contrast Ratio | 1200:1 |
| Power Supply | 21.7V |
| Display Type | Color LCD |
7" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
