Description
7 inch high brightness LCD display
This 7 inch LCD display features a resolution of 1024×600 and a high brightness of 1000 nits, making it clearly visible even under direct sunlight. Designed with an LVDS interface and wide operating temperature range from -30°C to 80°C, this display is highly suitable for automotive, industrial, and outdoor applications.
With a private mold design, the module supports customization to meet specific project requirements, ensuring flexibility and reliability in harsh environments.
7 inch LCD Display Key Features:
High Brightness 1000nits
Excellent sunlight readability for outdoor environments
Wide Temperature Range (-30°C to 80°C)
Stable performance in extreme weather conditions
LVDS Interface
Reliable and widely compatible signal transmission
7 Inch Compact Size
Ideal for embedded systems and space-limited applications
Custom Design (Private Mold)
Flexible customization for structure and interface

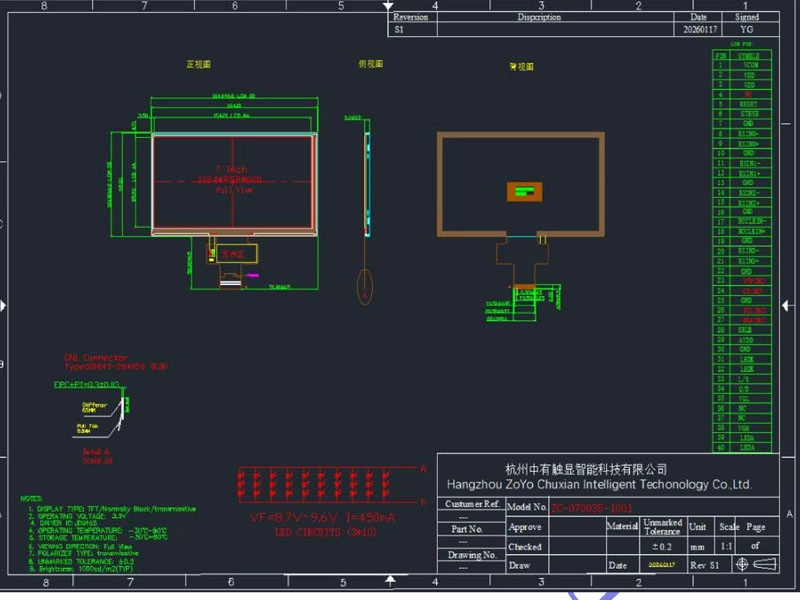

7 Inch LCD Display Specifications
| Model Number | ZC-070035-1001 |
|---|---|
| Size | 7.0 inch |
| Resolution | 1024*600 |
| Outline Dimension | 164.9*100*5.2 |
| Active Area | 150.6*143.2 |
| Brightness(cd/m²) | 1000 |
| Interface | LVDS |
| View Direction | IPS |
| Operating Temperature | -30~80 |
| Storage Temperature | -30~80 |
| LED Lifetime | 20000 |
| Touchscreen Support | Without |
| Contrast Ratio | 1500:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
7" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
