7 Inch MIPI In-Cell Touch Display | 720x1280 LCD Module for Smart Devices

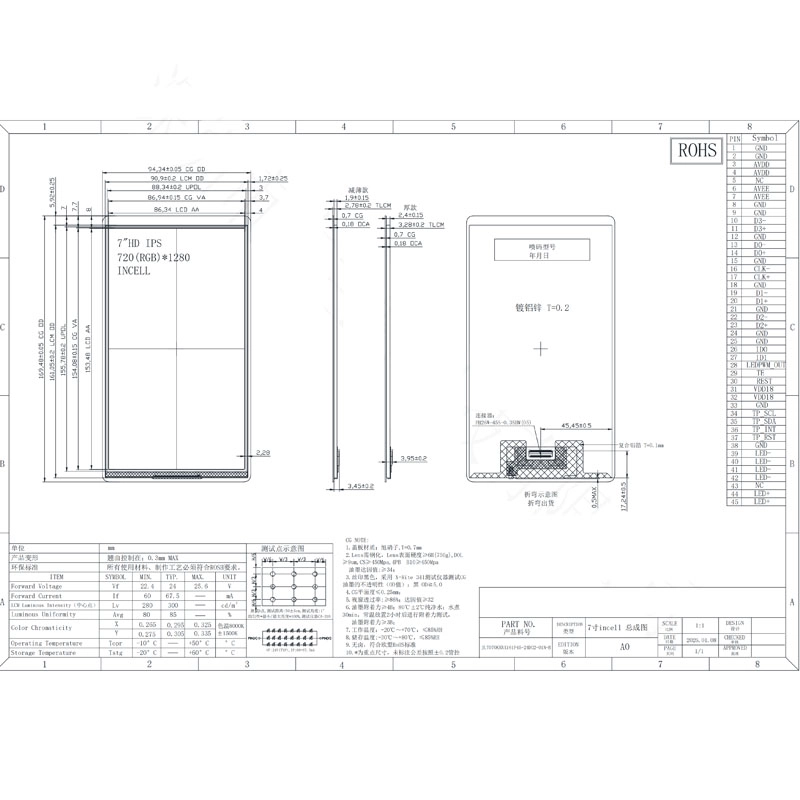

Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 720 × 1280 canvas before committing to the enclosure.

For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

Start with repeated power cycles, then test the intended UI through the finished cover. Use the listed −10 °C to +50 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. For the listed capacitive touch, verify the host driver and test edge taps with the final cover and the way operators will actually use it.

Use the full display part number and revision from the unit label and the corresponding drawing. Include the drawing revision, flex or connector version and any touch or cover option in the quote. Give us the sample quantity, production quantity and required date so we can confirm the configuration and lead time.
