Description

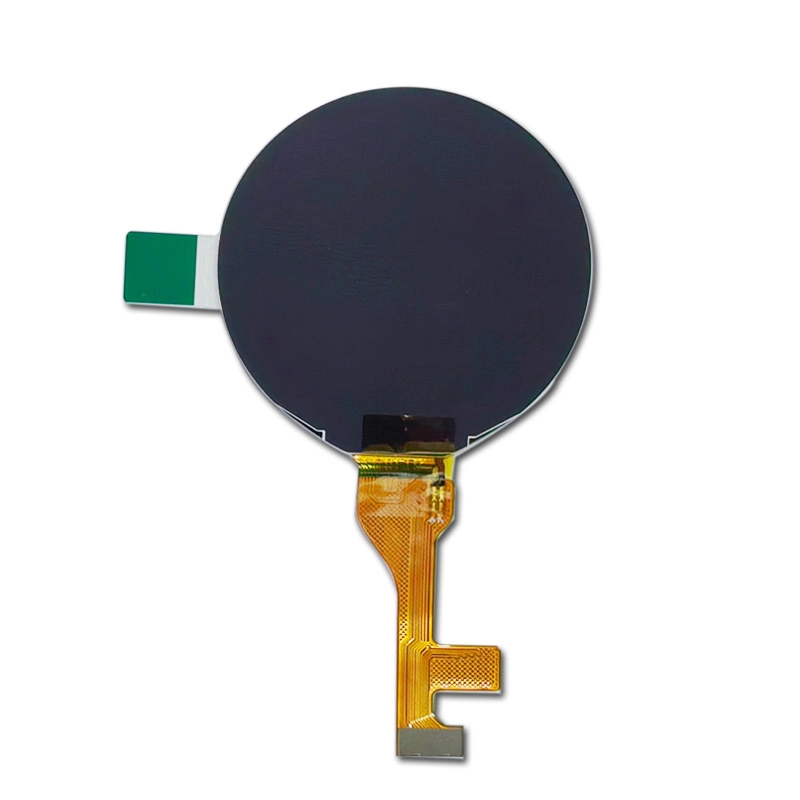

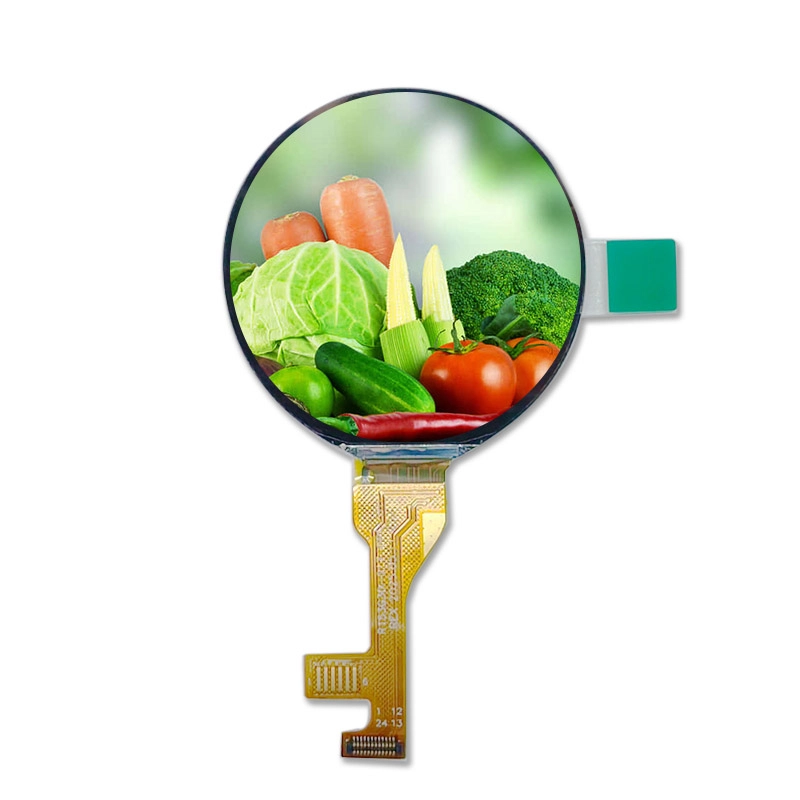

1.53 inch Circular Tft Screen Description
1.53 inch circular TFT screen with IPS wide viewing angle, featuring excellent display performance. It is suitable for consumer electronics, such as knob screens, data monitoring, etc.
15-year LCD factory direct sales. We have extensive experience in R&D and manufacturing of small-size, medium and large-size LCD screens. With reasonable prices, a one-year warranty, and professional R&D capabilities to solve technical issues.
1.53" LCD Display Specifications
| Model Number | R153G3D-003 |
|---|---|
| Size | 1.53 |
| Resolution | 366*366 |
| Outline Dimension | 40.47*41.87*1.56 |
| Active Area | 38.16*38.16 |
| Brightness(cd/m²) | 300 |
| Interface | SPI |
| View Direction | IPS |
| Operating Temperature | -20~60 |
| Storage Temperature | -20~70 |
| LED Lifetime | 20000 |
| Touchscreen Support | No |
| Contrast Ratio | 500:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
3.5" Round Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
DS20302 FAQ
Will my dial and its labels fit inside the visible circle of DS20302?
Use the 1.53-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Get the native pixel layout first, then try your dial, long labels and controls with the mask applied at that layout before committing to the enclosure.
How do I avoid a rotated or shifted image when bringing up DS20302?
For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.
Is DS20302 a better fit than a rectangular screen behind a round bezel?
Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.
What should I test on DS20302 after installing its front cover?
Check that the artwork and bezel remain concentric, the outer text stays visible and the flex is clear of the mount. The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote.
What should a repeat order for DS20302 reference?
Send us the approved module and bezel drawings, flex position and any touch or cover version. Save the orientation and initialization settings alongside the sample revision and quote reference.
