Description

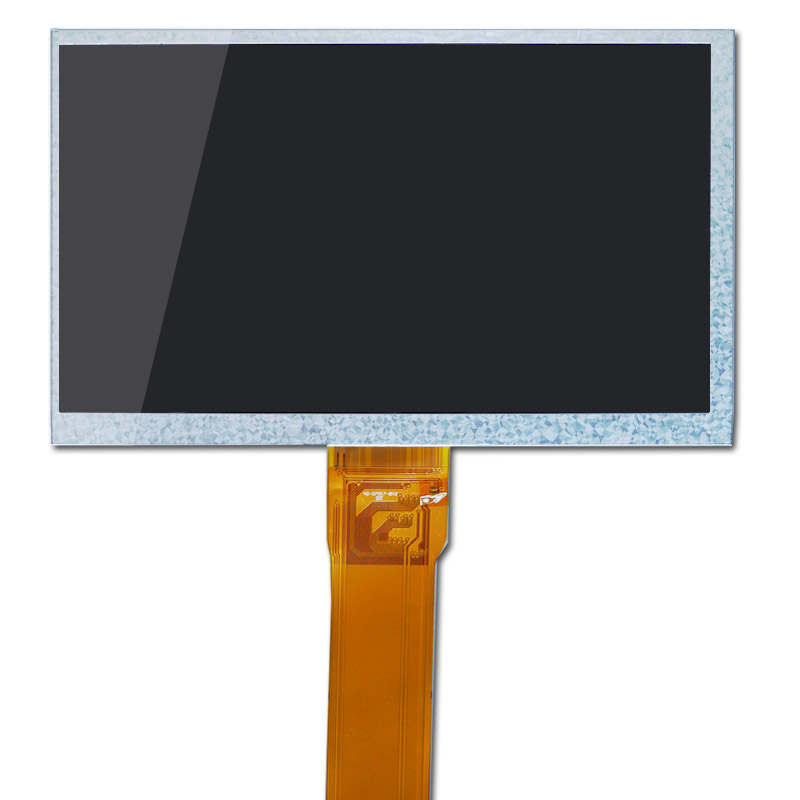

7″ Sunlight Readable Display Features

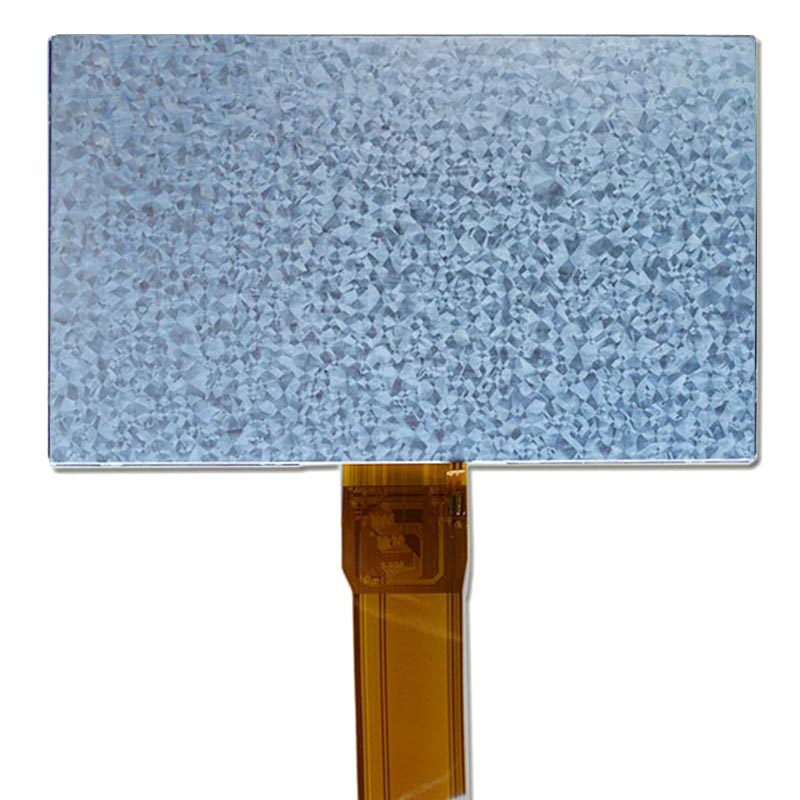

This 7 inch high bright display features an a-Si TFT active matrix driver element, offering an 800×480 (RGB) resolution in a Normally White, Transmissive display mode. With a dot pitch of 0.0642mm (width) × 0.1790mm (height), the active display area measures 154.08mm (width) × 85.92mm (height), enclosed within a module size of 164.9mm (width) × 100.0mm (height) × 5.7mm (depth). The surface is treated with anti-glare coating for improved visibility, and the color arrangement follows an RGB-stripe pattern. It utilizes a digital interface for connectivity. Power consumption includes 2.322W (typical) for the backlight and 0.226W (typical) for the panel itself, with a typical weight of 150g.
Our strengths
With over 10 years of experience as a dedicated LCD manufacturer, we specialize in delivering tailored TFT solutions for diverse applications—from industrial equipment to consumer electronics.
We understand the needs of small and medium-sized businesses. That’s why we offer low minimum order quantities (MOQs) and seamless support for small batches, empowering you to prototype, test, and launch products without excessive inventory risks.
Whether you need a cost-effective entry-level display or a high-performance premium screen, our team designs customized TFT solutions to match your budge
Advanced testing equipment (AOI, high-temperature aging chambers, etc.) ensures reliability in extreme environments.
A team of seasoned quality supervisors oversees production to meet international standards.
Backed by a 1-year quality warranty, we guarantee long-term performance and peace of mind.
7″ TFT-LCD Product Specifications
| Model Number | ZDX070TNCP50-DB10 |
|---|---|
| Size | 7 |
| Resolution | 800*480 |
| Outline Dimension | 164.9*100.0*5.7 |
| Active Area | 154.08*85.92 |
| Brightness(cd/m²) | 1000 |
| Interface | RGB |
| View Direction | 70/70/50/70 |
| Operating Temperature | -30~85 |
| Storage Temperature | -30~85 |
| LED Lifetime | 20000 |
| Touchscreen Support | Without |
| Contrast Ratio | 500:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
7″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
