Description

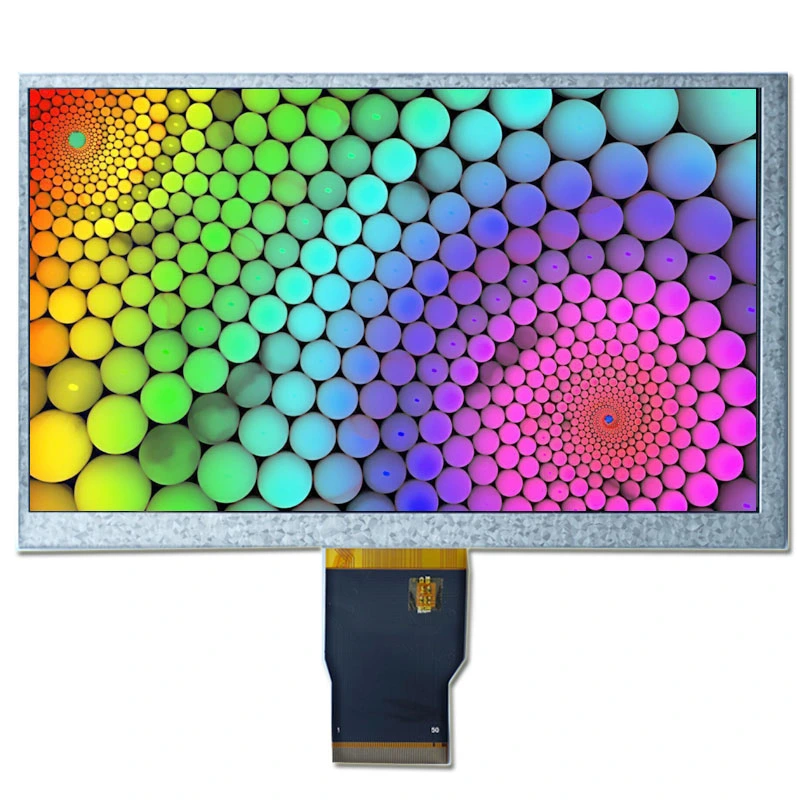

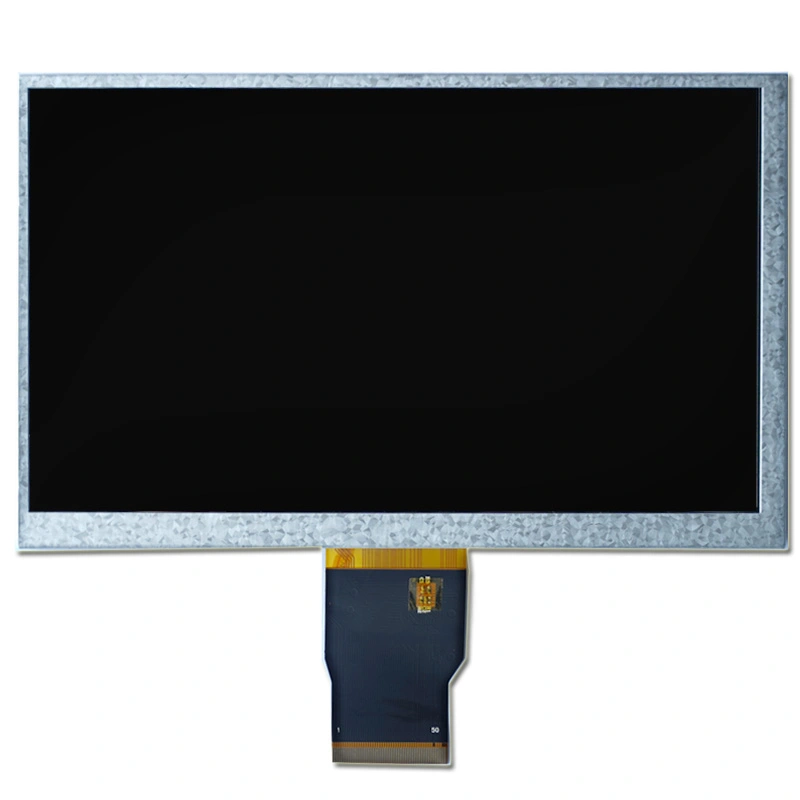

7 inch TFT Screen Description
With an 800×480 resolution, 1000-nit brightness, and a wide operating temperature range of -30℃~85℃, this display delivers reliable performance in demanding environments. Engineered for industrial control, medical, and military applications, it combines:
✅ Extreme Temperature Stability: Operates flawlessly in arctic cold or high-heat conditions, ideal for outdoor machinery or field equipment.
✅ High-Brightness Visibility: 1000-nit luminance ensures clear viewing in direct sunlight or brightly lit industrial settings.
✅ Rugged Durability: Meets rigorous standards for shock resistance and electromagnetic interference (EMI) protection.
Quality Assurance:
Every unit undergoes 72-hour burn-in testing and thermal cycling to ensure industrial-grade reliability. Direct from the R&D team—competitive pricing without compromising on performance.
Below the basic parameters for it, Tailor the interface (LVDS/RGB/MIPI), brightness, dimensions, and touch solutions (capacitive/resistive) to seamlessly integrate into your device—engineered for hassle-free system integration.
7" TFT Display Specifications
| Model Number | ZDX070TNCP50-DB10 |
|---|---|
| Size | 7 |
| Resolution | 800*480 |
| Outline Dimension | 164.9*100.0*5.7 |
| Active Area | 154.08*85.92 |
| Brightness(cd/m²) | 1000 |
| Interface | Digital |
| View Direction | 6 |
| Operating Temperature | -30~85 |
| Storage Temperature | -30~85 |
| LED Lifetime | 20000 |
| Touchscreen Support | No |
| Contrast Ratio | 1000:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
7" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
