Description

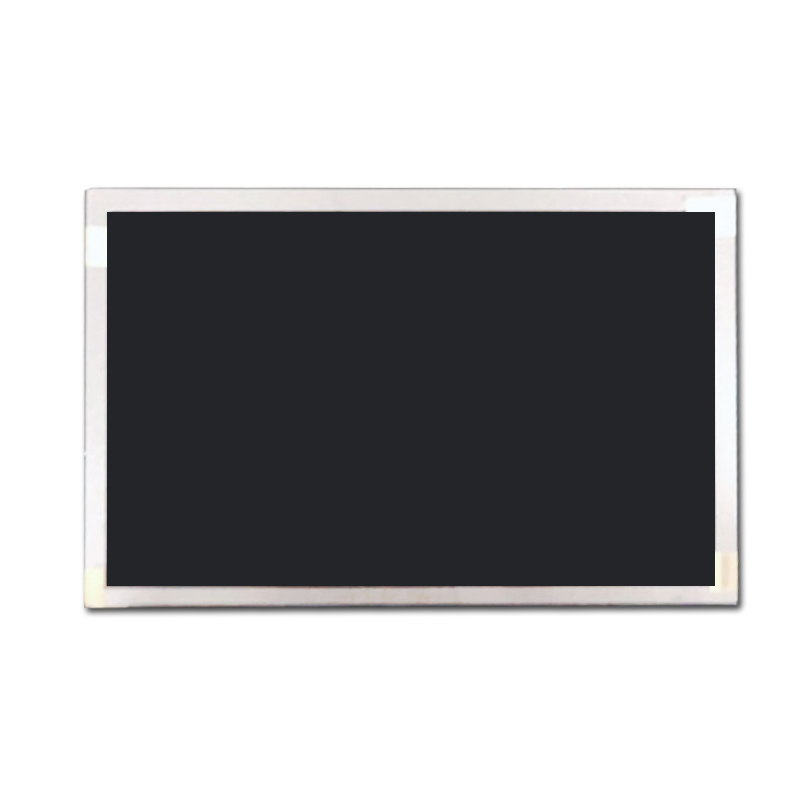

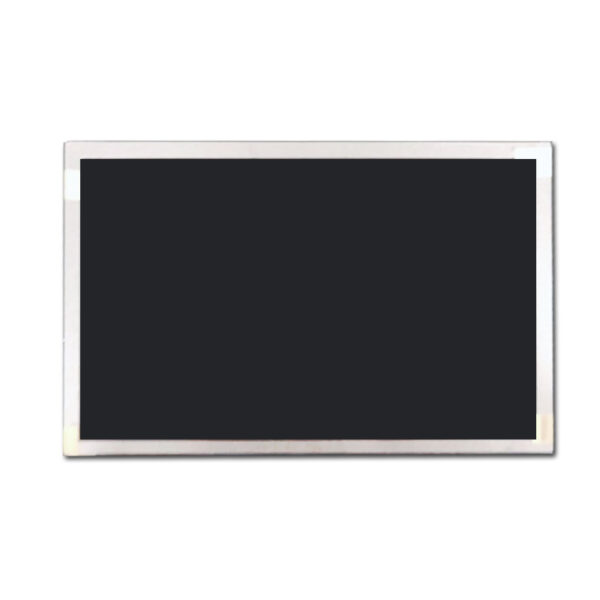

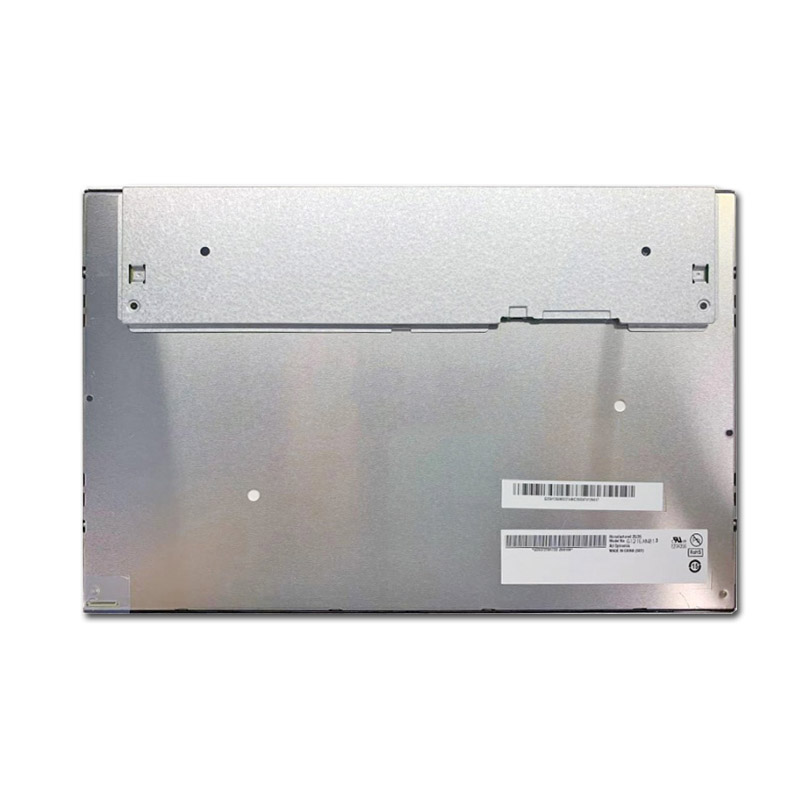

AU Optronics G121EAN01.3 High Bright Display General Desription
The AU Optronics G121EAN01.3 is a 12.1-inch a-Si TFT-LCD LCM with 1280×800 WXGA resolution (124 PPI, RGB vertical stripe) featuring a 261.12×163.2mm active area and 283×185.1×9.9mm outline size, protected by antiglare 3H hard coating. It delivers 1500 cd/m² (Typ.) brightness, 1000:1 (Typ.) contrast, 89/89/89/89 wide viewing angles, 25ms (Tr+Td) response, and AHVA normally black transmissive mode with 262K/16.2M colors (99% sRGB). Equipped with a 50K-hour WLED backlight (no driver), it weighs max 490g, supports 60Hz refresh, uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C, ideal for industrial outdoor high-brightness applications.
Buy it now!
1-1500 cd/m² (Typ.) high brightness, -30°C to 85°C wide temperature range, making it ideal for rugged industrial equipment, outdoor signage, and mobile applications.
2-Reliable inventory and on-time delivery to support your production schedules,Expert technical guidance and customized solutions to meet your specific requirements
G121EAN01.3 Product Specifications
| Diagonal Size | 12.1″(Diagonal) |
|---|---|
| Pixel Number | 1280×800 Pixels |
| Luminance | 1500 |
| Module Size | 283(W)×185.1(H) ×9.9(D) |
| Active Area | 261.12(W)×163.2(H) |
| Viewing Direction | ALL |
| View Angle(U/D/R/L) | 89/89/89/89 |
| Interface | LVDS |
| Contrast Ratio | 800 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
