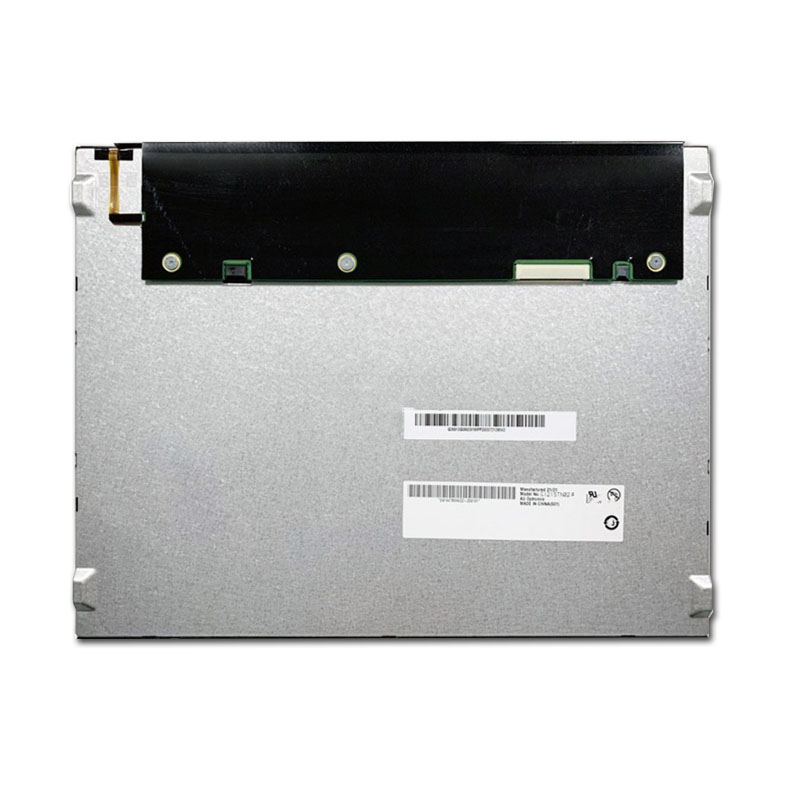

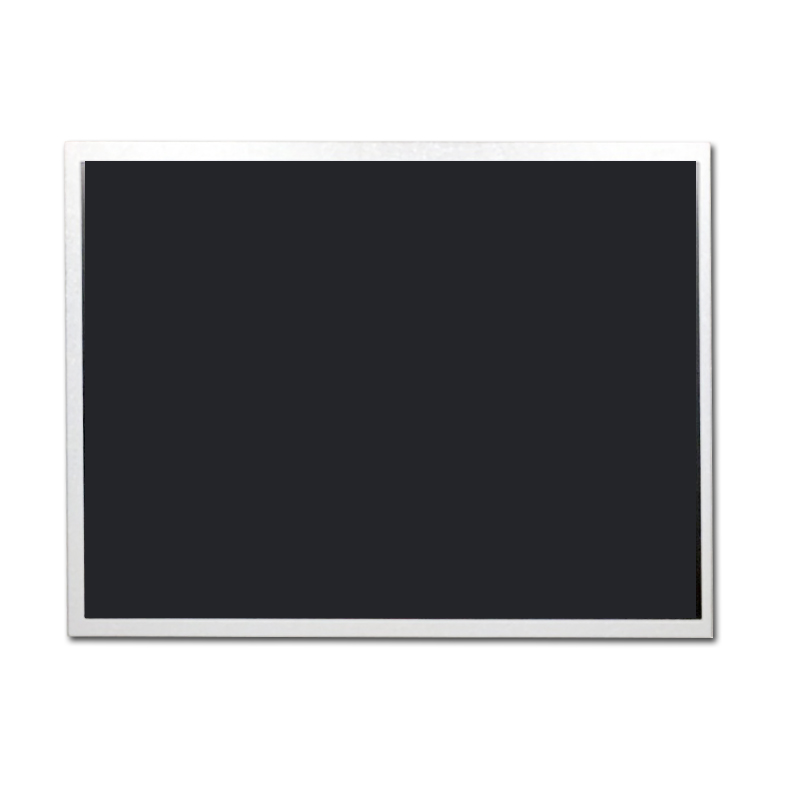

AU Optronics G121STN02.0 Displays General Desription
The AU Optronics G121STN02.0 is a 12.1-inch a-Si TFT-LCD LCM with 800×600 SVGA resolution (82 PPI) and RGB vertical stripe pixel format. It features a 246×184.5mm active area, 260.5×203×9mm outline size, and antiglare 3H hard-coated surface. With 500 cd/m² (Typ.) brightness, 800:1 (Typ.) contrast ratio, and 80/80/65/75 (Typ.) viewing angles (CR≥10), this TN normally white transmissive panel offers 25/10ms (Tr/Td, Typ.) response time and supports 262K/16.7M colors (53% NTSC). Equipped with a 50K-hour WLED backlight (with driver) and 60Hz refresh rate (up to 240Hz via MEMC), it weighs up to 600g, uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C for rugged industrial applications without a touch screen.
Highlight G121STN02.0 Display’s Features
The AUO G121STN02.0 delivers premium quality and robust stability, built with durable components and rigorous testing for consistent performance in harsh conditions. Its anti-glare hard-coated surface and long-life WLED backlight ensure reliability in 24/7 operations.
With a -30°C to 85°C temperature range, it thrives in extreme environments. Ideal for industrial automation, vehicle-mounted systems, military equipment, and medical devices, where durability and precision are critical.
G121STN02.0 Product Specifications
| Diagonal Size | 12.1″(Diagonal) |
|---|---|
| Pixel Number | 800×600 Pixels |
| Luminance | 500 |
| Module Size | 260.5(W)×203(H) ×9(D) |
| Active Area | 246(W)×184.5(H) |
| Viewing Direction | 6 O’CLOCK |
| View Angle(U/D/R/L) | 80/80/65/75 |
| Interface | LVDS |
| Contrast Ratio | 800 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
