Description

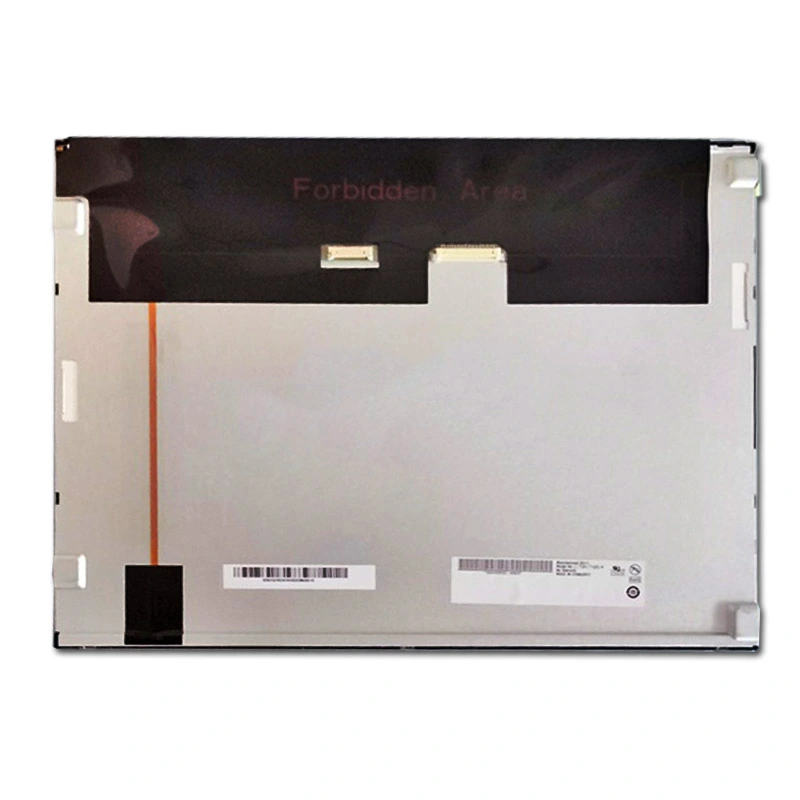

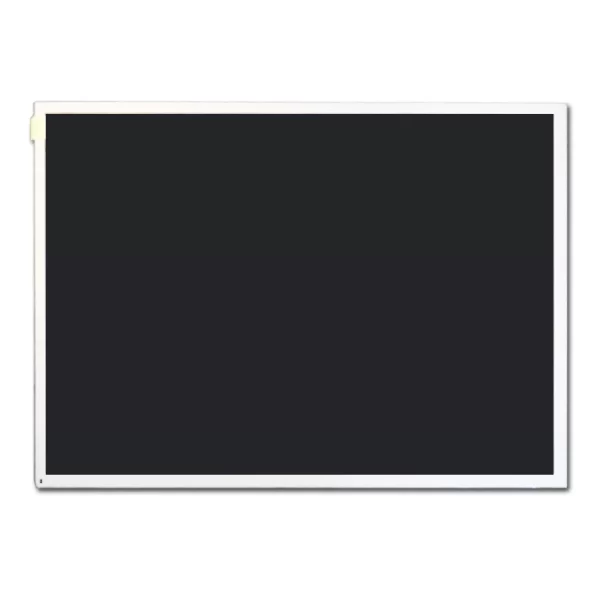

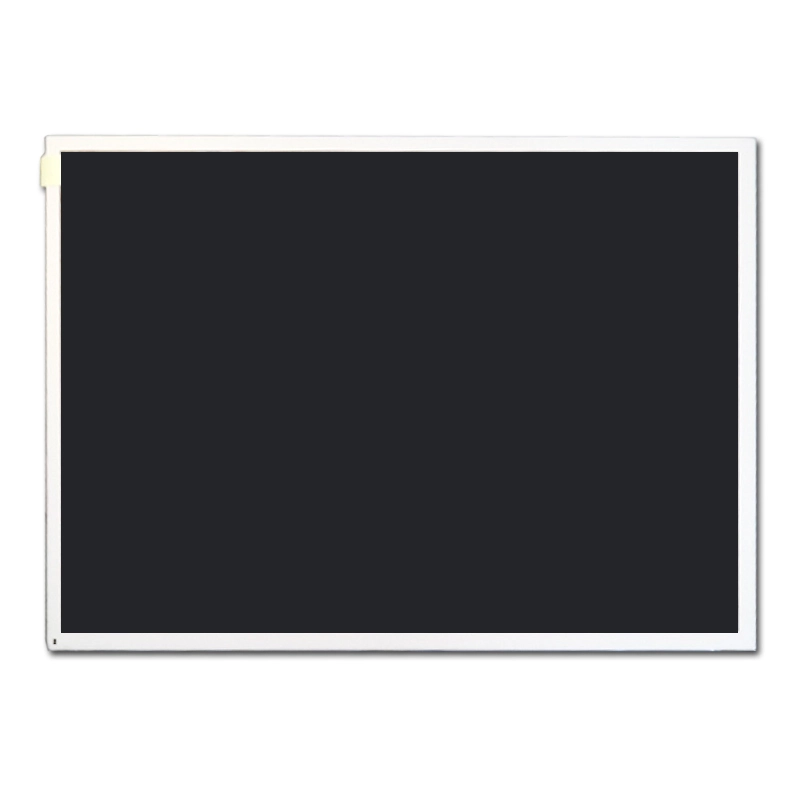

AUO G150XTN06.A High Bright LCD General Desription
AUO’s G150XTN06.A is a 15.0" a-Si TFT-LCD LCM with XGA resolution (1024×768, 85PPI, RGB vertical stripe), featuring a 304.128×228.096 mm active area, 311.9×236.85 mm bezel opening, and 326.5×253.5×10 mm outline with 3H hard coating and antireflection treatment. It delivers 1800 cd/m² typical brightness, 800:1 contrast ratio (TM), fast 5.7/2.3 ms response times, and 80°/80°/70°/80° viewing angles in TN normally white transmissive mode, supporting 262K/16.2M colors (60% NTSC). Powered by a 50K-hour WLED backlight (with driver), targets industrial outdoor high-brightness applications, and supports 60Hz refresh rate. No touchscreen, LVDS (1ch, 6/8-bit, 20-pin) interface, 3.3V supply, and operates/stores at -30~70°C.
Main Features
1-15-inch large screen delivers an excellent viewing experience, suitable for various scenarios, from industrial control to commercial displays.
2-Manufactured by AUO—a leading global manufacturer, ensuring superior stability and reliability even in demanding environments.
3-Backed by a professional technical team with over 10 years of factory experience, we overcome technical barriers and provide comprehensive after-sales support for worry-free use.
G150XTN06.A Product Specifications
| Diagonal Size | 15"(Diagonal) |
|---|---|
| Pixel Number | 1024×768 Pixels |
| Luminance | 1800 |
| Module Size | 326.5(W)×253.5(H) ×10(D) |
| Active Area | 304.128(W)×228.096(H) |
| Viewing Direction | 12 O'CLOCK |
| View Angle(U/D/R/L) | 80/80/70/80 |
| Interface | LVDS |
| Contrast Ratio | 800 |
| Operating Temperature | -30~70℃ |
| Storage Temperature | -30~70℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
