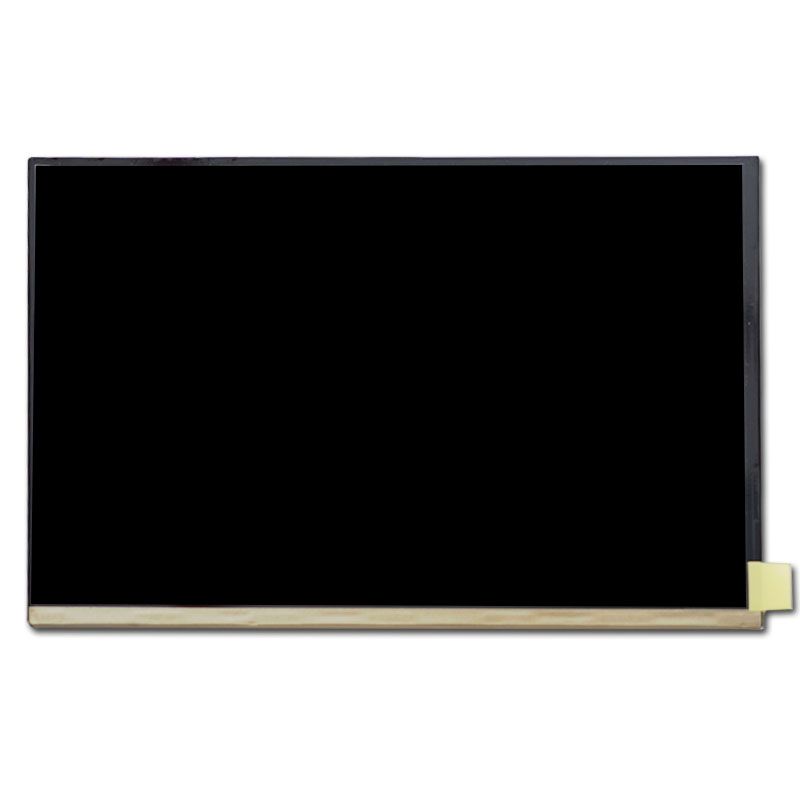

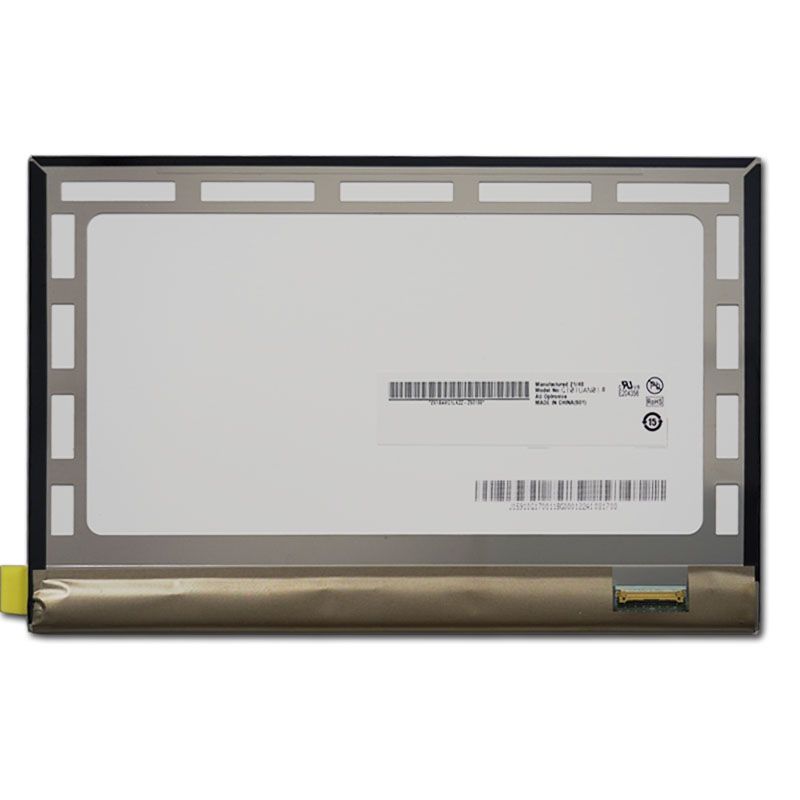

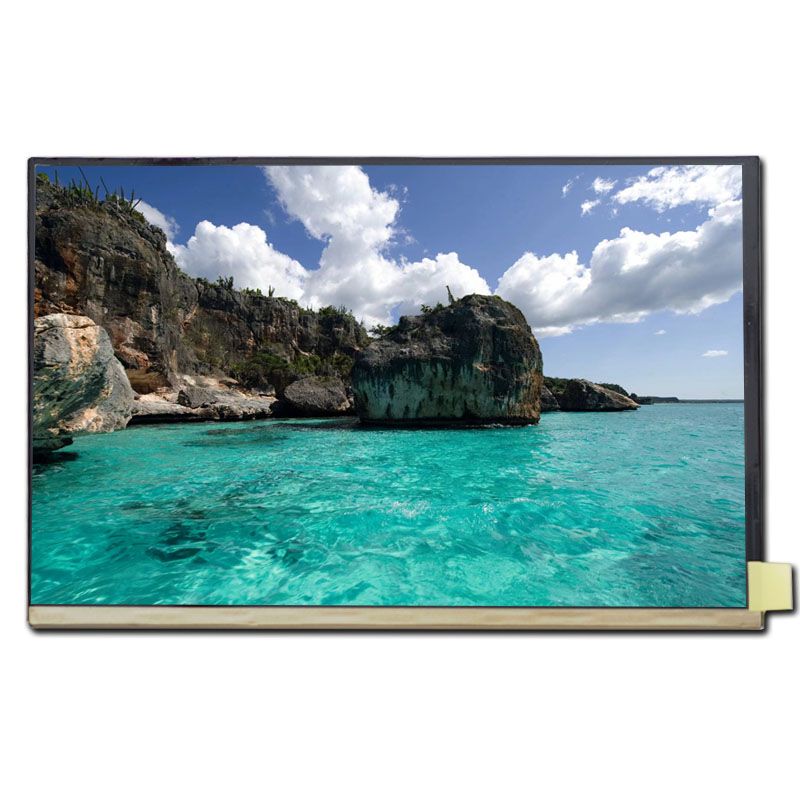

G101UAN01.0 AUO 10.1 inch TFT LCD Screen 1920*1200

Description

G101UAN01.0 General Description

G101UAN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel and LED backlight system. The screen format is intended to support the 16:10 WUXGA, 1920(H) x 1200(V) screen and 16.7M colors(RGB 6-bits + Hi-FRC) with LED backlight driving circuit. All input signals are eDP 1.2 interface compatible.

101UAN01.0 AUO TFT LCD Screen Characteristics

The 10.1 inch AUO TFT LCD Screen features an active area of 216.81 mm (H) x 135.5 mm (V) with a resolution of 1920 x 1200 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.11292 mm. Utilizing AHVA (Advanced Hyper-Viewing Angle) technology in a normally black display mode, it operates at a nominal input voltage of 3.3V and has a maximum power consumption of 2.37W. The module weighs up to 140 grams and has physical dimensions of 228.02 mm x 148.12 mm x 5.35 mm. It employs an eDP 1.2 electrical interface and features a low-reflection (LR) surface treatment, supporting 16.7 million colors (RGB 6-bit + Hi-FRC). Designed for operation within a temperature range of -10°C to +60°C for both front and rear surfaces, and capable of storage from -20°C to +60°C, the module is also RoHS compliant, ensuring adherence to environmental standards.

10.1″ TFT-LCD Product Specifications

Model Number	G101UAN01.0
Size	10.1
Resolution	1920*1200
Outline Dimension	227.72*147.8*5.35
Active Area	216.81*135.5
Brightness(cd/m²)	380
Interface	eDP
View Direction	ALL
Operating Temperature	-10~60
Storage Temperature	-20~70
LED Lifetime	30000
Touchscreen Support	Without
Contrast Ratio	800:1
Power Supply	3.3V
Display Type	Color LCD

10.1″ TFT LCD Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

LCD Interface Customization

Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
