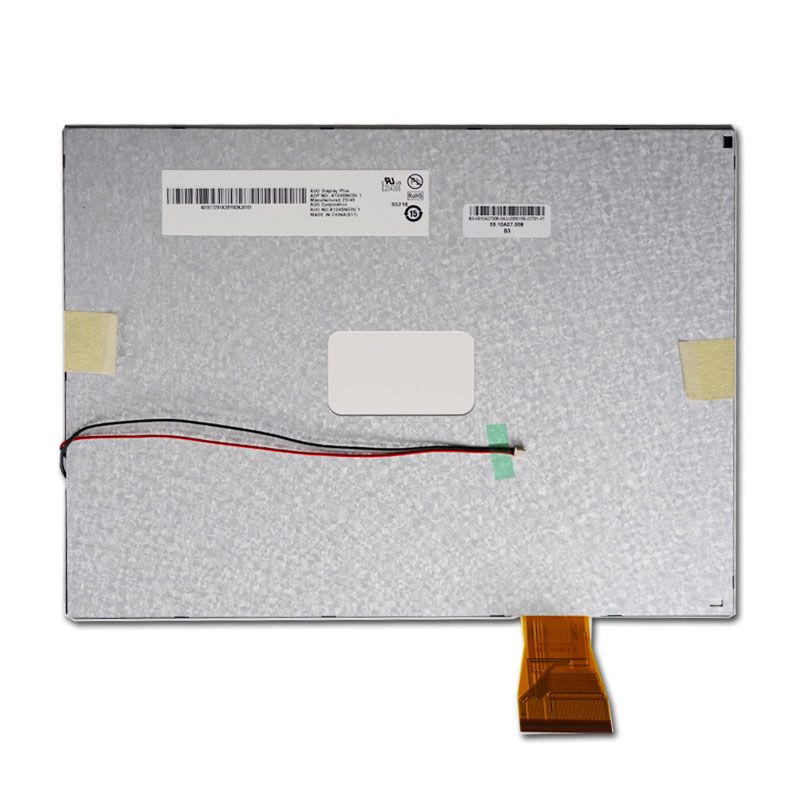

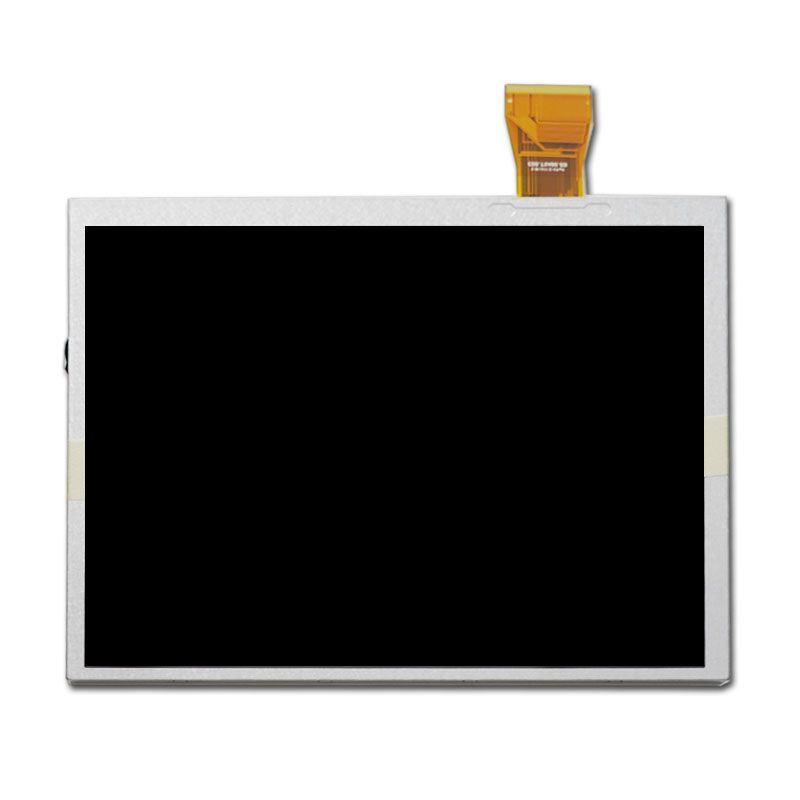

G104SN03 V1 AUO 10.4 inch TFT Display Screen 800*600

SKU: DS50012

Size:	10.4 inch
Resolution:	800*600
Interface:	LVDS
Brightness(cd/m²):	230
Operating Temperature:	-20℃~70℃
Touchscreen Support:	NO
Display Type:	Color LCD

Resources: G104SN03 V1

G104SN03 V1 from Brand AUO, Resolution 800*600, Operating Temperature from -20~70℃,1 channel LVDS Interface, Stable supply, Original A grade quality

Description

G104SN03 V1 General Description

G104SN03 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system . The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.8M (RGB8-bits) or 262K colors (RGB 6-bits). All input signals are LVDS interface compatible. Inverter card of backlight is not included.

G104SN03 V1 AUO TFT Display Screen Characteristics

The 10.4 inch AUO TFT Display Screen features an active area of 211.2 mm (H) x 158.4 mm (V) and a resolution of 800 x 600 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.264 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and offers typical power consumption of 4.26W at IRCFL=5.0mA and 3.56W at IRCFL=3.8mA, specifically under an all-black pattern. The module weighs approximately 300 grams and has physical dimensions of 236.0 mm (H) x 174.3 mm (V) x 5.6 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 16.8 million colors (8-bit) and 262K colors (6-bit). Designed to operate within a temperature range of -20°C to +70°C and suitable for storage from -30°C to +80°C, the module is also RoHS compliant, ensuring adherence to environmental standards.

10.4" TFT-LCD Product Specifications

Model Number	G104SN03 V1
Size	10.4
Resolution	800*600
Outline Dimension	236174.36
Active Area	211.2*158.4
Brightness(cd/m²)	230
Interface	LVDS
View Direction	TN
Operating Temperature	-20~70
Storage Temperature	-30~80
LED Lifetime	30000
Touchscreen Support	Without
Contrast Ratio	500:1
Power Supply	3.3V
Display Type	Color LCD

10.4" TFT LCD Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

PCB Modifications

Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

DS50012 FAQ

Can I use DS50012 if my original label has a different model suffix?

Use G104SN03 V1 as the listed panel reference, then compare the full part number and revision on the label. Send us photos of the old label and connector side. Compare the mounting holes, thickness, connector location and visible opening on both drawings before ordering.

Can I keep my existing LVDS cable and controller with DS50012?

For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

Will replacing my current panel with DS50012 require a change to the equipment software?

Try your service menus and startup graphics on a 800 × 600 canvas before approving the replacement. Compare the actual native timing and display orientation with the old module. Price any cable, firmware and mounting changes before committing to a substitute.

How do I check whether DS50012 will look right behind the original cover?

Use the listed 230 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test cold boot, restart, brightness control and a full diagnostic image. Use the listed −20 °C to +70 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. Check that the cable clears the frame with the equipment closed.

What should I order if my equipment uses touch with the LCD that DS50012 would replace?

The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote. Give us the equipment model, approved panel and touch revisions where applicable, quantity and required date. Ask for the quoted revision and how a substitution would be handled.

Additional information

Size:	10.4 inch
Resolution:	800*600
Interface:	LVDS
Brightness(cd/m²):	230
Operating Temperature:	-20℃~70℃
Touchscreen Support:	NO
Display Type:	Color LCD
