Description

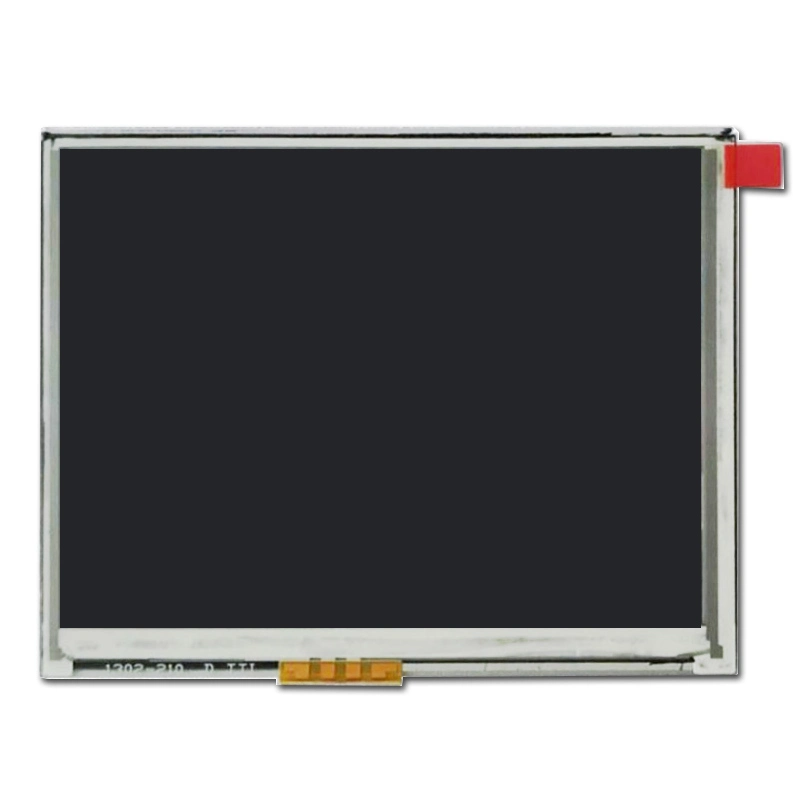

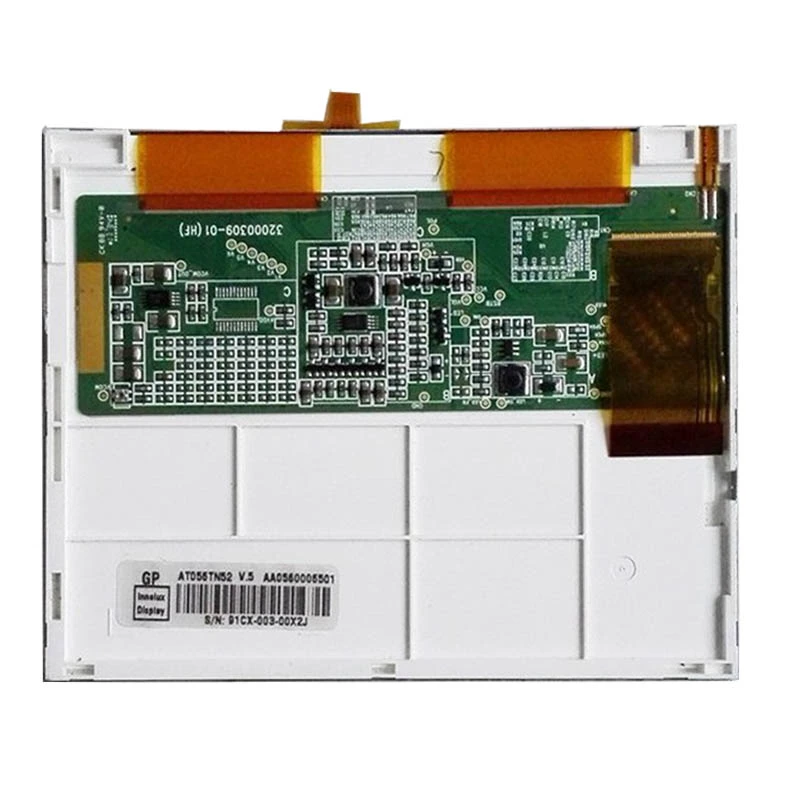

Innolux AT056TN52 V.5 General Desription
Innolux AT056TN52 V.5 is a 5.6″ a-Si TFT-LCD LCM with 640(RGB)×480 VGA resolution, 112.896(W)×84.672(H) mm active area, and 126.5(W)×100(H)×8.6(D) mm outline. Features include 280 cd/m² luminance, 60/60/45/60 (CR≥10) viewing angle (best at 6 o’clock), 16.7M color depth (50% NTSC). 60Hz refresh rate (supports 120Hz/240Hz via embedded MEMC), 3H hard coating, 500:1 typ. contrast ratio, TN normally white transmissive mode, 10/15ms typ. response time, WLED backlight (50K hours, with driver), 4-wire resistive touchscreen, parallel RGB (1 ch, 8-bit) + SPI signal (40-pin FPC), 3.3V supply, -20~70°C operating temp., -30~80°C storage temp., and is used for industrial VOIP phones.
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
5.6″ Product Specifications
| Diagonal Size | 5.6 inch |
|---|---|
| Pixel Number | 640×480 |
| Luminance | 280 |
| Module Size | 126.5×100×8.6 |
| Active Area | 112.896×84.672 |
| Viewing Direction | IPS |
| View Angle(U/D/R/L) | 60/60/45/60 |
| Interface | RGB+SPI |
| Contrast Ratio | 500 : 1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux AT056TN52 V.5 Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
