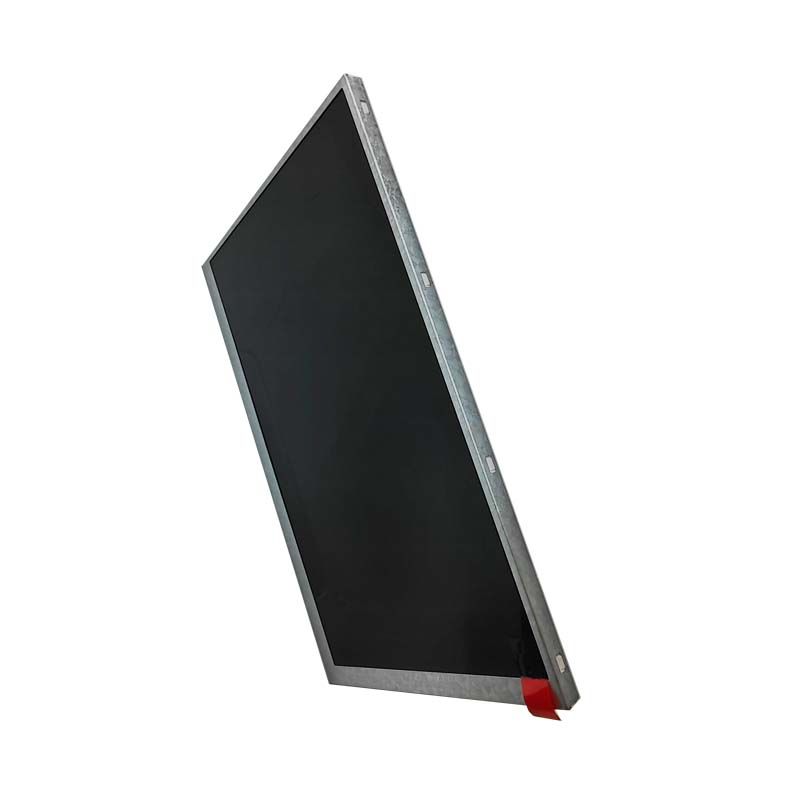

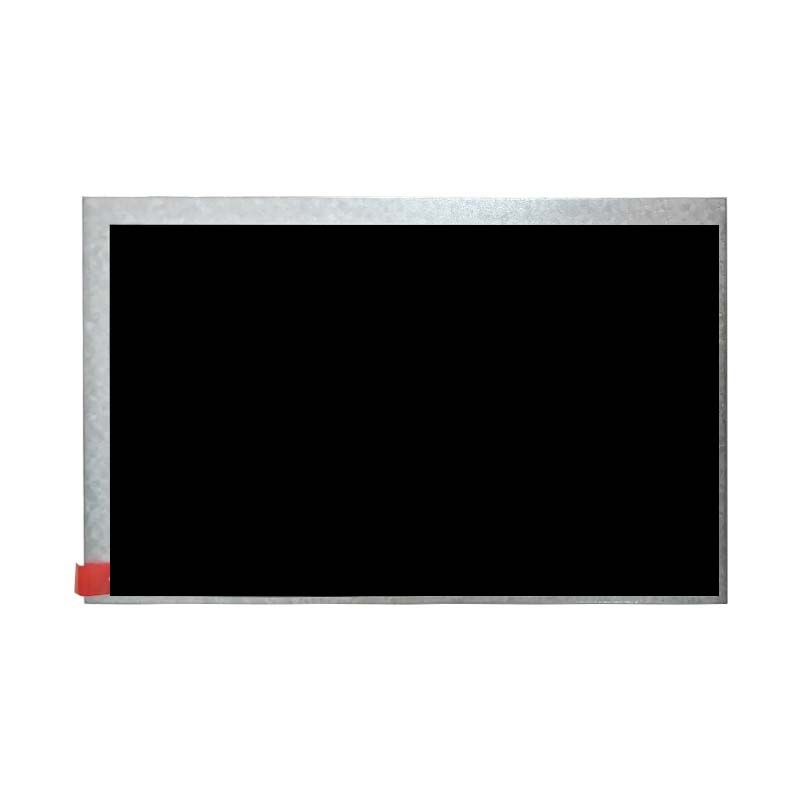

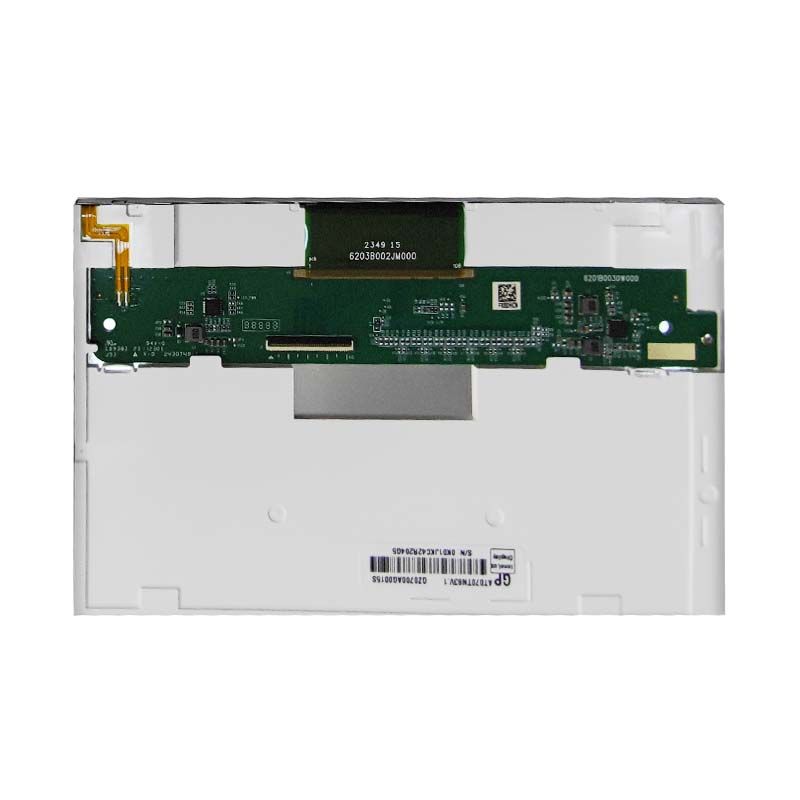

Innolux AT070TN83 V.1 7″ 800×480 TN LCD 400cd/m², TTL Interface, -20°C~70°C

SKU: DS50211
Size:

Resolution:

Interface:

Operating Temperature:

-20℃~70℃

Brightness(cd/m²):

400

Touchscreen Support:

Display Type:

Resources:

Innolux AT070TN83 V.1 Wide-Temperature 7″ Screen: 400cd/m² Brightness, 20K-Hour Lifespan, Ideal for Harsh Environments.

$99.00
Request Volume Pricing







    Description

    AT070TN83 V.1 General Desription

    The Innolux AT070TN83 V.1 is a 7-inch TN color LCD engineered for precision-critical environments. With an industry-leading 1000:1 contrast ratio and 400 cd/m² brightness, it delivers razor-sharp text and graphics even in low-light conditions. Its robust TTL interface ensures stable signal transmission for industrial-grade applications, while the 3.3V low-power design minimizes energy consumption. Built to endure extreme temperatures (-20°C to 70°C) and compact dimensions (165×104×5.8mm), this non-touch display boasts a 20,000-hour LED lifespan. The 70/70/50/70 viewing angle and 800×480 resolution make it ideal for multi-orientation installations requiring reliability and clarity.



    Application & Performanc

    Perfect for medical imaging systems, laboratory analyzers, and industrial HMIs, the AT070TN83 V.1 excels in environments demanding visual precision. The 1000:1 contrast ratio enhances grayscale differentiation for X-ray monitors or semiconductor inspection tools. Its TTL compatibility suits legacy factory robots, while the wide temperature range supports cold-chain logistics displays and desert solar inverters. The slim 5.8mm profile integrates seamlessly into portable diagnostic devices, smart home control panels, and aviation maintenance terminals. With 400 cd/m² brightness, it remains readable in dimly lit operating rooms or dusty warehouse dashboards, offering a future-proof solution for automation and IoT edge devices.

    7.0″ Product Specifications

    Diagonal Size 7.0″
    Pixel Number 800×480
    Luminance 400
    Module Size 165×104×5.8
    Active Area 152.4×91.44
    Viewing Direction TN
    View Angle(U/D/R/L) 70/70/50/70
    Interface TTL
    Contrast Ratio 1000:1
    Operating Temperature -20~70℃
    Storage Temperature -30~80℃
    LED Lifetime 20000
    Touchscreen Support Without
    Power Supply 3.3v
    Display Type Color TFT

    Innolux LCD Display Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -20℃~70℃

    Brightness(cd/m²):

    400

    Touchscreen Support:

    Display Type:

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
