Description

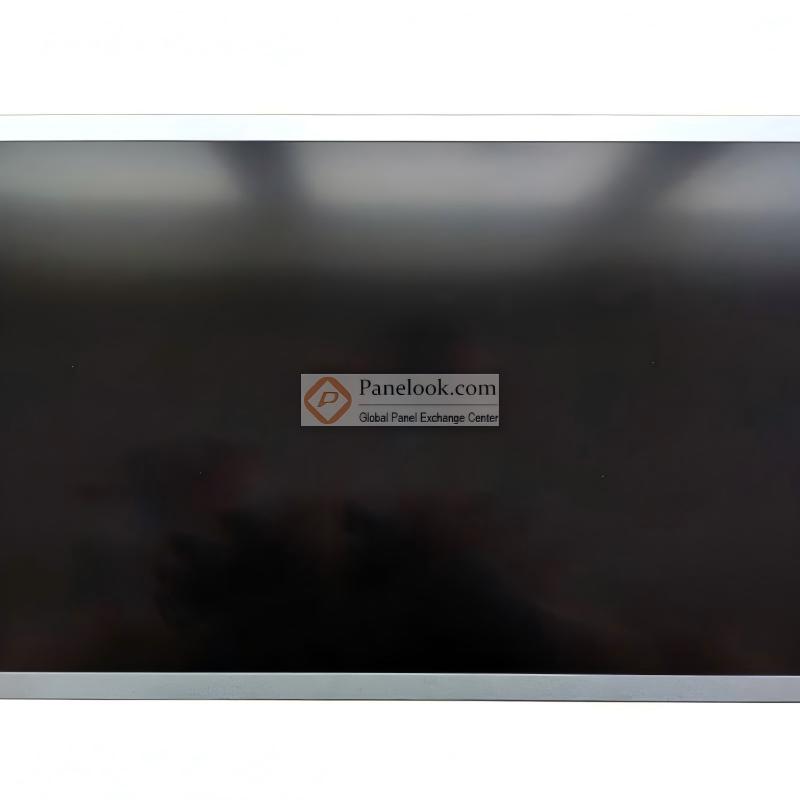

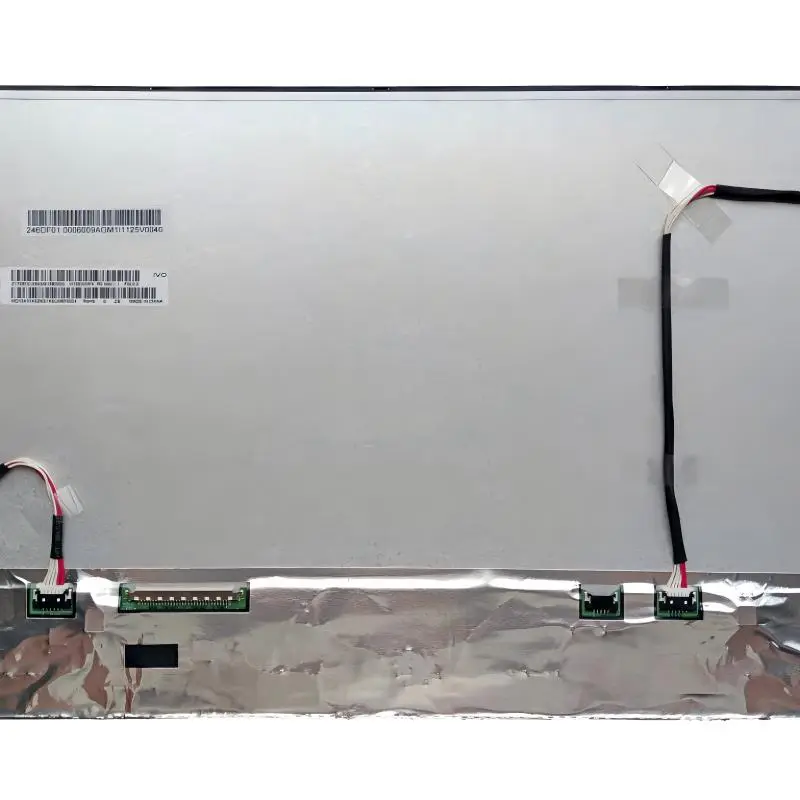

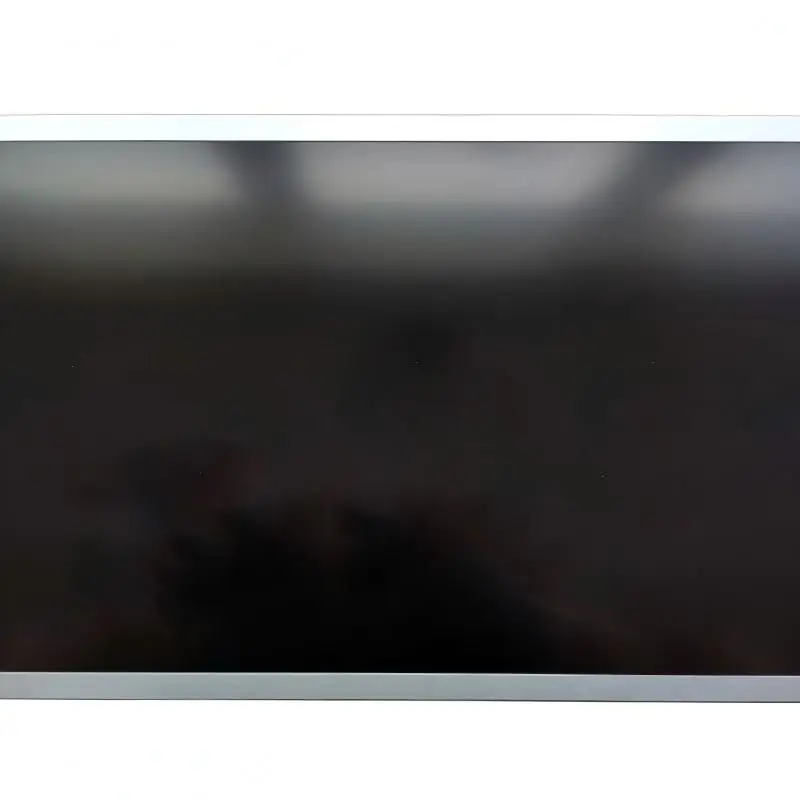

15.6 inch industrial LCD display features:
Ultra-high brightness wide temperature, designed for harsh environments. It offers an ultra-high brightness of 1000 cd/m², ensuring a clear and sharp view even outdoors in direct sunlight. The operating and storage temperature range is -30°C to 85°C, providing excellent wide temperature tolerance.
15.6 inch industrial LCD screen applications:
It is widely used in demanding environments such as industrial automation, vehicle navigation, outdoor advertising, and commercial displays. With its high brightness, anti-glare, wide temperature, and long lifespan, it is ideal for applications where reliability and visibility are critical, including vehicle central control systems, power monitoring, outdoor terminals, and cold chain equipment.
13.3" Product Specifications
| Diagonal size 11.8 | 15.6 inches |
|---|---|
| Number of pixels | 1920（RGB）x1080 |
| Brightness | 1000 cd/m² |
| Module size | 363.8 (west) × 215.9 (high) × 10.82 (d) mm |
| Active area | 344.16 (west) × 193.59 (h) mm |
| Look directions | Symmetry |
| Viewing Angle (U/D/R/L) | 85/85/85/85 |
| interface | LVDS |
| Contrast | 1000:1 |
| Operating temperature | -30 ~ 85 °C |
| Storage temperature | -30 ~ 85 °C |
| LED Lifespan | 30000 |
| Power supply | 3.3V |
| Touch screen support | Nope |
| Display type | a-Si TFT-LCD |
IVO LCD display custom solutions
Optimize your wired solution
Adjust the cable's length, position, and pin configuration, or add additional connectors for enhanced functionality. Opt for customized wired solutions designed to simplify connections and ensure secure and reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
