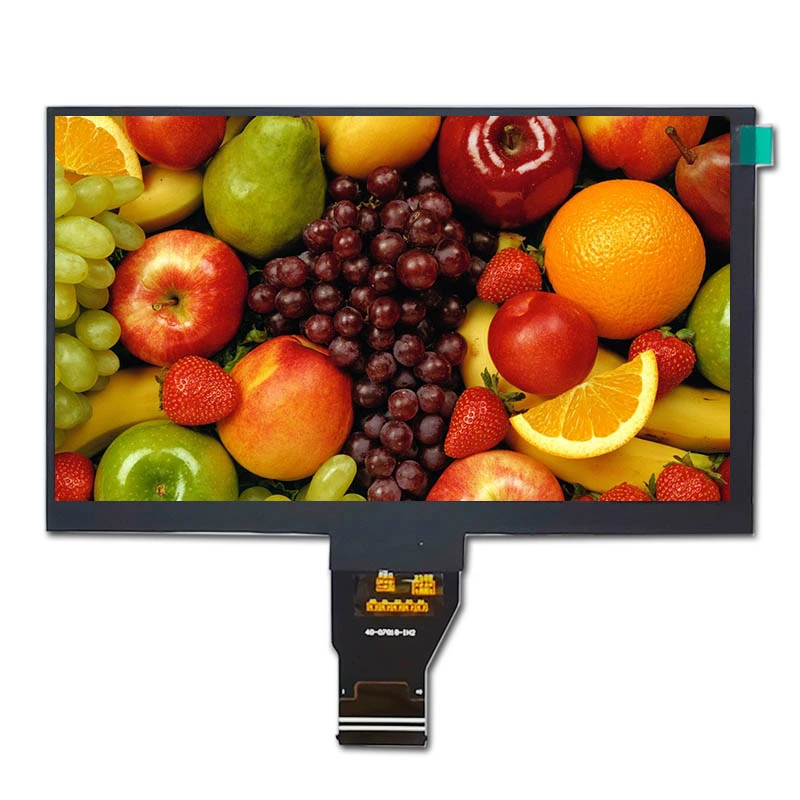

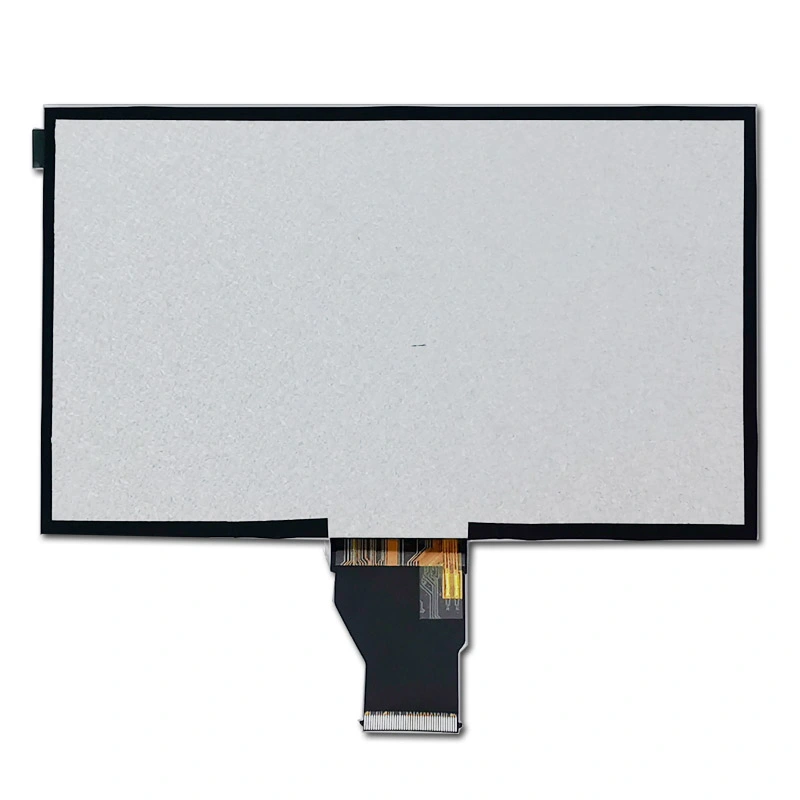

Sunlight Readable LCD Display 7" Description
This 7-inch landscape screen features a resolution of 1024x600, outdoor high-brightness display at 700-1000 nits, and wide-temperature operation from -30°C to 85°C. As our ODM product, it uses Innolux glass, ensuring excellent operational stability and reliability. This display is suitable for four-wheeled and two-wheeled electric vehicles, as well as high-demand industrial control fields.
Our Advantages:
We are a 15-year-old factory specializing in LCD screens, touch screens, and supporting HDMI boards. With an independent R&D team, we provide full-set TFT solutions. Our in-house factory ensures after-sales support, and a rich network of material suppliers enables us to offer comprehensive quotation plans.
7" TFT Display Specifications
| Model Number | 90-07018-IH2 |
|---|---|
| Size | 7 |
| Resolution | 1024*600 |
| Outline Dimension | 164.9*100*5.35 |
| Active Area | 154.21*85.92 |
| Brightness(cd/m²) | 700 |
| Interface | LVDS |
| View Direction | ALL |
| Operating Temperature | -30~85 |
| Storage Temperature | -30~85 |
| LED Lifetime | 20000 |
| Touchscreen Support | No |
| Contrast Ratio | 1000:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
7" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
