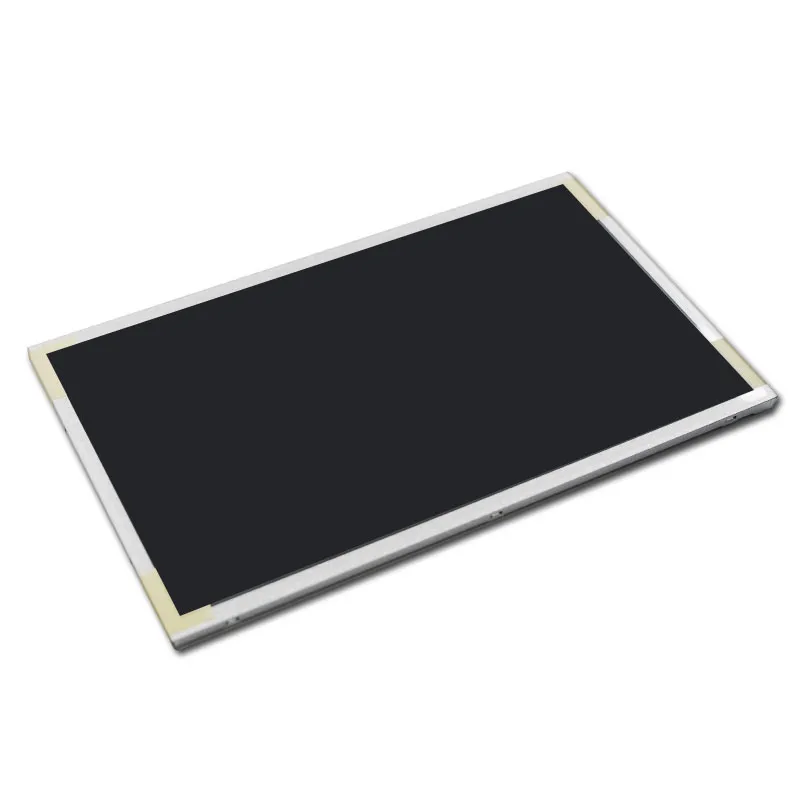

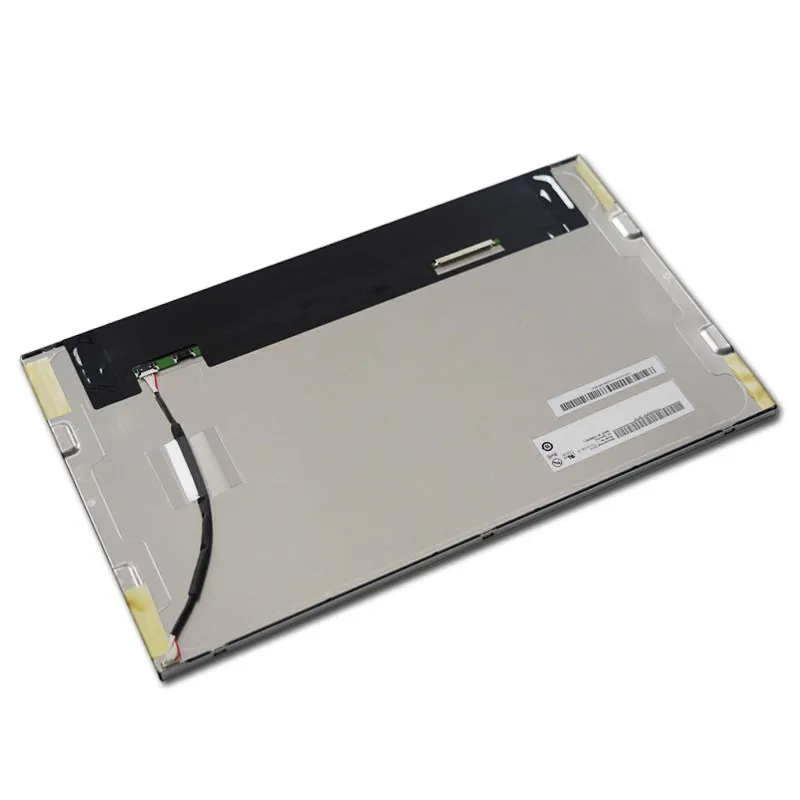

15.6 inch G156HAN02.302 AUO LCD Panels 1920*1080 Luminance 500cd/m²

COD: DS50036
Dimensioni:

Numero di modello

G156HAN02.302

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

500

Temperatura di esercizio:

-20℃~70℃

Supporto per touchscreen:

Tipo di display:

Resources:

15.6 inch G156HAN02.302 AUO LCD Panels  offering Resolution 1920*1080  Brightness 500cd/m²  Operating Temperature from -20~70℃ Interface LVDS 30 pin  Stable supply  Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    AUO G156HAN02.302 Key Features

    The 15.6-inch AUO G156HAN02.302 LCD Panel is a high-quality display solution designed for a variety of applications, featuring a resolution of 1920 x 1080 pixels that provides stunning Full HD visuals. With a brightness level of 500 cd/m², this panel ensures excellent visibility in various lighting conditions, making it suitable for both indoor and outdoor use. It operates efficiently within a wide temperature range of -20 to 70°C, ensuring reliable performance in challenging environments. The display utilizes a 30-pin LVDS interface, allowing for seamless integration into various systems and enhancing its versatility across multiple applications. As an original A-grade quality product with a stable supply, the G156HAN02.302 is perfect for industrial automation, medical devices, and digital signage, offering durability and long-lasting performance.



    G156HAN02.302 Application

    The 15.6 inch AUO G156HAN02.302 LCD Panel is highly versatile and well-suited for a range of applications across various industries. Its high resolution of 1920 x 1080 pixels and brightness of 500 cd/m² make it ideal for digital signage, where vibrant visuals are essential for engaging customers in retail and public displays. In industrial environments, it can be integrated into control panels and human-machine interfaces (HMIs), providing operators with clear and reliable visual feedback. The panel’s wide operating temperature range of -20 to 70°C ensures dependable performance in harsh conditions, making it suitable for outdoor applications and transportation displays. Additionally, its 30-pin LVDS interface facilitates easy integration into consumer electronics, medical devices, and other electronic systems, ensuring durability and consistent performance in applications that require high-quality display solutions.

    15.6" TFT-LCD Product Specifications

    Numero di modello G156HAN02.302
    Dimensione 15.6
    Risoluzione 1920*1080
    Dimensione del contorno 363.8*215.9*9.3
    Area attiva 344.16*193.59
    Luminosità (cd/m²) 500
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -20~70
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    15.6" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G156HAN02.302 15.6-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G156HAN02.302?

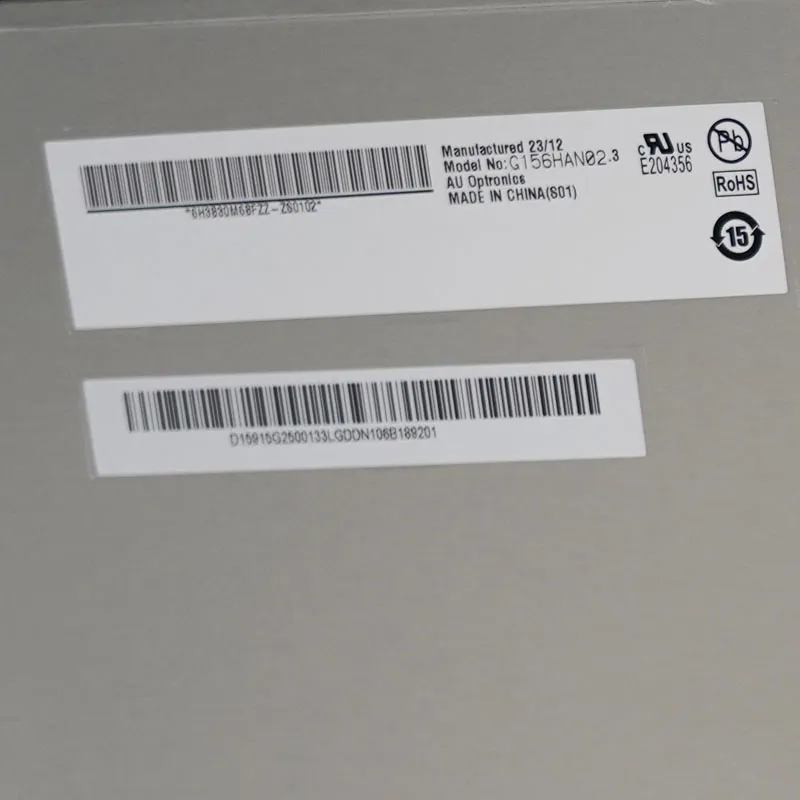

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G156HAN02.302?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G156HAN02.302 compare with the Innolux G156HCE-L01?

    Both catalog listings show 15.6 inches, 1920 × 1080 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −30 °C to +85 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G156HCE-L01

    Is the AUO G156HAN02.302 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G156HAN02.302

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    500

    Temperatura di esercizio:

    -20℃~70℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
