Description

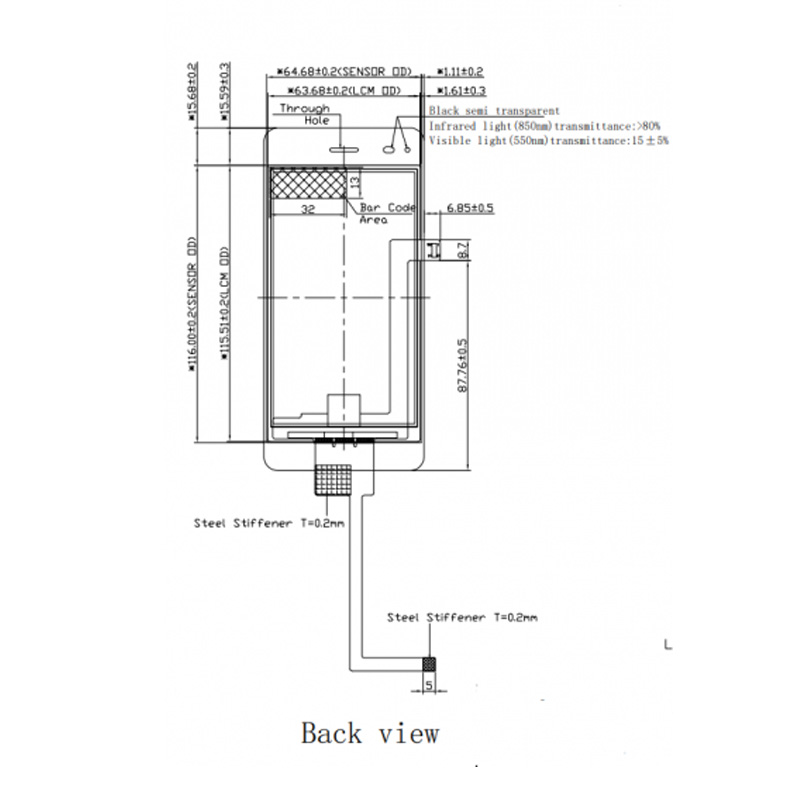

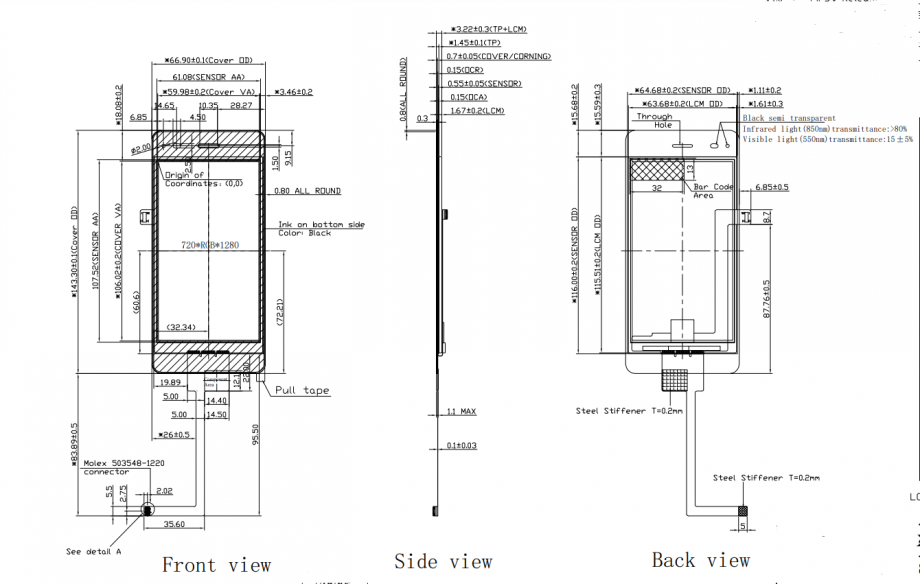

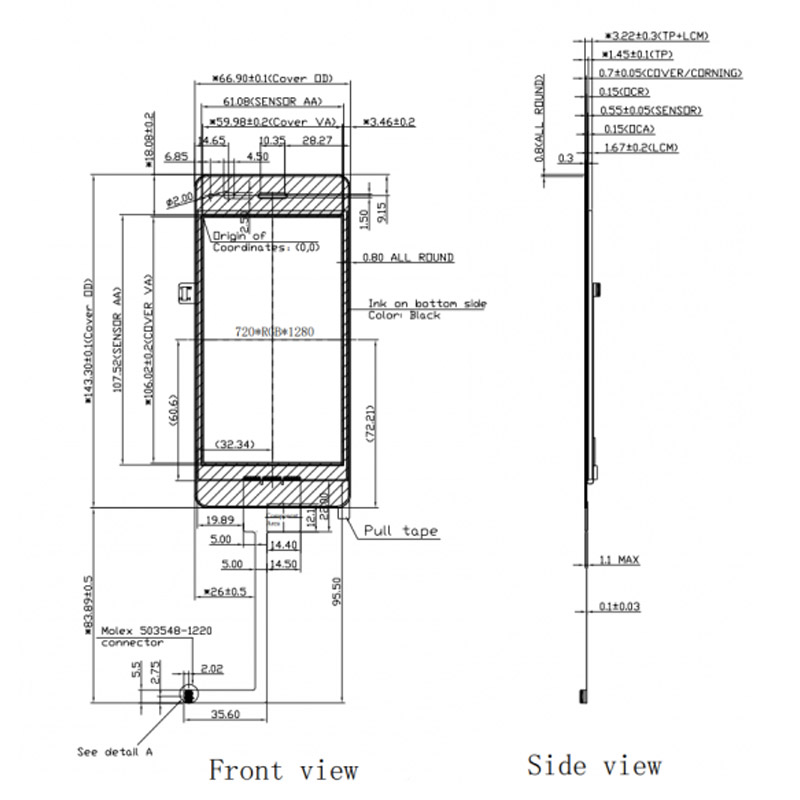

4.8 inch Capacitive Touchscreen:
| Introduce this 4.8 inch Capacitive Touchscreen, supports 5-point multi-touch with touch + gesture operation.it operates reliably within a -20 ~ 70 °C temperature range, withstand diverse environments, suitable for industrial, commercial, or consumer applications. Advanced Features: ✓ Multi-touch capability with fast response and precise positioning Enables smooth interaction with rapid feedback and high-precision touch localization. ✓ Passed rigorous tests for high/low temperature, vibration, and heavy ball drop Proven durability under extreme environmental conditions and mechanical impacts. ✓ 24/7 online technical support from an in-house team, the factory-direct advantage, and worry-free after-sales service Immediate expert assistance, vertically integrated manufacturing, and comprehensive post-sales support. |
| 4.8 inch Capacitive Touchscreen | ||
| Construction | Cover Glass | Thickness: 0.7 mm±0.05mm |
| OCR | Thickness: 0.15mm ± 0.05mm | |
| Sensor | Thickness: 0.7mm ± 0.05mm | |
| Machanical Characteristics | Touch size | 4.8 inch |
| Outer Dimension | 143.3*66.9 mm | |
| View Area | 106.02*59.98 mm | |
| Active Area | 107.52*61.08 mm | |
| TP Thickness | 1.45 mm±0.1 | |
| Number of Touch | 5 | |
| Interface | IIC | |
| Controller | Microchip | |
 |
||
