Description
5 inch In-cell touch display
This high-performance 5-inch TFT LCD module features a state-of-the-art In-cell capacitive touch design, integrating the touch sensor directly into the display for an ultra-slim profile and superior optical clarity. With 720x1440 HD resolution and IPS technology, it delivers vibrant colors and a full viewing angle (80/80/80/80). Engineered for reliability, it operates within -20°C to 70°C, making it perfect for handheld devices, medical monitors, and smart home controllers. No MOQ and full OEM/ODM customization (logo, interface, brightness) supported.
Key Advantages:
In-cell Integrated Touch: Ultra-thin design with higher light transmittance and better touch sensitivity compared to traditional OGS/G+G structures.
HD Portrait Screen: 720x1440 high-density resolution provides crisp visuals for modern UI interfaces.
IPS All-around View: Consistent color and contrast from any angle, essential for handheld and industrial applications.
Industrial Grade Reliability: Wide temperature range (-20~70°C) and long-life backlight ensure stable performance in harsh environments.
Flexible Customization: Direct support for interface conversion, brightness enhancement (up to 1000+ nits), and cover glass branding.
Technical Specifications
| Model Number | ZXYQ050MF025G |
|---|---|
| Size | 5 inch |
| Resolution | 720(RGB)*1440 |

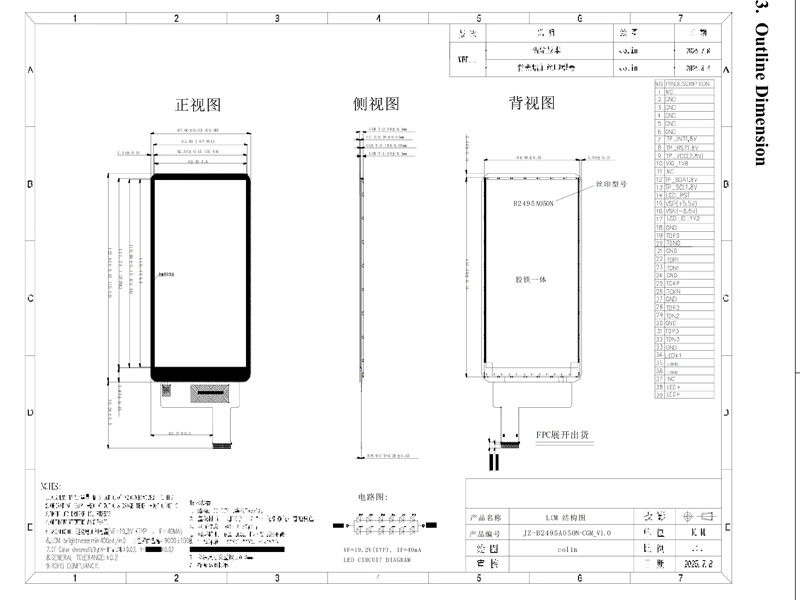

| Outline Dimension | 64.6 (H) × 117.3 (V) × 2.38(D)(with touch cover |
| Active Area | 62.10 (H) × 110.40 (V) |
| Brightness(cd/m²) | 500 |
| Interface | MIPI(4-Lane) |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen Support | Custom |
| Contrast Ratio | 800:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
5" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
