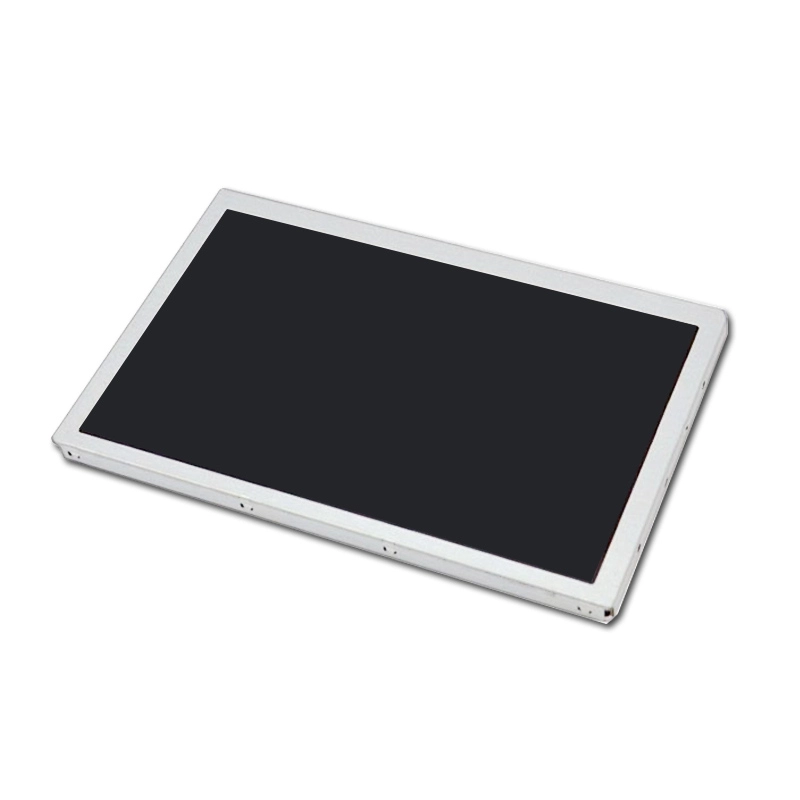

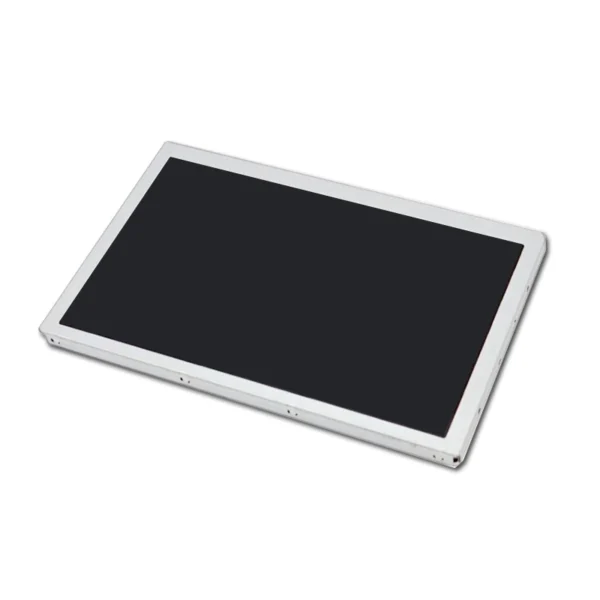

7 inch Sunlight Readable Screen TIANMA P0700WVN1MA00

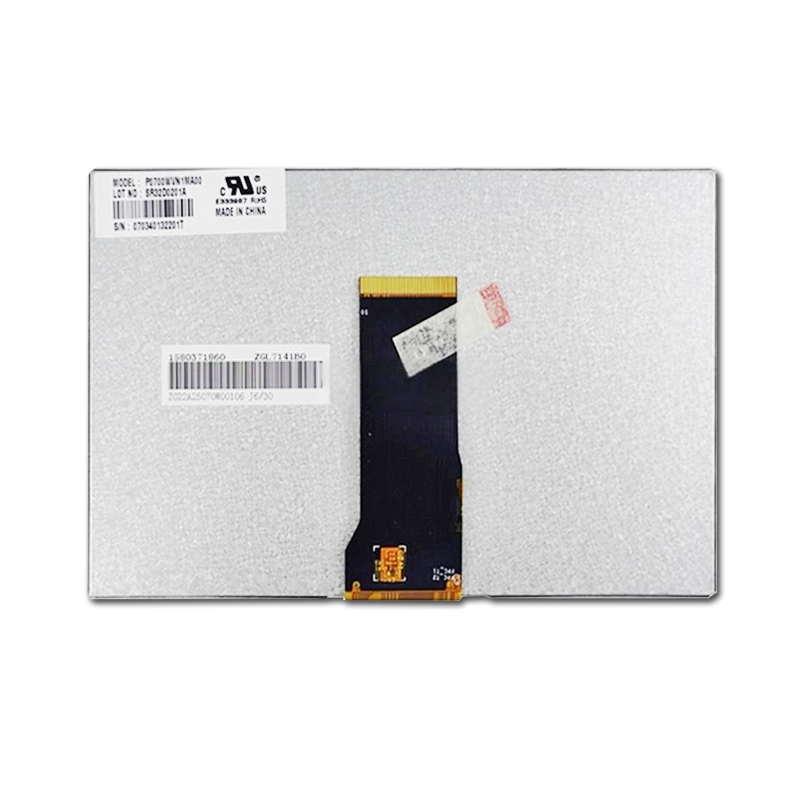

Use P0700WVN1MA00 as the listed panel reference, then compare the full part number and revision on the label. Send us photos of the old label and connector side. Compare the mounting holes, thickness, connector location and visible opening on both drawings before ordering.

For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

Get the native pixel layout first, then try your service menus and startup graphics at that layout before approving the replacement. Compare the actual native timing and display orientation with the old module. Price any cable, firmware and mounting changes before committing to a substitute.

Use the listed 1000 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test cold boot, restart, brightness control and a full diagnostic image. Confirm the operating range for the exact unit and measure temperature at the panel during cold starts and hot running tests. Check that the cable clears the frame with the equipment closed.

The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote. Give us the equipment model, approved panel and touch revisions where applicable, quantity and required date. Ask for the quoted revision and how a substitution would be handled.
