Description

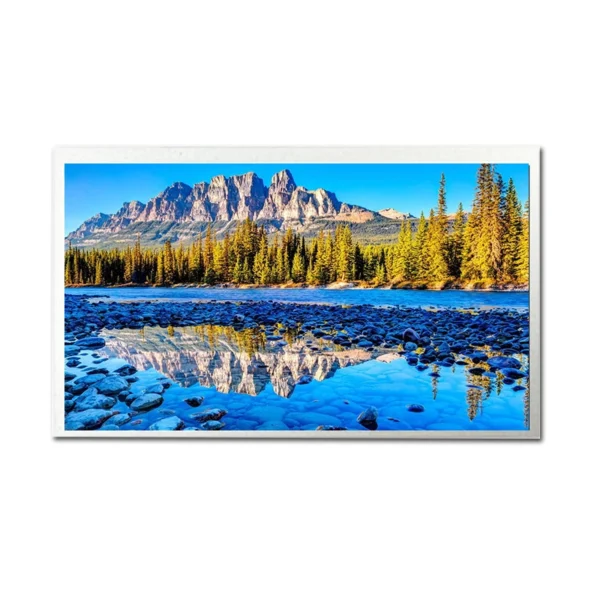

AUO G133HAN03.0 TFT Panel Description
This 13.3-inch AUO LCD display features an HD high-definition large screen and IPS wide viewing angle, making it ideal for indoor medical screen applications and consumer electronics.
It’s an original AUO Grade A panel—reliable quality at competitive pricing. Driver boards are available, and we can design and develop touch displays.
1-year quality guarantee.
13.3″ TFT Display Specifications
| Model Number | G133HAN03.0 |
|---|---|
| Size | 13.3 |
| Resolution | 1920*1080 |
| Outline Dimension | 303.86*187.7*3.0 |
| Active Area | 293.76*165.24 |
| Brightness(cd/m²) | 350 |
| Interface | eDP |
| View Direction | TN |
| Operating Temperature | -0~60 |
| Storage Temperature | -20~60 |
| LED Lifetime | 50000 |
| Touchscreen Support | No |
| Contrast Ratio | 800:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
13.3″ TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
