Description
G190EG01 V1 Key Features：

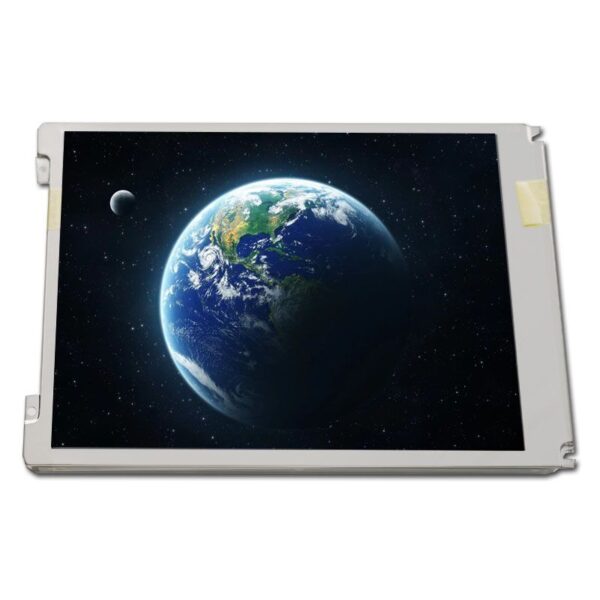

The AUO G190EG01 V1 is a 19-inch TN LCD panel designed for extreme industrial environments. With 350 cd/m² brightness and 1000:1 contrast ratio, it delivers sharp visibility in direct sunlight or low-light conditions. Engineered for reliability, it operates seamlessly across -20°C to 70°C and withstands vibrations, dust, and humidity. The LVDS interface ensures stable signal transmission in electrically noisy settings, while the 5V power supply simplifies integration with low-voltage systems. Its 85/85/80/80 viewing angles provide consistent visuals for multi-user control panels, and the ultra-slim 18.6mm profile (396×324mm outline) enables flexible installation in space-constrained HMIs. Featuring anti-glare coating, it minimizes reflections for outdoor kiosks or high-glare factory floors. With a 50,000-hour LED lifespan, this display reduces maintenance costs in 24/7 operations. Ideal for energy, logistics, and heavy machinery sectors, it combines durability with high performance.
Applications & Performance:
The G190EG01 V1 excels in industrial automation, outdoor digital signage, and transportation systems. Its 350cd/m² brightness ensures readability for solar farm monitoring, mining equipment interfaces, and EV charging stations. The -20°C~70°C operating range supports deployment in Arctic warehouses, desert logistics hubs, and unheated manufacturing plants. The LVDS interface resists electromagnetic interference, making it ideal for CNC machines, robotic control panels, and power grid SCADA systems. The 1280×1024 resolution delivers crisp text/graphics for warehouse management dashboards, maritime navigation displays, and security surveillance terminals. With a 1000:1 contrast ratio, it enhances grayscale accuracy for medical imaging devices or airport baggage handling systems. Applications include rugged HMIs for construction vehicles, military field equipment, and automated production lines. Its TN panel’s fast response time minimizes motion blur in dynamic environments like assembly line tracking or fleet management consoles.
19.0" TN LCD Product Specifications
| Model Number | G190EG01 V1 |
|---|---|
| Size | 19.0 |
| Resolution | 1280*1024 |
| Outline Dimension | 396*324*18.6 |
| Active Area | 376.32×301.056 |
| Brightness(cd/m²) | 350 |
| Interface | LVDS |
| View Direction | TN |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Contrast Ratio | 1000:1 |
| Power Supply | 5.0V |
| Display Type | Color LCD |
19.0" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
