Description

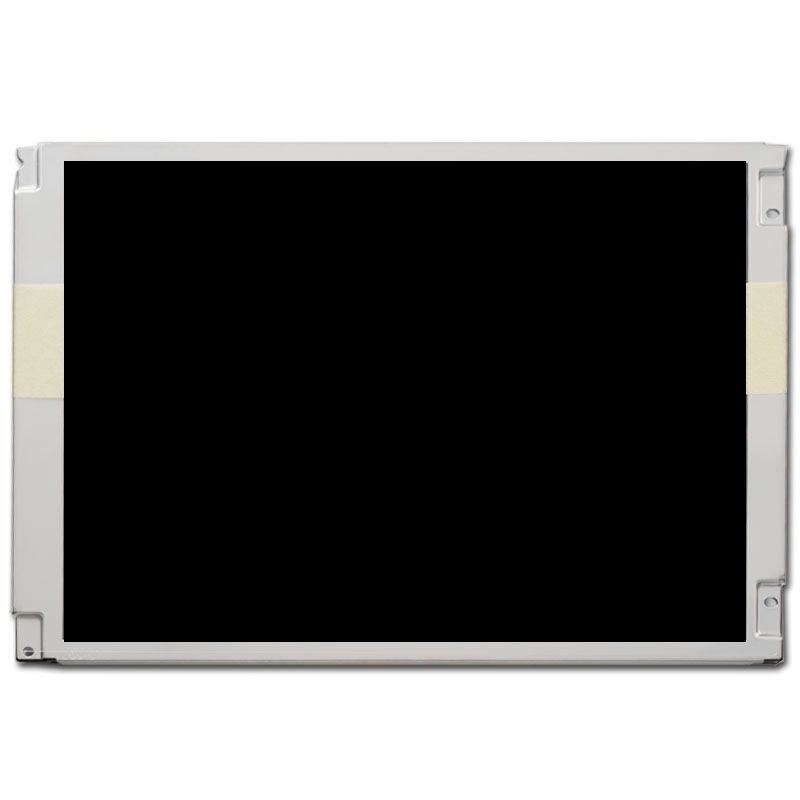

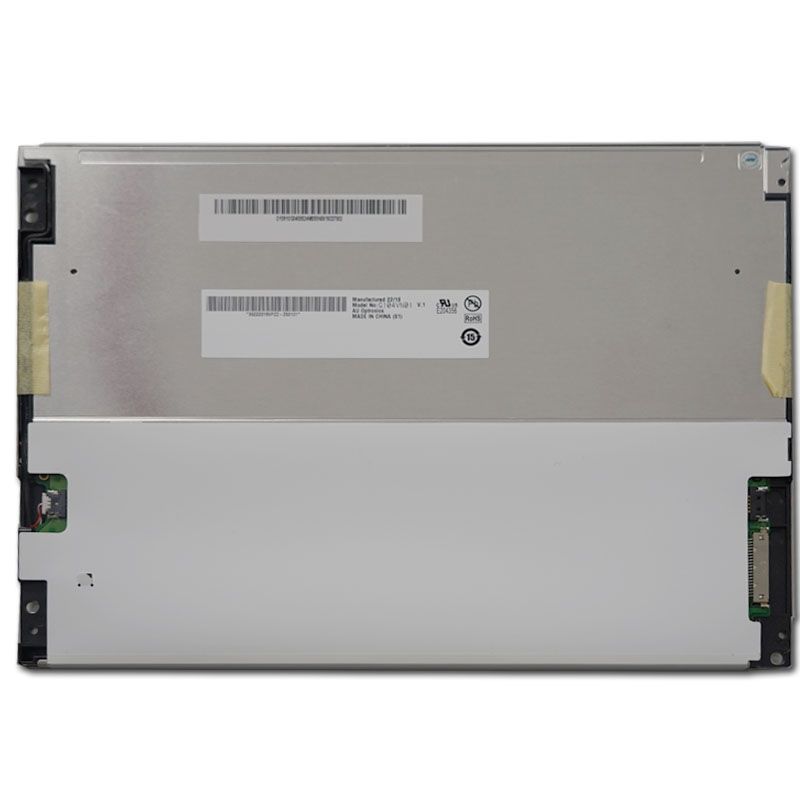

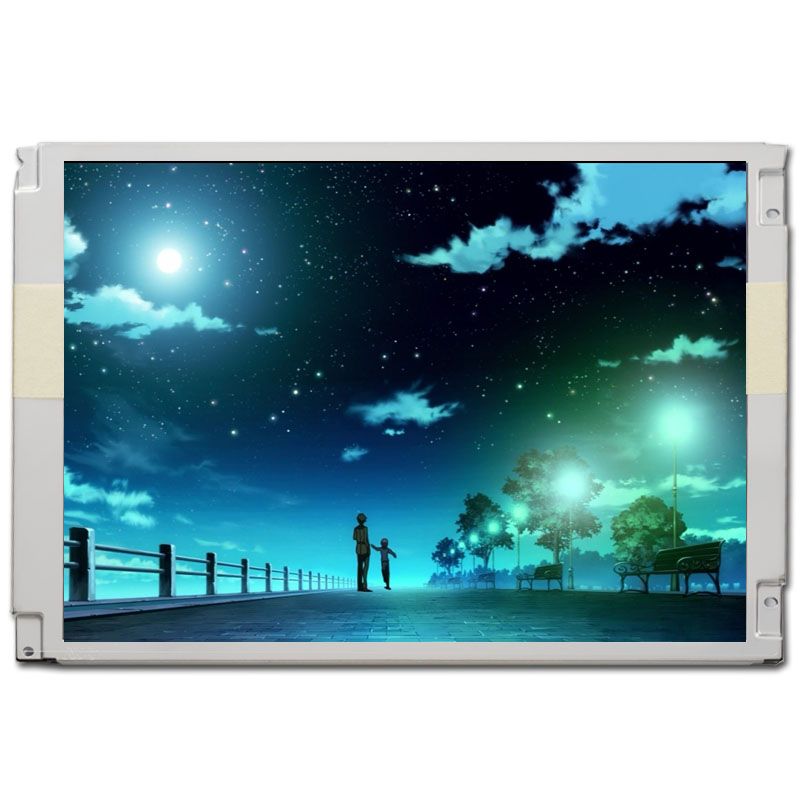

G104VN01 V1 General Description
The screen format is intended to support VGA (640(H) x 480(V)) screen and 16.2M (RGB 8-bits)or 262k colors (RGB 6-bits). LED driving board for backlight unit is included in G104VN01 V1 and the LED unit is replaceable. G104VN01 V1 designed with wide viewing angle; wide temperature and long life LED backlight，which is well suited for industial ，HMI applications.
G104VN01 V1 AUO TN LCD Panel Characteristics
The 10.4 inch AUO TN LCD Panel features an active area of 211.2 mm (H) x 158.4 mm (V) and a resolution of 640 x 480 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.33 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 5.2W under an all-black pattern. The module weighs approximately 355 grams and has physical dimensions of 243.0 mm (H) x 176.6 mm (V) x 8.0 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 16.2 million colors (8-bit) and 262K colors (6-bit). Designed for operation and storage within a temperature range of -30°C to +85°C, the module is also RoHS compliant, ensuring adherence to environmental standards.
10.4" TFT-LCD Product Specifications
| Model Number | G104VN01.V1 |
|---|---|
| Size | 10.4 |
| Resolution | 640*480 |
| Outline Dimension | 243*176.6*8.5 |
| Active Area | 211.2*158.4 |
| Brightness(cd/m²) | 450 |
| Interface | LVDS |
| View Direction | TN |
| Operating Temperature | -30~85 |
| Storage Temperature | -30~85 |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Contrast Ratio | 700:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
10.4" TFT LCD Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
