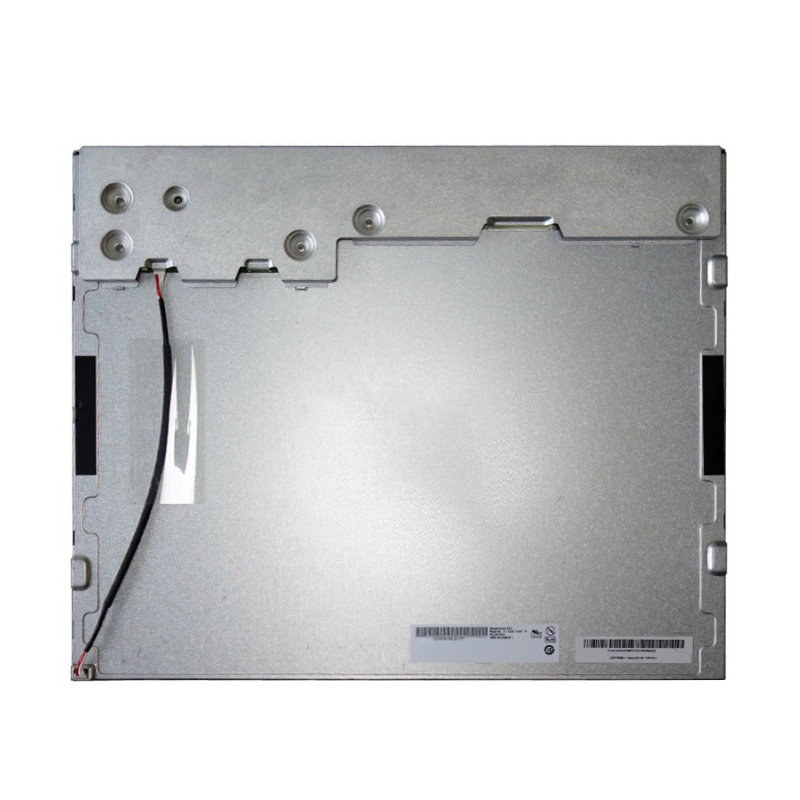

AUO G190ETN01.204 19-inch TN LCD Panel – 1280×1024 Resolution, -30~85°C Operation

SKU: DS50100
Size:

Resolution:

Interface:

Operating Temperature:

-30℃~ 85℃

Brightness(cd/m²):

350

Touchscreen Support:

Display Type:

Resources:

G190ETN01.204 19-inch AUO TN LCD – 1280×1024, 350cd/m²,ultra-wide temperature LCD-30~85°C,LVDS interface, high-contrast TFT industrial display.

$99.00
Request Volume Pricing






    Description

    G190ETN01.204 Key Features:

    The AUO G190ETN01.204 is a rugged 19-inch TN LCD panel built for extreme environments. Boasting 350cd/m² brightness and 1000:1 contrast ratio, it ensures sharp visibility even under harsh lighting or direct sunlight. With an ultra-wide operating temperature range (-30°C to 85°C) and 50,000-hour LED lifespan, it delivers reliable performance in the most demanding industrial or outdoor settings. The LVDS interface ensures stable signal transmission in electrically noisy environments, while the 5V power supply simplifies integration with low-voltage systems. Its 85/85/80/80 viewing angles provide consistent visuals for multi-user applications, and the slim 15.68mm profile (396×324mm outline) allows seamless installation in space-constrained setups. Anti-glare coating minimizes reflections, ideal for outdoor kiosks or high-glare industrial floors. Designed to withstand vibrations, dust, and extreme temperatures, it’s a durable choice for 24/7 operations in energy, transportation, or heavy machinery sectors.



    Applications & Performance:

    The AU Optronics 19-inch G190ETN01.204 excels in industrial automationoutdoor digital signage, and transportation systems. Its 350cd/m² brightness ensures sunlight readability for EV charging stations, mining equipment interfaces, or highway information displays. The -30°C~85°C tolerance supports deployment in Arctic logistics hubs, desert solar farms, or unheated warehouses. The LVDS interface resists electromagnetic interference, perfect for factory robotics, CNC machines, or power grid control panels. The 1280×1024 resolution delivers crisp text and graphics for SCADA systems, warehouse management dashboards, and maritime navigation displays. With 1000:1 contrast ratio, it enhances grayscale accuracy for medical imaging or security surveillance in bright environments. Applications include ruggedized HMIs, airport ground support systems, and military-grade field equipment. Its TN panel’s fast response time reduces motion blur for dynamic environments like construction vehicle interfaces or automated production lines.

    19.0″ TFT-LCD Product Specifications

    Model Number G190ETN01.204
    Size 19.0
    Resolution 1280×1024
    Outline Dimension 396×324×15.68
    Active Area 376.32×301.056
    Brightness(cd/m²) 350
    Interface LVDS
    View Direction TN
    Operating Temperature -30~85
    Storage Temperature -30~85
    LED Lifetime 50000
    Touchscreen Support Without
    Contrast Ratio 1000:1
    Power Supply 5.0V
    Display Type Color LCD

    19.0″ TFT LCD Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -30℃~ 85℃

    Brightness(cd/m²):

    350

    Touchscreen Support:

    Display Type:
