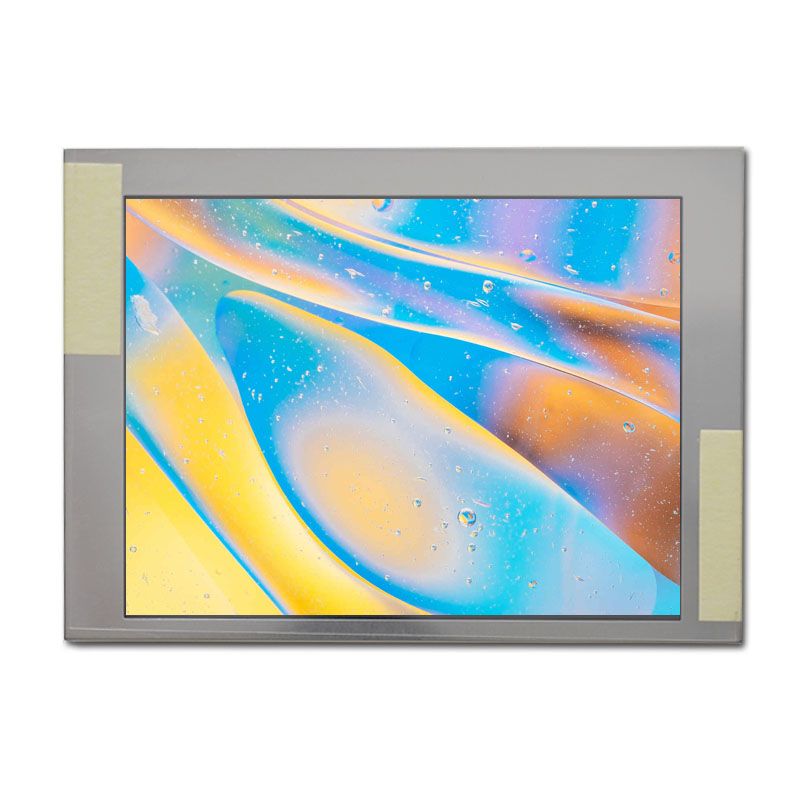

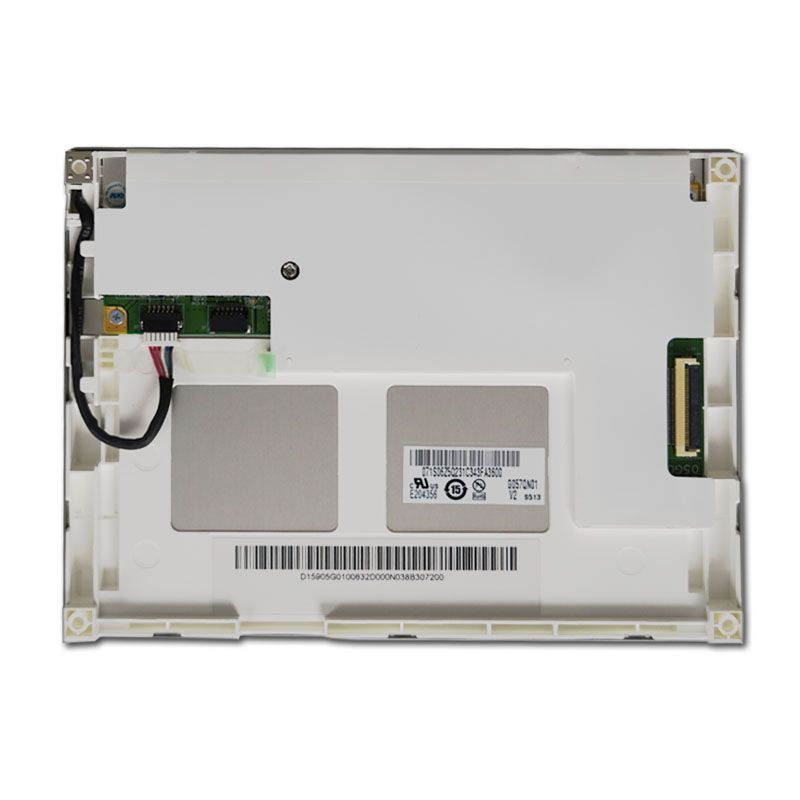

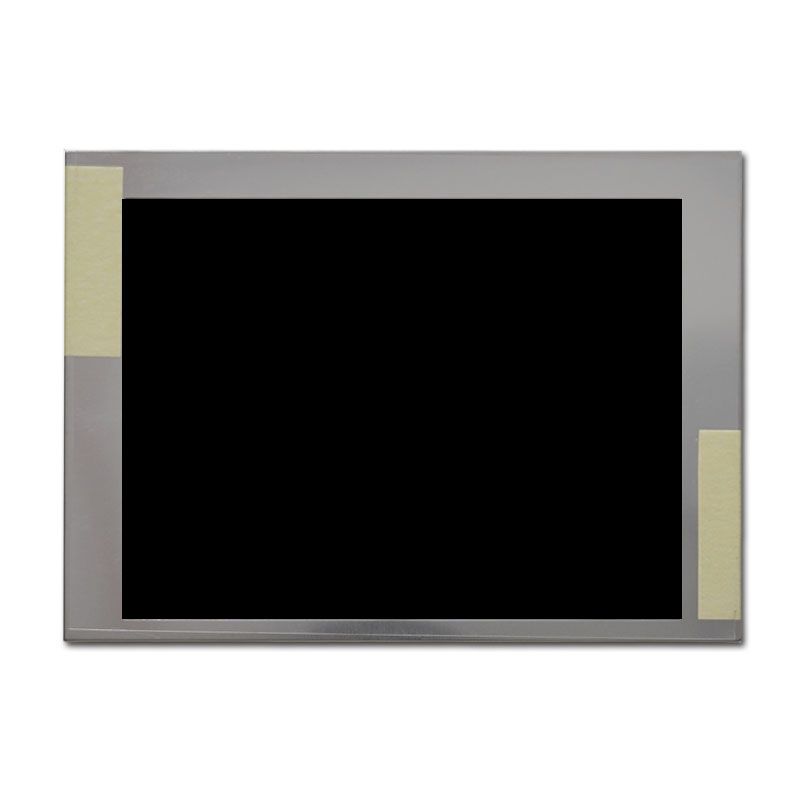

G057QN01 V2 AUO 5.7 inch TFT LCD Display

Description

G057QN01 V2 General Description

G057QN01 V2 is designed for industrial display applications with QVGA (320 x RGB x 240) resolution
and 262k colors (RGB 6-bits). It is composed of a TFT-LCD panel, driver ICs, control and power
supply circuits board and backlight unit including LED driver circuit. G057QN01 V2 offers CMOS
interface for display signal input.

G057QN01 V2 AUO Display Characteristics

The 5.7-inch LCD Display Module features an active area of 115.2 mm (H) x 86.4 mm (V) and a resolution of 320 x 240 pixels arranged in a RGB vertical stripe pattern. With a pixel pitch of 0.36 mm and a TN (Twisted Nematic) display mode, it operates at a nominal input voltage of 3.3V and has a typical power consumption of 3.34W (comprising 0.46W for the LCD and 2.88W for the LED backlight). The display weighs approximately 150g and has physical dimensions of 144.0 mm (H) x 104.6 mm (V) x 12.3 mm (D). It features a CMOS 6-bit Parallel RGB electrical interface, an anti-glare surface treatment with 3H hardness, and supports 262K colors, offering optimal viewing at a 12 o’clock angle. The operational temperature range is from -30°C to +85°C, with the same range for storage, and the module is RoHS compliant.

5.7″ AUO LCD Display Product Specifications

Model Number	G057QN01V 2
Size	5.7
Resolution	320*240
Outline Dimension	144*104.6*12.8
Active Area	115.2*86.4
Brightness(cd/m²)	800
Interface	CMOS
View Direction	TN
Operating Temperature	-30~85
Storage Temperature	-30~85
LED Lifetime	50000
Touchscreen Support	Without
Contrast Ratio	800:1
Power Supply	3.3V
Display Type	Color LCD
