Description
G104VTN01.0 AU Optronics LCD General Desription

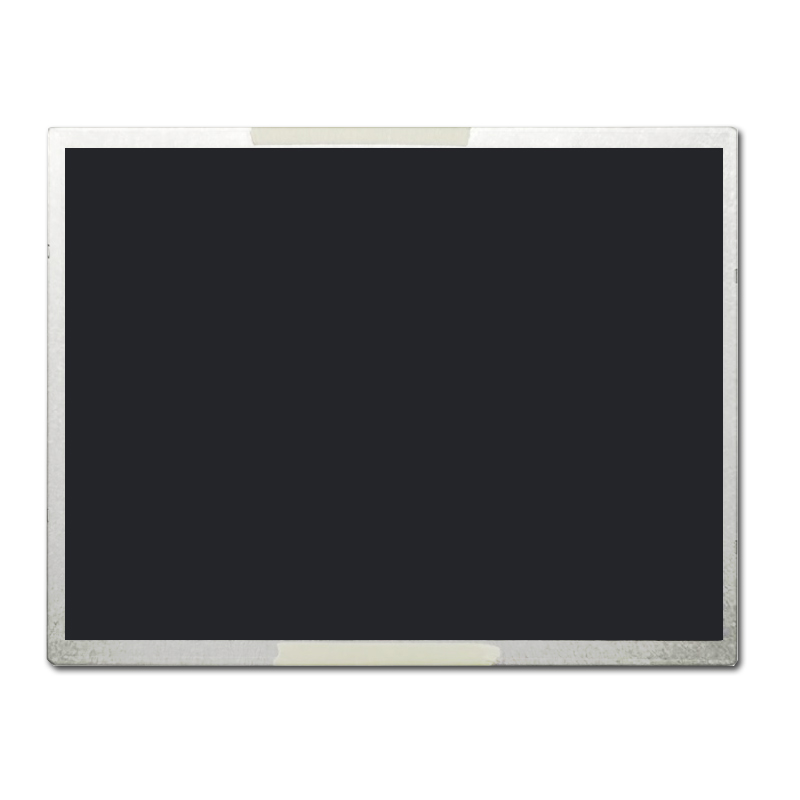

The AUO G104VTN01.0 is a 10.4-inch a-Si TFT-LCD module with 640×480 VGA resolution (76 PPI), featuring a 211.2×158.4mm active area, 227.3×177.5×9.8mm outline size, and 293g weight. It offers 370 cd/m² brightness, 700:1 contrast ratio, 80/80/60/80 viewing angles, TN normally white transmissive mode, and antiglare 3H hard coating. With 262K colors (47% NTSC), WLED backlight (100K hours), and support for 60Hz (up to 240Hz via MEMC), it uses a 40-pin parallel RGB interface (3.3V input), operates/stores at -30~80°C, and is suitable for industrial applications, can match a customized touch screen.
Highlight G104VTN01.0 Display’s Features
1- -30°C to 80°C wide operating temperature range, tailored specifically for demanding industrial environments, whether it’s deployed in frigid warehouses, sun-baked outdoor equipment, or industrial ovens.
2- The G104VTN01.0 is equipped with a high-quality WLED backlight rated for an impressive 100,000 hours of continuous use, this extended lifespan significantly reduces maintenance frequency and replacement costs, providing long-term value for industrial applications that require consistent display performance over time.
G104VTN01.0 Product Specifications
| Diagonal Size | 10.4″(Diagonal) |
|---|---|
| Pixel Number | 640×480 Pixels |
| Luminance | 370 |
| Module Size | 227.3(W)×177.5(H) ×9.5(D) |
| Active Area | 211.2(W)×158.4(H) |
| Viewing Direction | 6 O’CLOCK |
| View Angle(U/D/R/L) | 80/80/60/80 |
| Interface | RGB |
| Contrast Ratio | 700 |
| Operating Temperature | -30~80℃ |
| Storage Temperature | -30~80℃ |
| LED Lifetime | 100K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
