Description

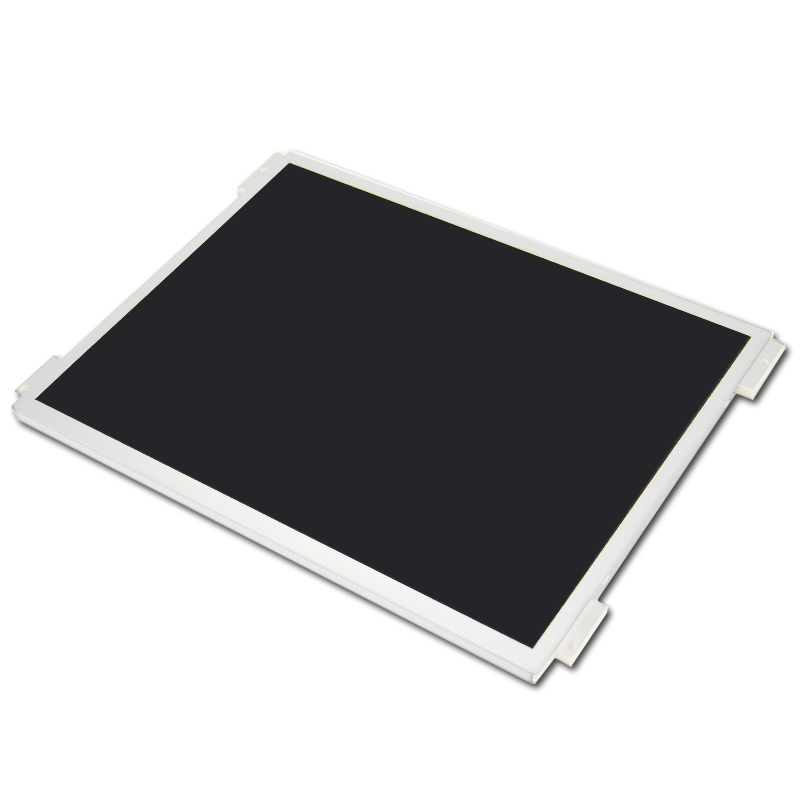

G121EAN01.6 AU Optronics LCD Display General Desription
The AUO G121EAN01.6 is a 12.1-inch a-Si TFT-LCD LCM with 1280×800 WXGA resolution (124 PPI) and RGB vertical stripe pixel format. It features a 261.12×163.2mm active area, 278×184×9.52mm outline size, and antiglare 3H hard-coated surface. With 400 cd/m² brightness, 1000:1 contrast ratio, 89/89/89/89 viewing angles (CR≥10), and AHVA normally black transmissive mode (best viewed symmetrically), it offers 25ms (Tr+Td) response time and 16.2M colors (72% NTSC). Equipped with a 50K-hour WLED backlight (with driver), it supports 60Hz and up to 240Hz via MEMC, weighs max 480g, and is designed for industrial/healthcare use. It uses a 30-pin eDP (1 Lane) interface, operates on 3.3V input, and withstands -30~85°C operating/storage temperatures.
Highlight G121EAN01.6 Display’s Features
1- Operating reliably from -30°C to 85°C, stable operation in harsh industrial settings—whether deployed in freezing warehouses, high-heat manufacturing zones.
2- Idea for industrial and healthcare applications, it integrates seamlessly into factory automation control panels, machinery monitoring systems, and industrial HMI
G121EAN01.6 Product Specifications
| Diagonal Size | 12.1"(Diagonal) |
|---|---|
| Pixel Number | 1280×800 Pixels |
| Luminance | 400 |
| Module Size | 278(W)×184(H) ×9.52(D) |
| Active Area | 261.2(W)×163.2(H) |
| Viewing Direction | ALL O'CLOCK |
| View Angle(U/D/R/L) | 89/89/89/89 |
| Interface | eDP |
| Contrast Ratio | 1000 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
DS50172 FAQ
How do I identify the original LCD before ordering DS50172?
Use the full panel part number and revision from the unit label and the corresponding drawing. Send us photos of the old label and connector side. Compare the mounting holes, thickness, connector location and visible opening on both drawings before ordering.
Will my existing eDP cable and mainboard work with DS50172?
For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.
Will replacing my current panel with DS50172 require a change to the equipment software?
Try your service menus and startup graphics on a 1280 × 800 canvas before approving the replacement. Compare the actual native timing and display orientation with the old module. Price any cable, firmware and mounting changes before committing to a substitute.
How do I check whether DS50172 will look right behind the original cover?
Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test cold boot, restart, brightness control and a full diagnostic image. Use the listed −30 °C to +85 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. Check that the cable clears the frame with the equipment closed.
What should I order if my equipment uses touch with the LCD that DS50172 would replace?
The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote. Give us the equipment model, approved panel and touch revisions where applicable, quantity and required date. Ask for the quoted revision and how a substitution would be handled.
