Description

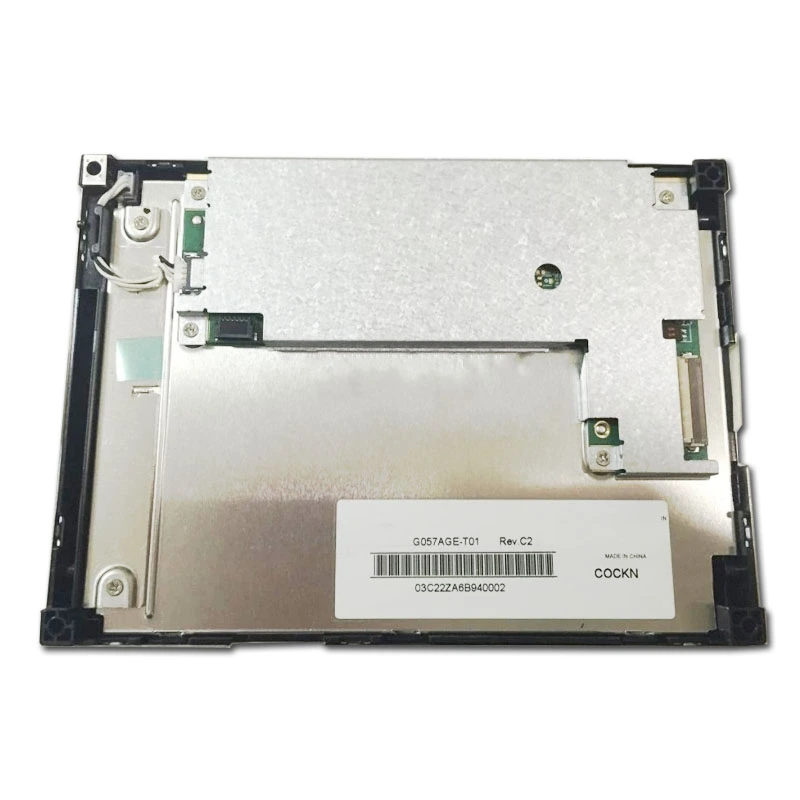

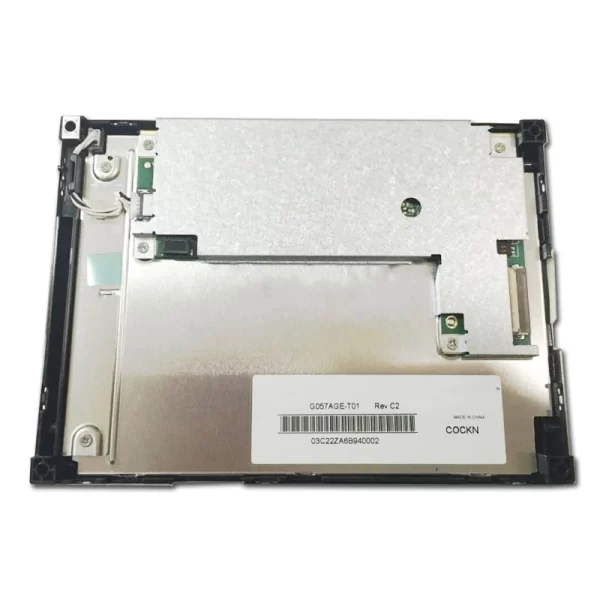

Innolux G057AGE-T01 General Desription
Innolux G057AGE-T01 is a 5.7″ a-Si TFT-LCD LCM with 320(RGB)×240 QVGA resolution (70 PPI, RGB vertical stripe pixel format), 115.2(W)×86.4(H) mm active area, 118.2(W)×89.4(H) mm bezel opening, and 144×104.6×12.8 mm outline featuring antiglare treatment (Haze 25%). It offers 500 cd/m²luminance, 800:1 typ. contrast ratio, 80/80/70/70 viewing angle (CR≥10), 15/35ms typ. response time, TN normally white transmissive mode, 262K color depth (54% NTSC), 60Hz base refresh rate (supports 120Hz/240Hz via embedded MEMC), WLED backlight (50K hours, with driver), and weighs 155/170g (typ./max.). Designed for industrial use without a touchscreen, it uses TTL (1 ch, 6-bit) 33-pin connector interface, operates on 3.3V supply, and withstands -30~85°C operating/storage temperatures.
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
5.7″ Product Specifications
| Diagonal Size | 5.7 inch |
|---|---|
| Pixel Number | 320×240 |
| Luminance | 200 |
| Module Size | 144×104.6×12.8 |
| Active Area | 115.2×86.4 |
| Viewing Direction | TN |
| View Angle(U/D/R/L) | 80/80/70/70 |
| Interface | RGB 26 |
| Contrast Ratio | 800 : 1 |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| LED Lifetime | 50000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux G057AGE-T01 Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
