Description
3.5" IPS MIPI TFT LCD Display Key Features
Stunning Visuals, Industrial Reliability.
Our 3.5-inch portrait IPS display offers an exceptional 1000:1 contrast ratio, delivering deep blacks and vibrant colors for high-end applications. With a sleek 480x800 resolution and high-speed MIPI interface, it provides smooth performance and wide viewing angles (IPS). Engineered for durability, it operates reliably from -20°C to 70°C, making it perfect for industrial handhelds, medical monitors, and smart home interfaces.
Customization & Support (OEM/ODM)
Tailored Solutions: We support customization for glass dimensions, FPC pinouts, high-brightness backlighting, and custom touch panel logos.
Samples & Data: Datasheets, initialization codes, and samples are available upon request for rapid prototyping.
Quality Commitment: 100% functional testing, 5-step strict QC, and 1-year warranty.
Fast Delivery: Standard 30-day lead time with stable supply chain support.

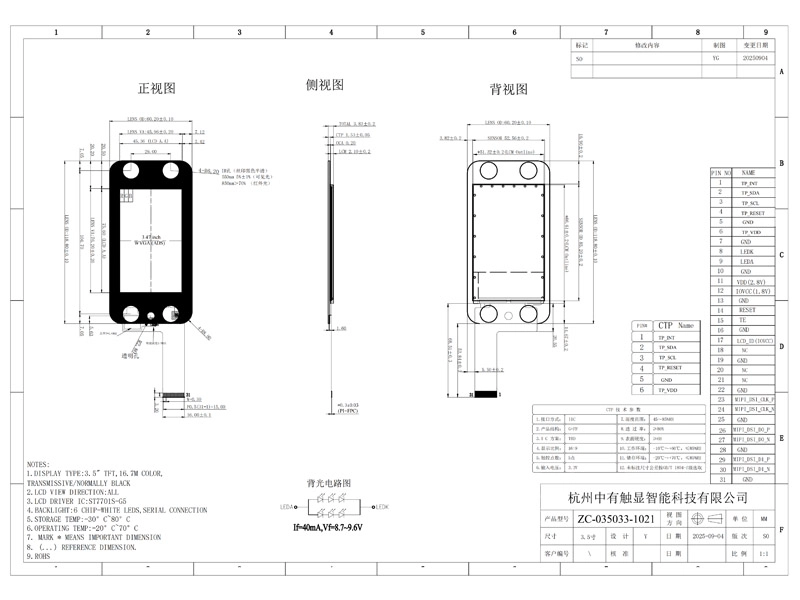

Technical Specifications
| Model Number | ZC-035033-1021 |
|---|---|
| Size | 3.5 inch |
| Resolution | 480(RGB)*800 |
| Outline Dimension | 60.20 (H) × 118.80 (V) × 3.83(w/CTP) |
| Active Area | 36.72 (H) × 48.96 (V) |
| Brightness(cd/m²) | 300 |
| Interface | MIPI |
| View Direction | IPS |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| LED Lifetime | 30000 |
| Touchscreen Support | Capacitive Touch |
| Contrast Ratio | 1000:1 |
| Power Supply | 3.3V |
| Display Type | Color LCD |
3.5" TFT Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
