Description
5.0 inch Raspberry PI Screen Introduction ：
Hardware resolution 800×480, resolution can be configured through software (up to 1920X1080 supported)
Supports 5-point capacitive touch control, USB touch, driver-free
Built-in OSD menu adjustment function (adjustable contrast/brightness/power on/off, etc.)
Compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi

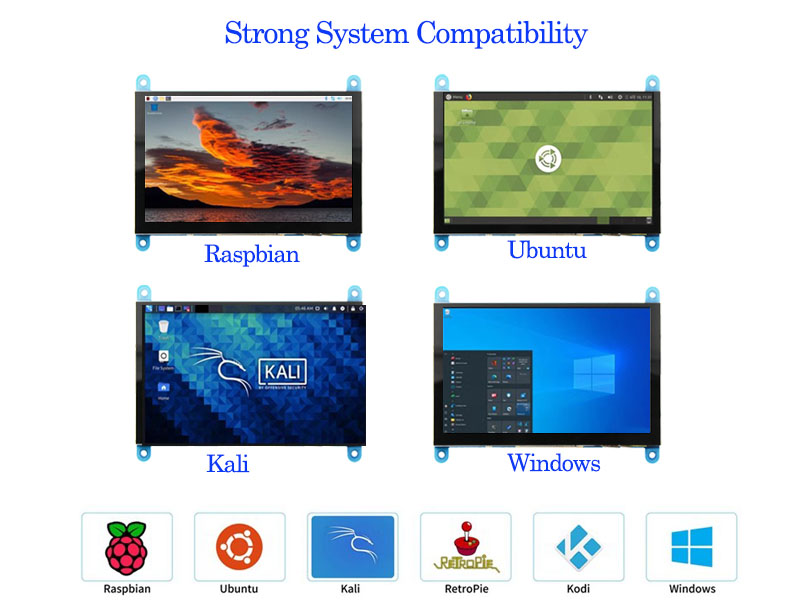

As a Raspberry Pi monitor, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-point touch, driver-free
As a computer monitor, it supports Windows 7/ 8/ 8.1/ 10, five-point touch, driver-free
Supports common game consoles such as Microsoft Sony PS4, XBOX360 and Nintendo
This product has passed CE and RoHS certification
Product Pictures
| Button& Interface | Note |
| ① Earphone | 3.5mm audio output interface |
| ②&③ Touch | USB touch/power supply interface, used for power supply and touch output, the two functions are the same, just connect any one |
| ④ Display | HDMI interface, used to connect the motherboard and LCD display for HDMI transmission |
| ⑤ Power | Turn on or off the LCD display to reduce power consumption |
| ⑥ Return | Return to the previous level when setting the display menu |
| ⑦ Right/Down | Direction key (backlight shortcut adjustment key) |
| ⑧ Left/Up | Direction key (backlight shortcut adjustment key) |
| ⑨ Menu | Display OSD setting menu / selection key |
5" Raspberry Pi Touch Screen Key Parameters ：
| Size(inch) | 5 |
| Resolution(pixels) | 800*480 |
| Display material | IPS TFT panel |
| Touch | 5 point capacitive touch |
| Module power | 0.30A*5V |
| Module size(mm) | 121.11*95.24 |
| Active Area(mm) | 105.11*64.80 |
| Product weight(g) | 259 |
