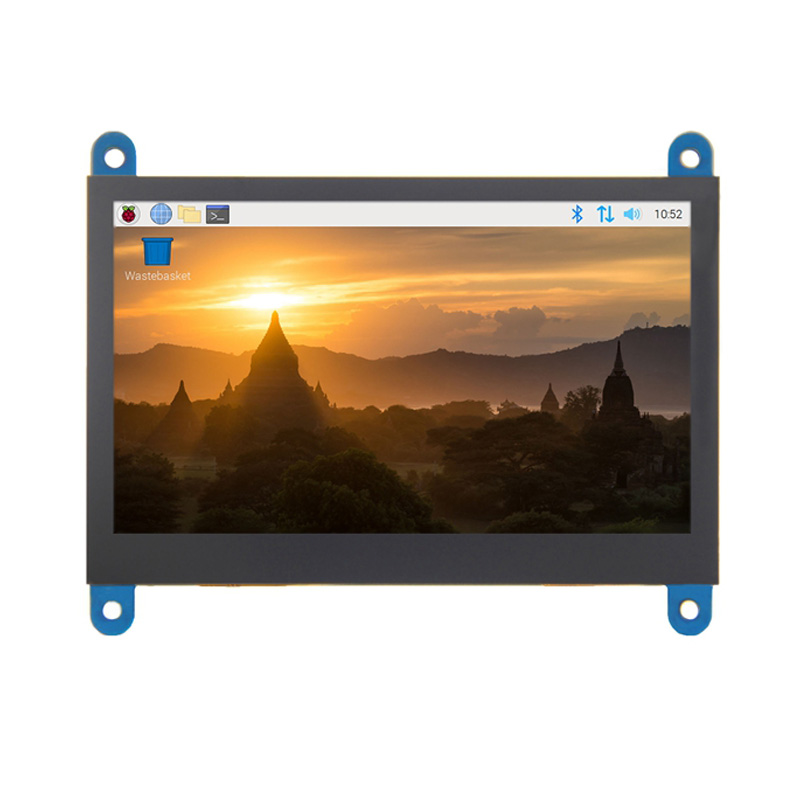

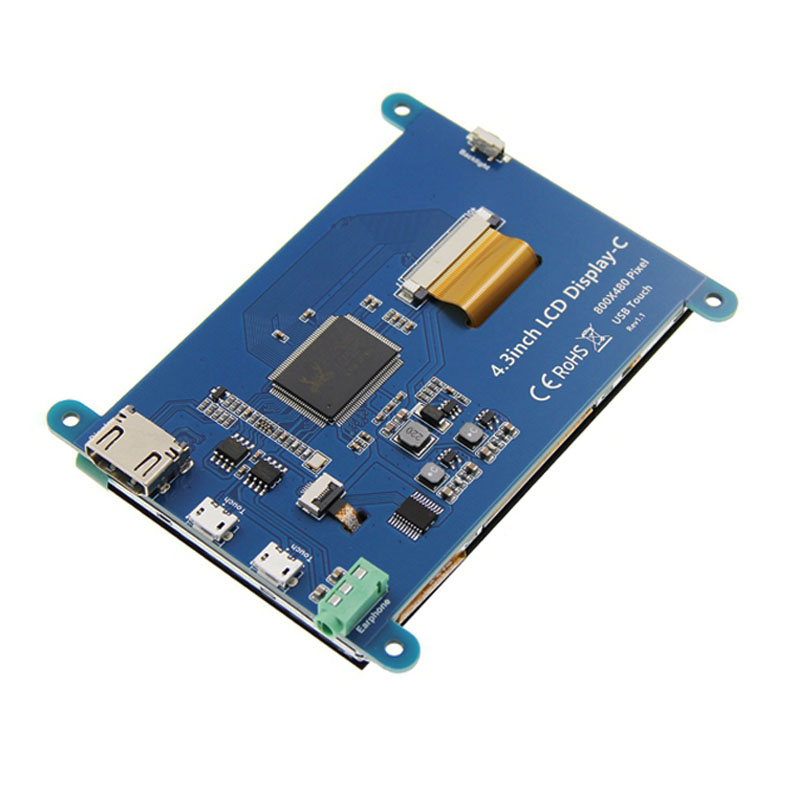

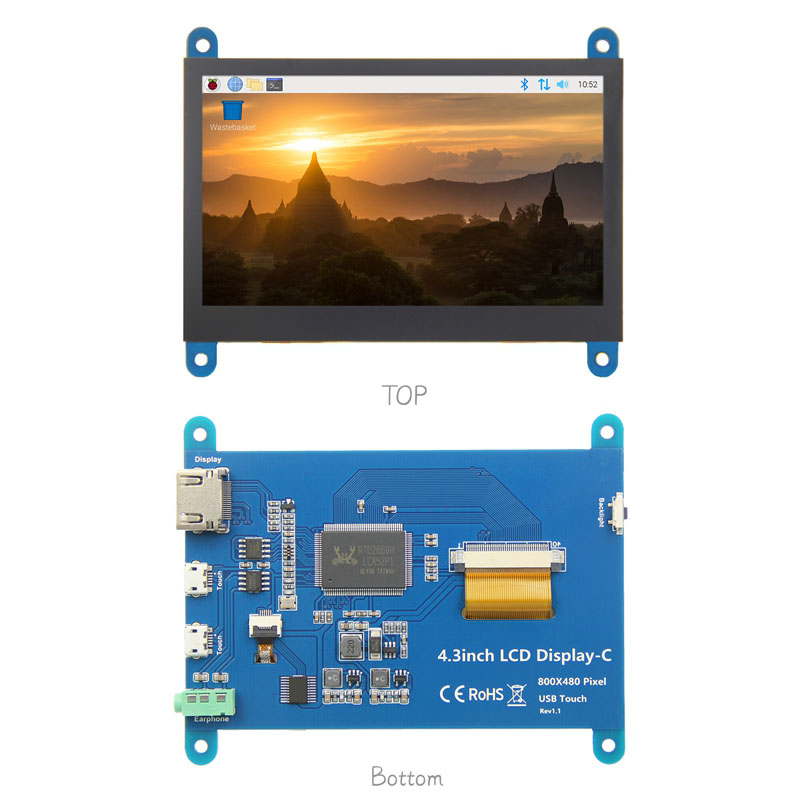

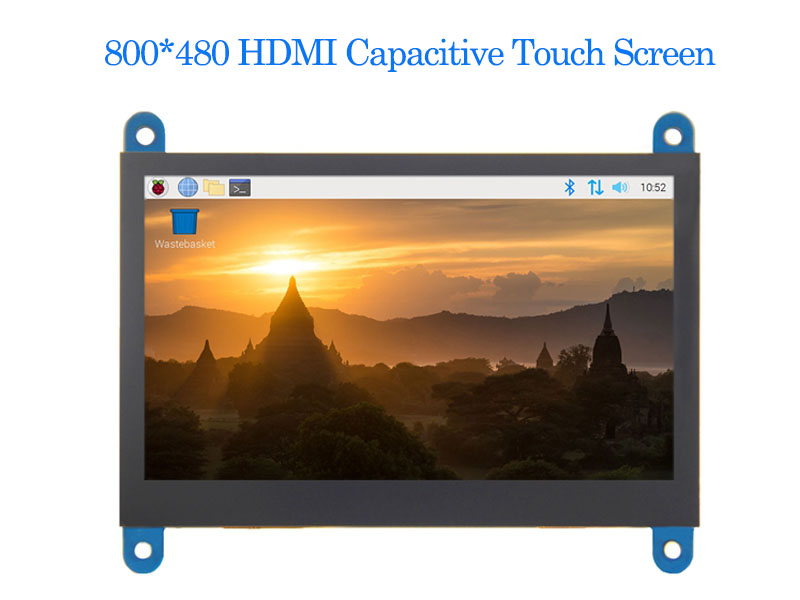

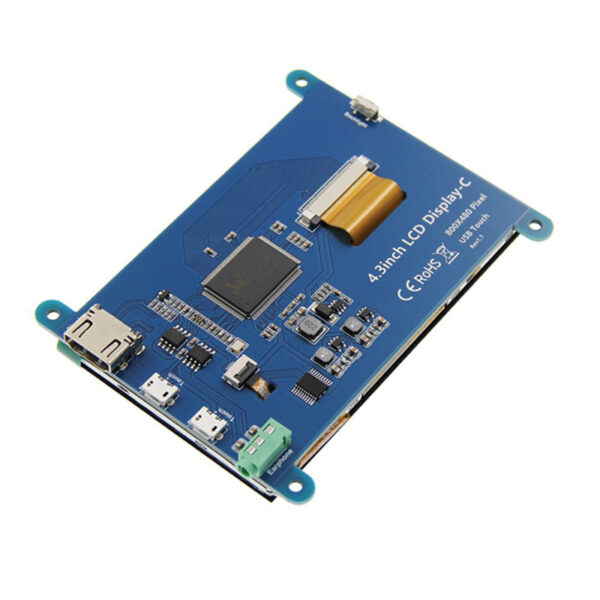

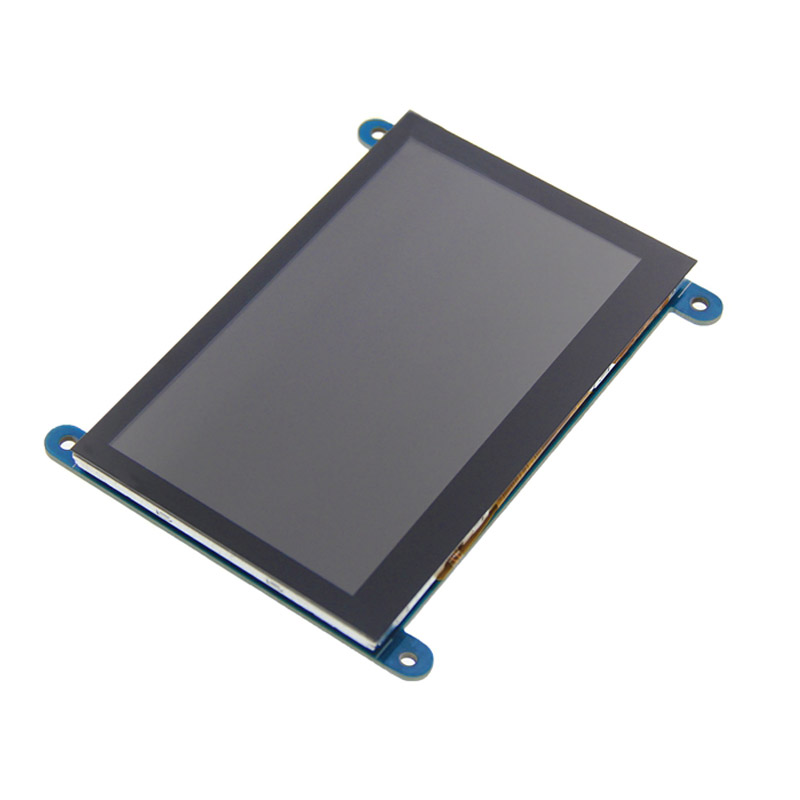

4.3 inch HDMI TFT Display for Raspberry Pi with USB Capacitive Touch

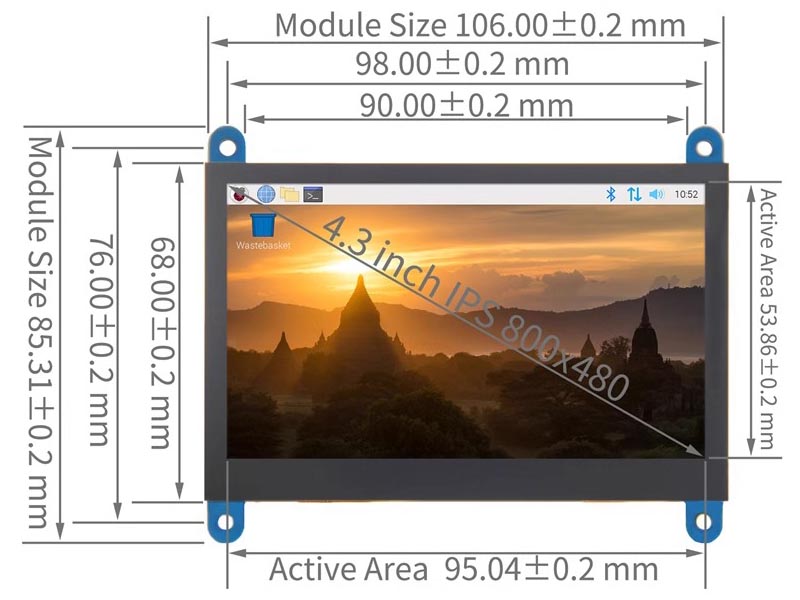

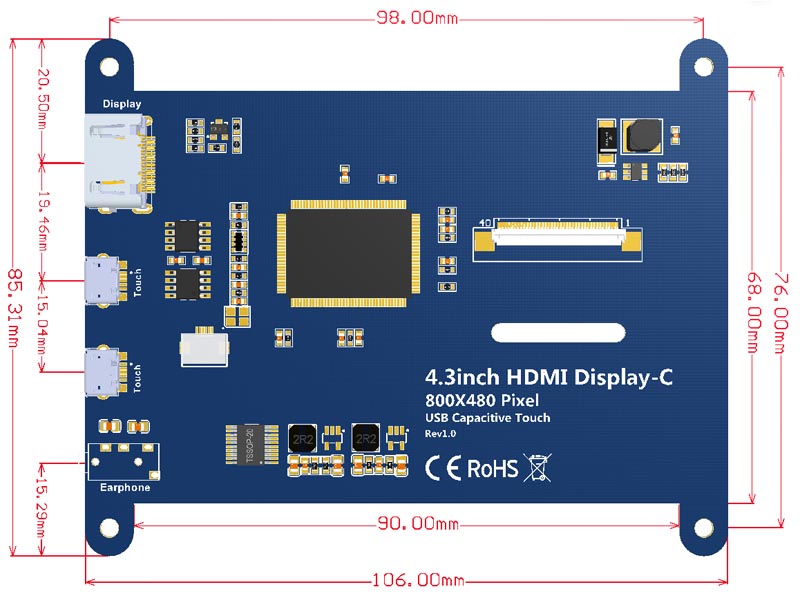

Use the 4.3-inch diagonal to shortlist display assemblies, then check the exact drawing for fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

Try your your application in its intended orientation on a 800 × 480 canvas before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Judge readability on the assembled product with its final cover and ambient lighting.

Start from a clean copy of the production OS, then test reboot, resume and reconnect with the production cables and power supply. For the listed capacitive touch, verify the host driver and test edge taps with the final cover and the way operators will actually use it. Check that touch and graphics remain aligned after rotation.

Record the Pi model, OS image version, approved display and controller revision, cable and power configuration. Include your accepted boot and touch test results when requesting the production quote.
