Description

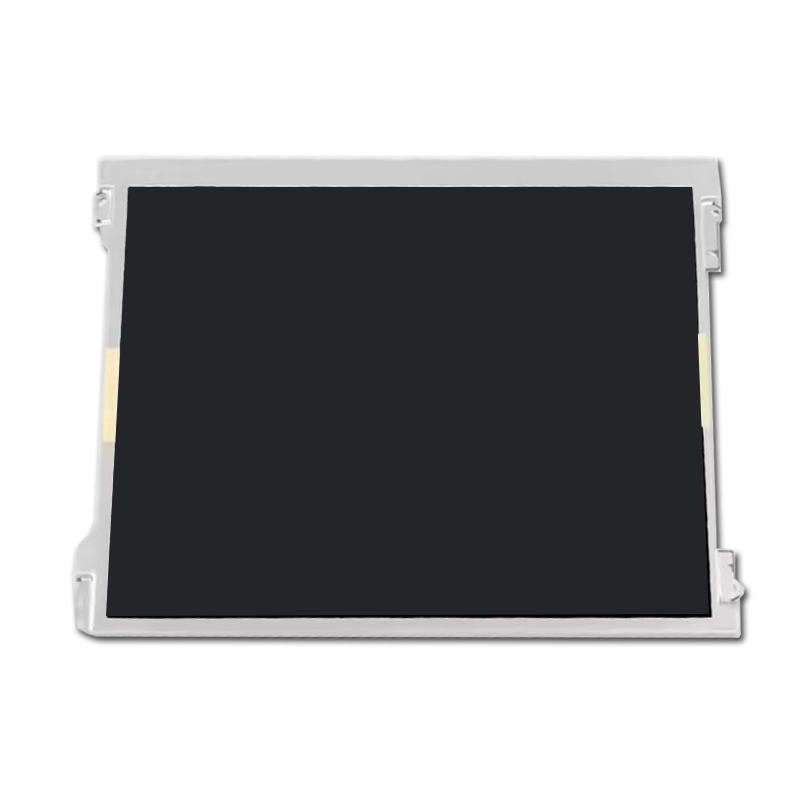

AUO LCD Panel g121xn01 v001 General Desription

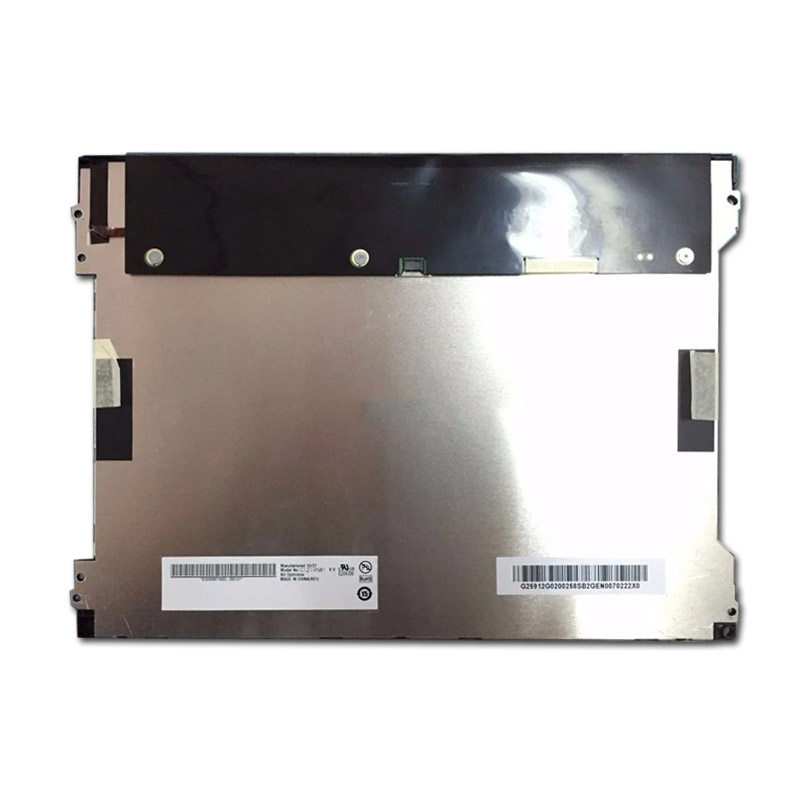

The AUO LCD Panel g121xn01 v001 is a 12.1-inch a-Si TFT-LCD LCM with 1024×768 XGA resolution (105 PPI, RGB vertical stripe), featuring a 245.76×184.32mm active area, 250.8×189.4mm bezel opening, and 279×209×9mm outline size with antiglare 3H hard coating. It offers 500 cd/m² (Typ.) brightness, 700:1 (Typ.) contrast ratio, 80/80/70/70 (Typ.) viewing angles (CR≥10), TN normally white transmissive mode, 25/10ms (Tr/Td, Typ.) response time, and supports 262K/16.2M colors (72% NTSC). Equipped with a 50K-hour 9S2P WLED backlight (with driver), it runs at 60Hz (up to 240Hz via MEMC), weighs max 510g, uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C for industrial applications.
Why choose us
1- -30°C to 85°C wide temperature tolerance, reliable performance in freezing warehouses, high-heat production zones, or mobile industrial equipment exposed to harsh weather, eliminating risks of thermal failure.
2- AUO A-Grade Displays: Direct from the factory, ensuring premium quality and reliability. Competitive Pricing & Volume Discounts,Expert team available 24/7 to assist with integration and troubleshooting.
g121xn01 v001 Product Specifications
| Diagonal Size | 12.1"(Diagonal) |
|---|---|
| Pixel Number | 1024×768 Pixels |
| Luminance | 500 |
| Module Size | 279(W)×209(H) ×9(D) |
| Active Area | 245.76(W)×184.32(H) |
| Viewing Direction | 6 O'CLOCK |
| View Angle(U/D/R/L) | 80/80/70/70 |
| Interface | LVDS |
| Contrast Ratio | 700 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
