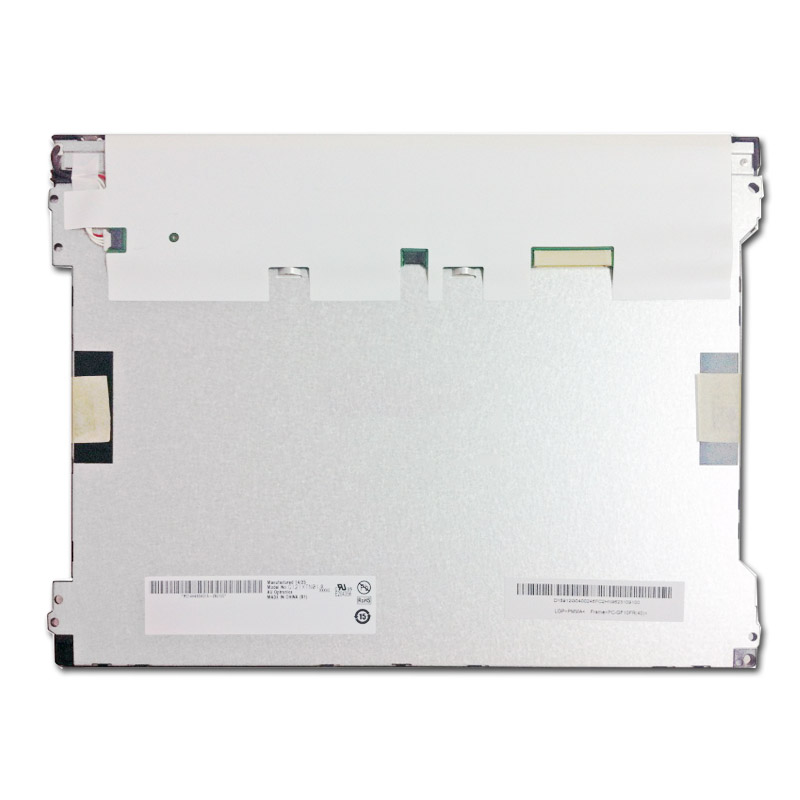

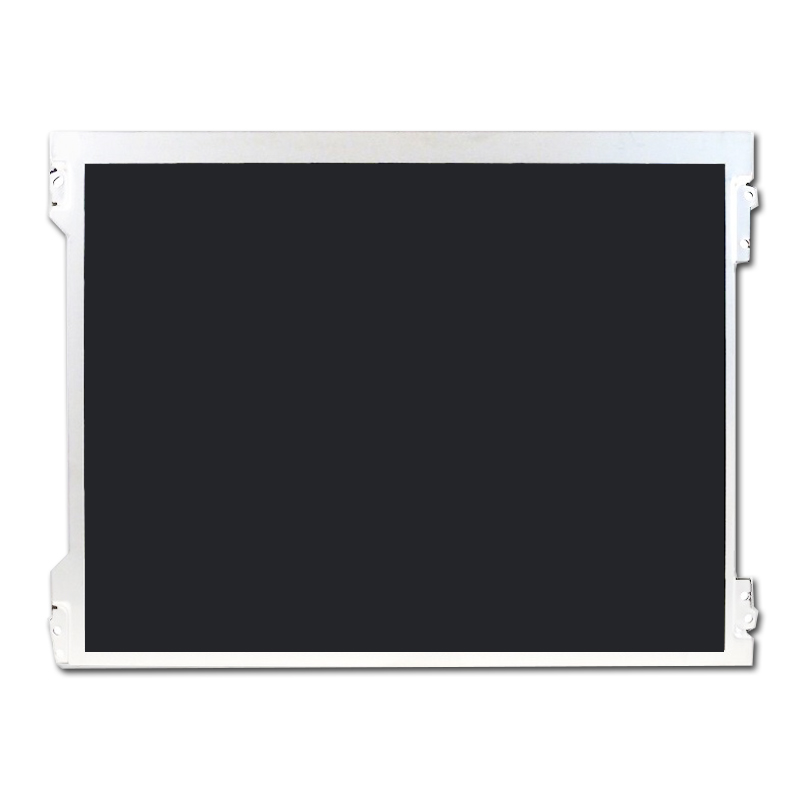

AUO TFT Panel G121STN01.0 General Desription
The AUO G121STN01.0 is a 12.1-inch a-Si TFT-LCD LCM with 800×600 SVGA resolution (82 PPI, RGB vertical stripe), featuring a 246×184.5mm active area, 249.05×188.3mm bezel opening, and 279×209×9.5mm outline dimensions with antiglare 3H hard coating. It offers 300 cd/m² (Typ.) brightness, 600:1 (Typ.) contrast ratio, 80/80/65/75 (Typ.) viewing angles (CR≥10) with best view at 6 o’clock, 25/10ms (Tr/Td, Typ.) response time, and TN normally white transmissive mode supporting 262K/16.2M colors (55% NTSC). Equipped with a 30K-hour WLED backlight (9S2P, with driver), it weighs up to 580g, runs at 60Hz (up to 240Hz via MEMC), uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C for rugged industrial applications without a touch panel.
Why choose us
1- -30°C to 85°C wide temperature tolerance, reliable performance in freezing warehouses, high-heat production zones, or mobile industrial equipment exposed to harsh weather, eliminating risks of thermal failure.
2- AUO A-Grade Displays: Direct from the factory, ensuring premium quality and reliability. Competitive Pricing & Volume Discounts,Expert team available 24/7 to assist with integration and troubleshooting.
G121STN01.0 Product Specifications
| Diagonal Size | 12.1″(Diagonal) |
|---|---|
| Pixel Number | 800×600 Pixels |
| Luminance | 300 |
| Module Size | 279(W)×209(H) ×9.5(D) |
| Active Area | 246(W)×184.5(H) |
| Viewing Direction | 6 O’CLOCK |
| View Angle(U/D/R/L) | 80/80/65/75 |
| Interface | LVDS |
| Contrast Ratio | 600 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 30K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
