G150XAN02.2 Sunlight Readable Display General Desription

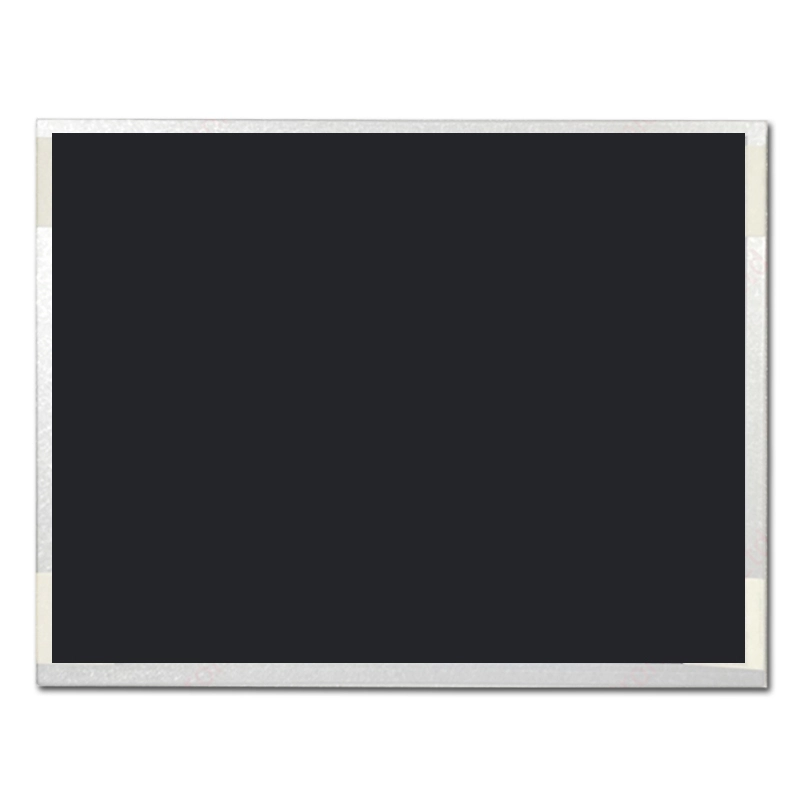

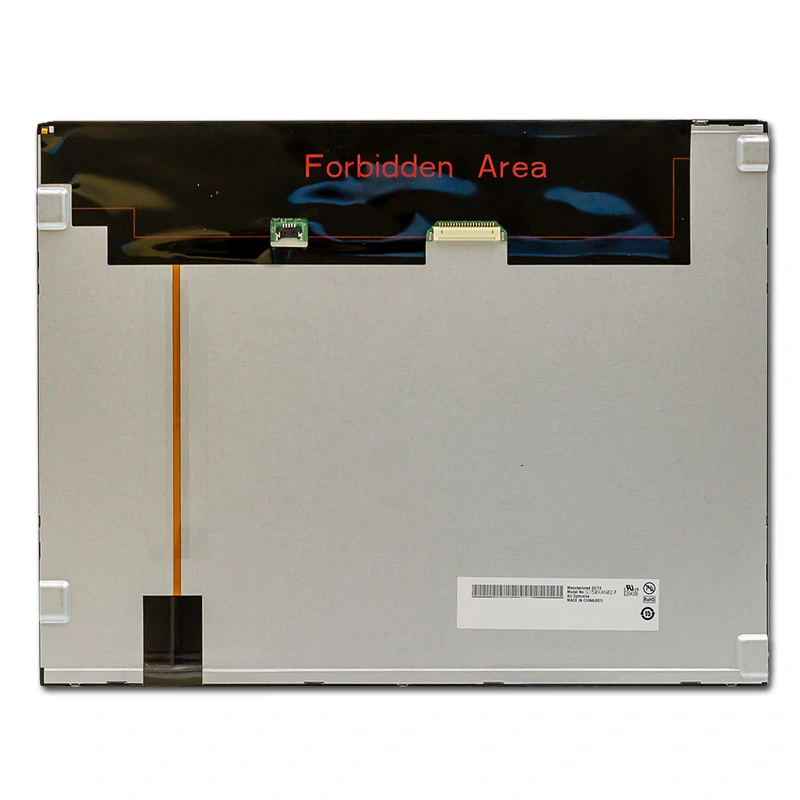

G150XAN02.2, a 15.0″ a-Si TFT-LCD LCM with XGA resolution (1024×768, 85PPI, RGB vertical stripe). It features an active area of 304.128×228.096 mm, a bezel opening of 309.9×236.36 mm, and an outline of 326.5×253.5×9.8 mm (H×V×D);1800 cd/m²brightness, 1000:1 contrast, 89° all-direction viewing angles (CR≥10), 25ms (typ.) response time, AHVA normally black transmissive mode, 16.2M colors (60% NTSC). WLED (50K hours, with LED driver). Refresh rates: 60Hz base, 120Hz (MEMC), 120Hz+120Hz (120Hz panel/backlight), 240Hz (MEMC). Can be customized touch screen.
Main Features
1- The 15-inch large display features a sleek, robust design for a premium visual experience, enabling intuitive and efficient user interaction with its spacious, easy-to-navigate interface.
2- 1800-nit ultra-high brightness ensures excellent visibility in direct sunlight, making it ideal for outdoor industrial control equipment where glare and harsh lighting are critical challenges.
3- Backed by a dedicated R&D team, we provide online technical support to deliver fully customized touch solutions—from initial concept to seamless integration, ensuring optimal performance for your application.
G150XAN02.2 Product Specifications
| Diagonal Size | 15″(Diagonal) |
|---|---|
| Pixel Number | 1024×768 Pixels |
| Luminance | 1800 |
| Module Size | 362.5(W)×253.5(H) ×9.8(D) |
| Active Area | 304.128(W)×228.096(H) |
| Viewing Direction | ALL |
| View Angle(U/D/R/L) | 89/89/89/89 |
| Interface | LVDS |
| Contrast Ratio | 1000 |
| Operating Temperature | -30~70℃ |
| Storage Temperature | -30~70℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
