Description
LW700AT9309 Chimei Innolux LCD Display General Desription

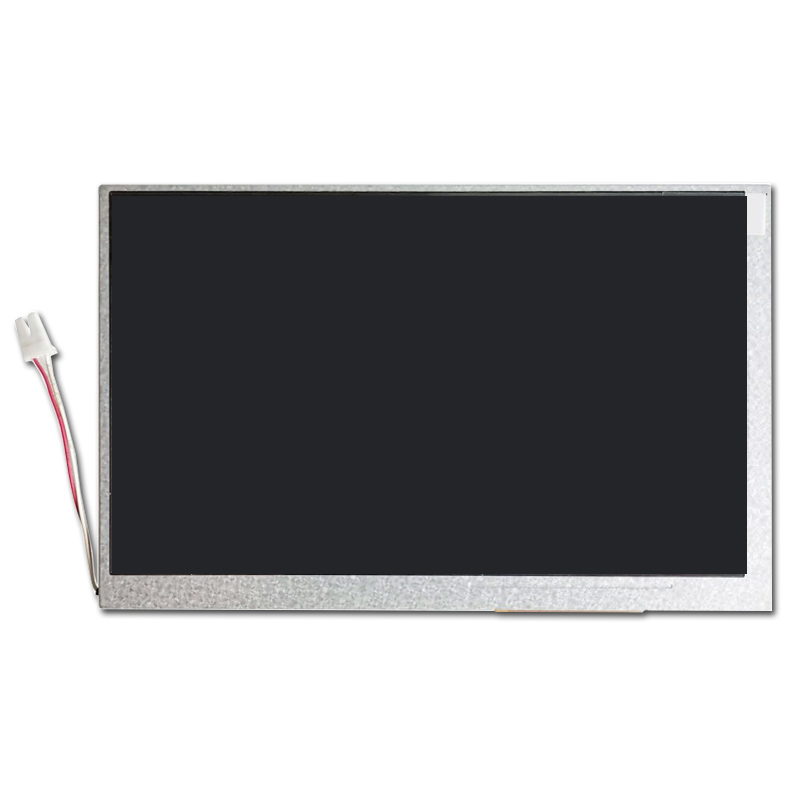

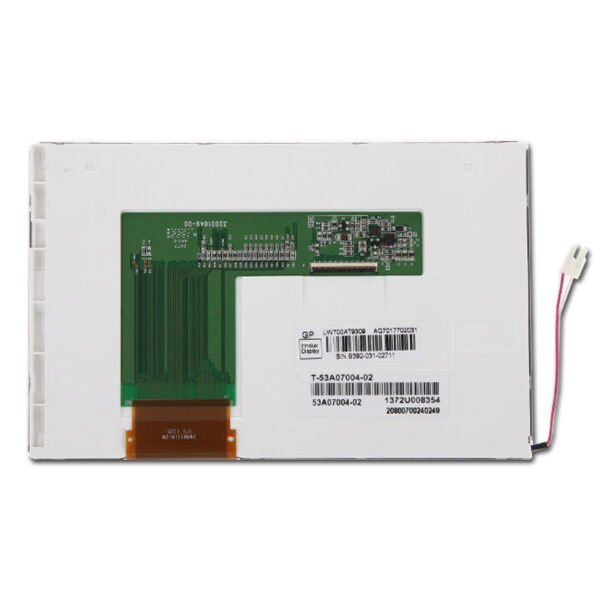

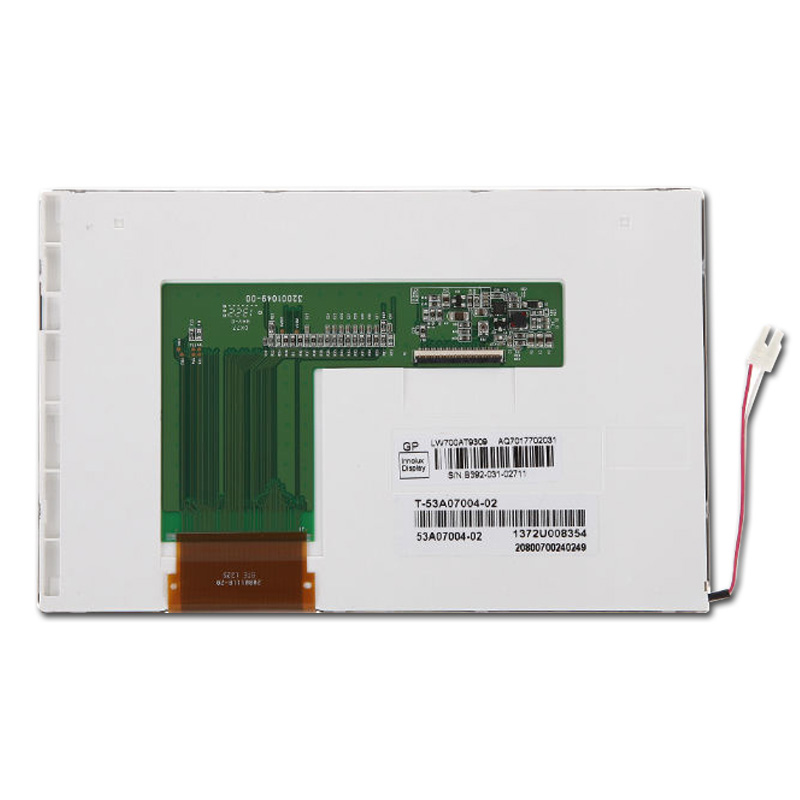

Chimei Innolux LW700AT9309 7-inch TFT-LCD Panel: Features an 800×480 WVGA resolution (133 PPI, RGB vertical stripe), 152.4×91.44mm active area, 165×104.44×5.7mm outline, and antiglare surface; offers 400 cd/m² brightness, 1000:1 contrast ratio, TN normally white transmissive mode, 70/70/60/70 viewing angles (CR≥10), 25ms response time, and 262K color depth. Powered by a 3S8P WLED backlight (15K hours, driverless), it supports 60Hz operation with embedded MEMC for 120Hz/240Hz compatibility (60Hz input), can be customized a touch screen, weighs 123±5g, and uses a 40-pin TTL (1 ch, 6-bit) interface with 3.3V input. Suitable for digital photo frames and portable DVD players, it operates at -20~70°C (storage: -30~80°C).
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
7″ Product Specifications
| Diagonal Size | 7 inch |
|---|---|
| Pixel Number | 800×480 |
| Luminance | 400 |
| Module Size | 165×104.44×5.77 |
| Active Area | 154.4×91.44 |
| Viewing Direction | 6 O’CLOCK |
| View Angle(U/D/R/L) | 70/70/60/70 |
| Interface | TTL 40 |
| Contrast Ratio | 1000 : 1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| LED Lifetime | 15000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux LW700AT9309 Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
