Description
G084SN05 V9General Desription

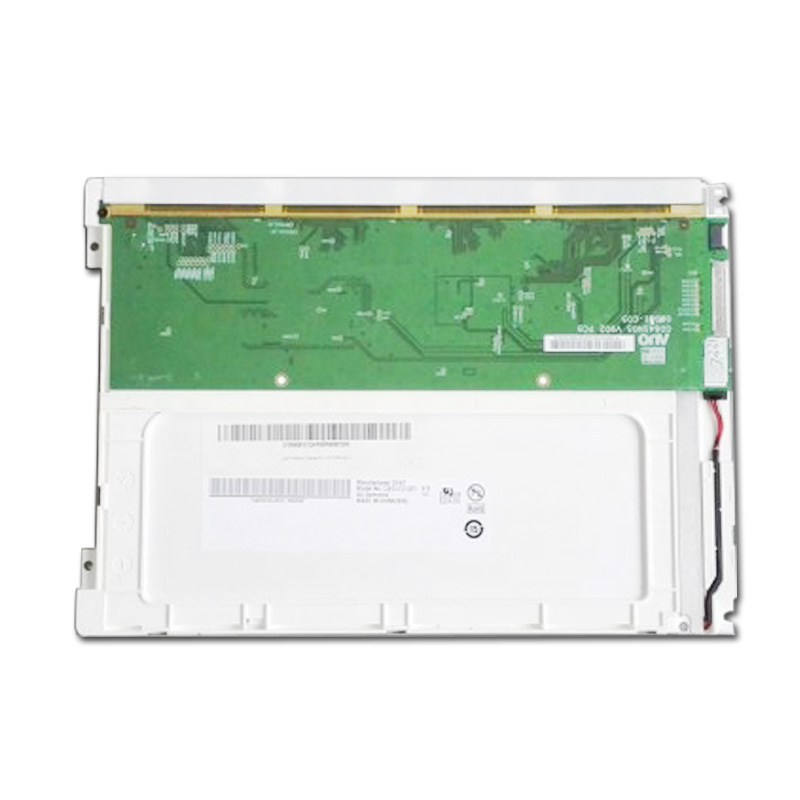

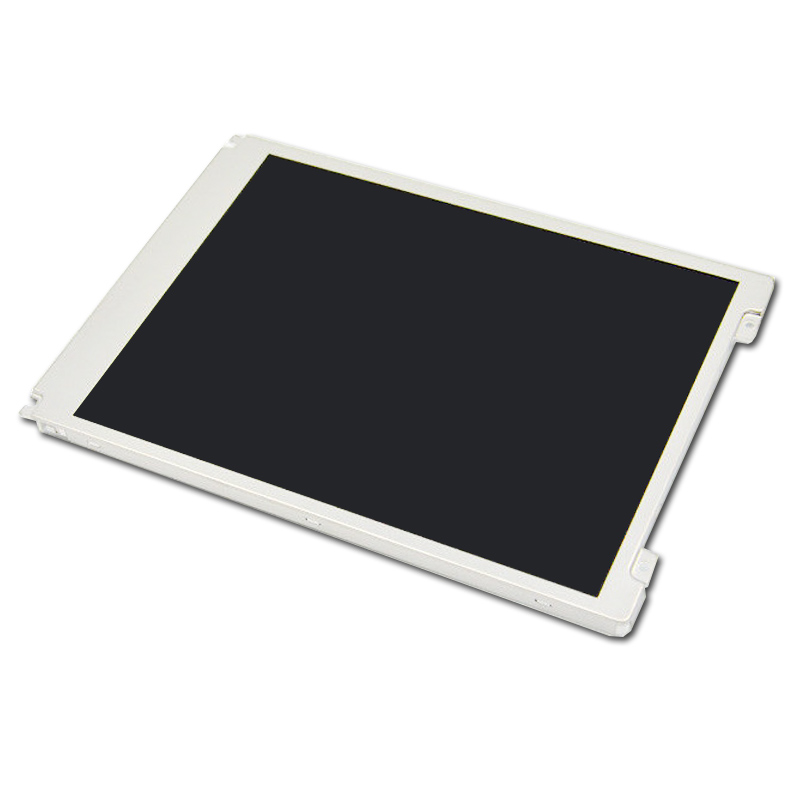

The AUO G084SN05 V9 is an 8.4-inch a-Si TFT-LCD module with 800×600 SVGA resolution and 119 PPI. It features a 450 cd/m² brightness, 600:1 contrast ratio, and TN display mode. With antiglare 3H hard coating, 2-string WLED backlight (50K hours), and LVDS 20-pin interface, it supports 60Hz operation and up to 240Hz via MEMC. Weighing 250g, it’s designed for industrial use, operating and storing at -30~85 °C, and comes without a touch screen.
Key Advantages for Displaysell
Reliable AUO Original Panel: Industrial-grade with -30~85℃ wide temperature range for stable operation in all scenarios.
13-Year AUO Distributorship: Competitive pricing + in-house R&D team offering professional TFT full solutions.
Stock Availability: Immediate shipment to solve urgent delivery needs.
G084SN05 V9 Product Specifications
| Diagonal Size | 8.4"(Diagonal) |
|---|---|
| Pixel Number | 800×600 Pixels |
| Luminance | 450 |
| Module Size | 203(W)×142.5(H) ×8(D) |
| Active Area | 170.4(W)×127.8(H) |
| Viewing Direction | 6 O'CLOCK |
| View Angle(U/D/R/L) | 80/80/80/80 |
| Interface | LVDS |
| Contrast Ratio | 600 |
| Operating Temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| LED Lifetime | 50K |
| Touchscreen Support | Without |
| Power Supply | 3.3v |
| Display Type | Color TFT |
AUO LCD Display Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
