Description
10.1" lcd display with raspberry pi Introduction ：
10.1-inch IPS full-view display
Large viewing angle/true color/excellent image quality
1280X800 resolution
High-definition visual display is very delicate
Touch panel
Tempered glass cover, hardness up to 6H, scratch-resistant and durable
High-sensitivity capacitive touch screen,Accurate touch, supports up to 5-point touch
HDMI interface
HD input, can be used as HDMI display
Supports access to multiple devices
Can be connected to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc.
Can be connected to mainstream game consoles such as PS4, Xbox360, Switch, etc.
Can be connected to mainstream TV boxes and digital cameras (display only)
Supports multiple system displays
Supports Raspbian, Kali linux, Ubuntu, Kodi, Win10 IOT and other systems, touch driver-free
Supports Win7/8/10/11 and other systems, touch driver-free
CE, RoHS certified
Product Pictures
Interface Function：
| Button& Interface | Note |
| A: Touch interface | Use Micro-USB cable to connect to the signal source device. This interface is used for touch and power supply. |
| B: Power interface | Use Micro-USB cable to connect to the power supply. This interface is only used for power supply. |
| C: HDMI interface | Use HDMI cable to connect to the signal source device. The maximum supported resolution is 1080P. |
| D: Side button | Used to adjust the brightness. Press once to increase the brightness by 10%. When it reaches 100%, press again to return to 10%. Press for 3 seconds to turn off the backlight. Press again to restore the original brightness. |
| E: Copper column | Used to fix the Raspberry Pi |
10.1" Raspberry Pi Touch Screen Key Parameters ：
| Size(inch) | 10.1 |
| Resolution(pixels) | 1280*800 |
| Display material | IPS full-view panel |
| Touch | USB capacitive touch |
| Module power | 5.29W |

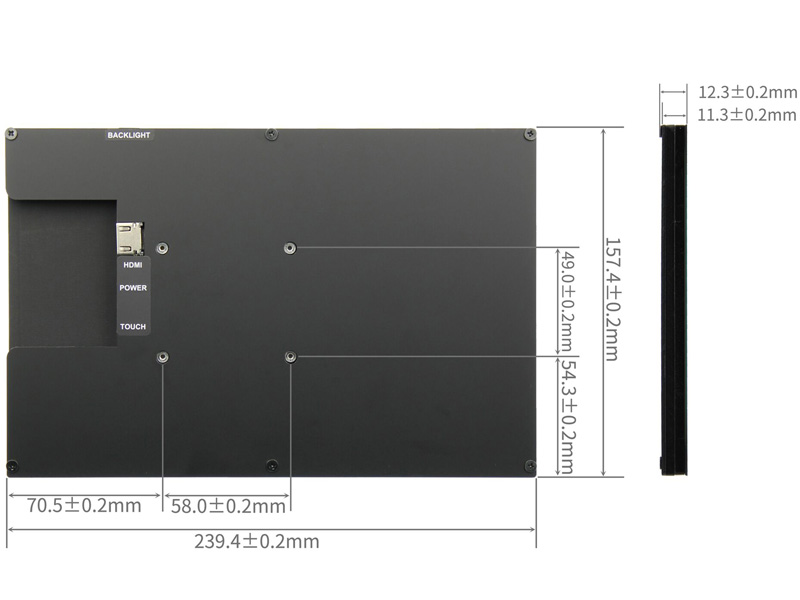

| Module size(mm) | 239.4*157.4*12.3 ±0.2 |
| Packaging size(mm) | 295*195*70 |
| Product weight(g) | 892(g) |
