8 inch HDMI LCD Screens for Raspberry PI with Capacitive Touch

SKU: DS20238
Size:

Resolution:

Interface:

Touchscreen Support:

Board Support

Raspberry Pi, BB Black, Banana Pi

8 inch HDMI LCD Screens for Raspberry PI,Banana Pi、EAIDK、Jetson Nano、BB Black, 1280*800 high resolution IPS panel, can as second screen for pc

$99.00
Request Volume Pricing







    Description

    HDMI LCD Screens for Raspberry PI:

    8 inch standard display, 1280 × 800 resolution
    Tempered glass cover, Hardness up to 6H, scratch-resistant and durable
    High-sensitivity capacitive touch screen, Supports up to 5-point touch
    Supports access to multiple devices,Can be connected to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black
    Can be connected to mainstream game consoles such as PS4, Xbox360, Switch
    Can be connected to mainstream TV boxes and digital cameras (display only)

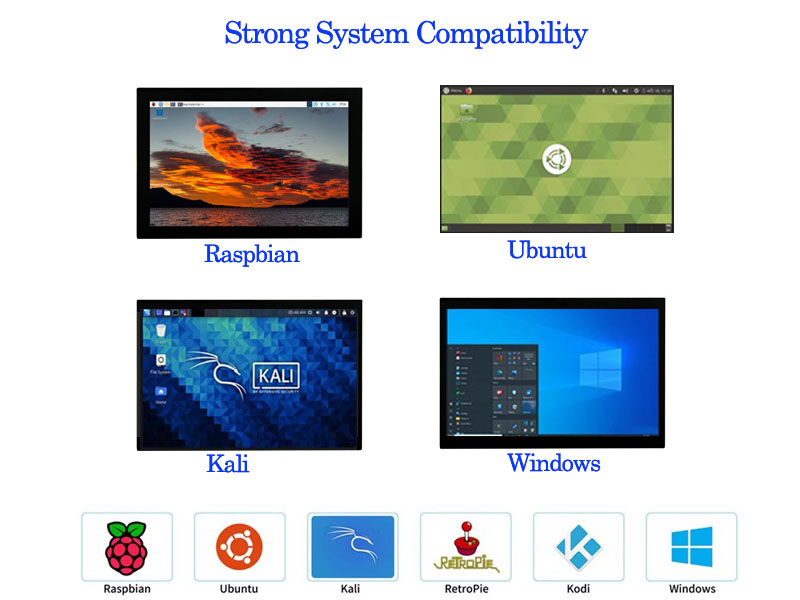

    Supports multiple system displays,Supports Raspbian, Kali linux, Ubuntu, Kodi, Win10 IOT and other systems, touch driver-free
    Supports Win7/8/10/11 and other systems, touch driver-free
    CE and RoHS certified

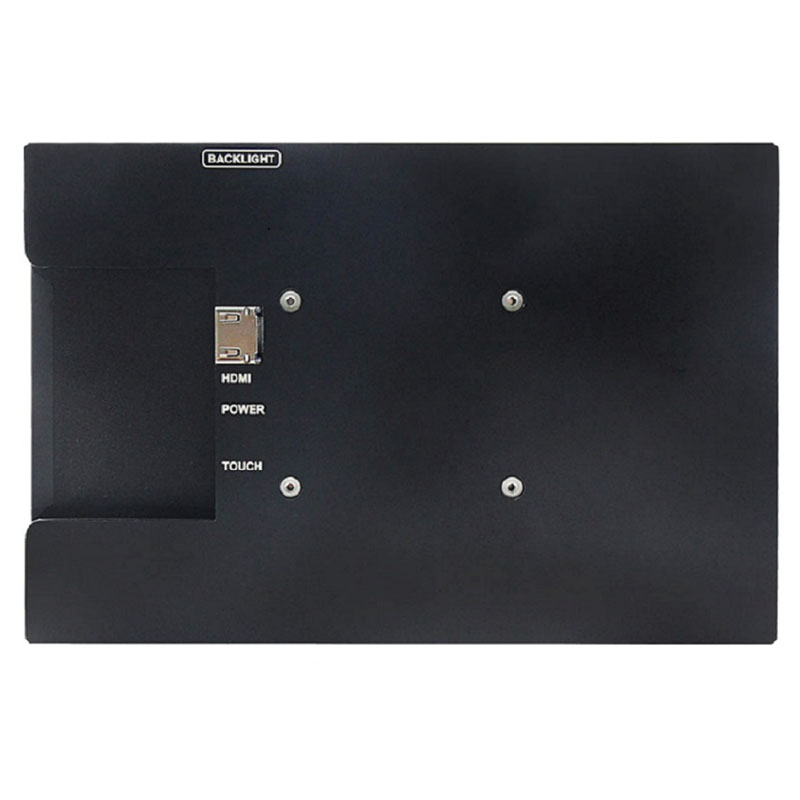

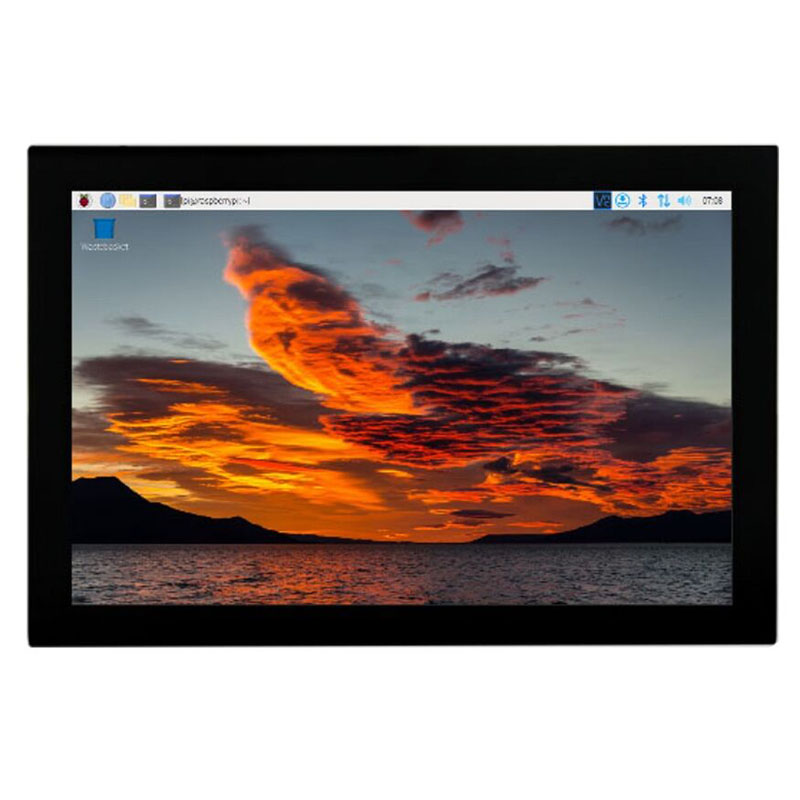

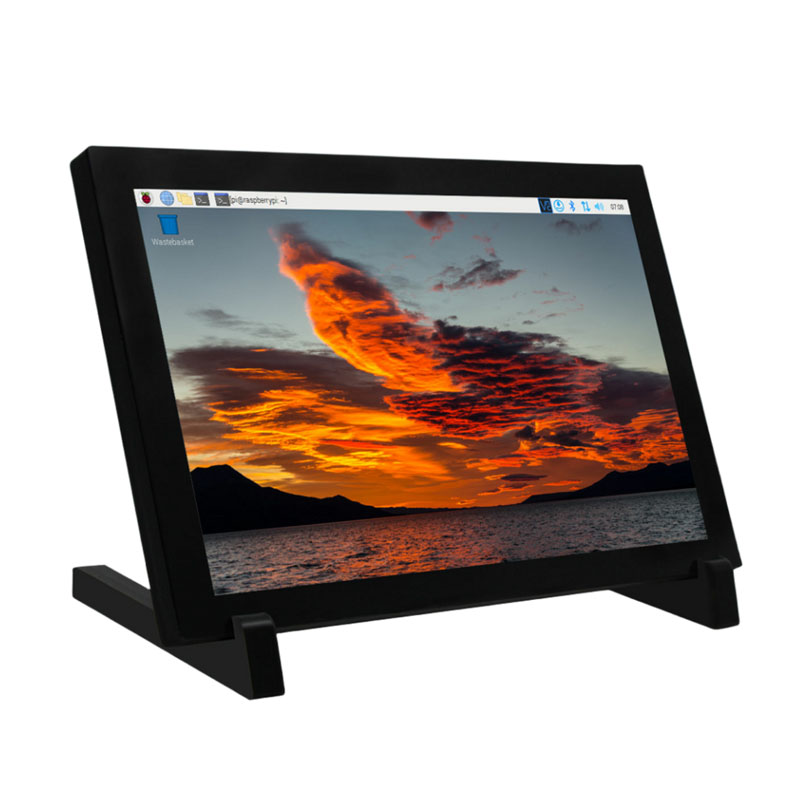

    Product Pictures

    raspberry pi screen
    raspberry pi keyboard on screensize

    Interface Function:

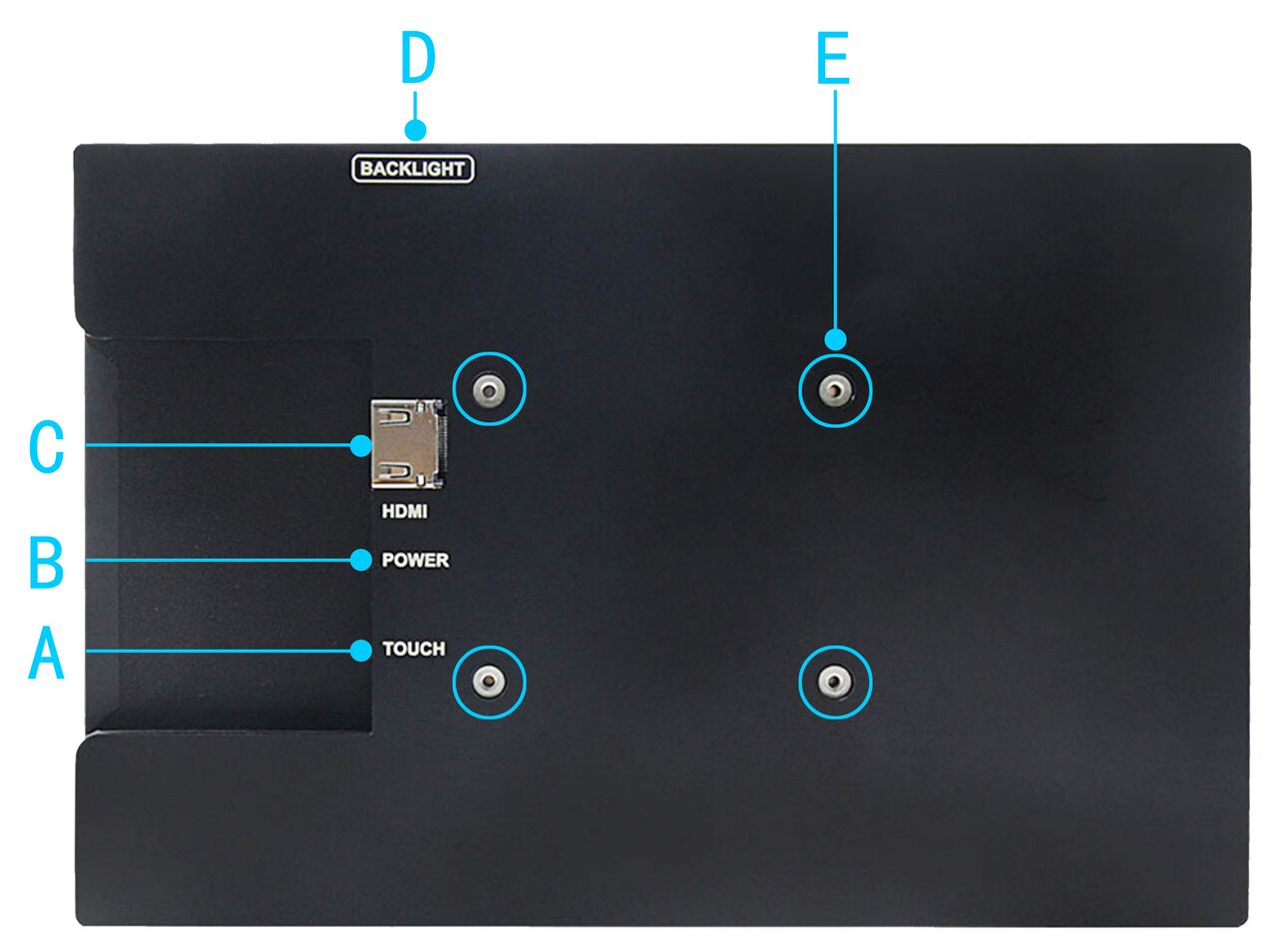

    Interface Introduction
    Button& Interface Note
    A: Touch interface Micro USB cable is used to connect with the signal source device. This interface is used for touch and power supply
    B: Power interface Using micro USB cable and power connection, this interface is only used for power supply
    C: HDMI interface Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p
    D: Side key It is used to adjust the brightness. Press once to increase the brightness by 10%. After reaching 100%, press once again to return to 10%;
    Press and hold for 3 seconds to turn off the backlight, and then press again to restore the original brightness

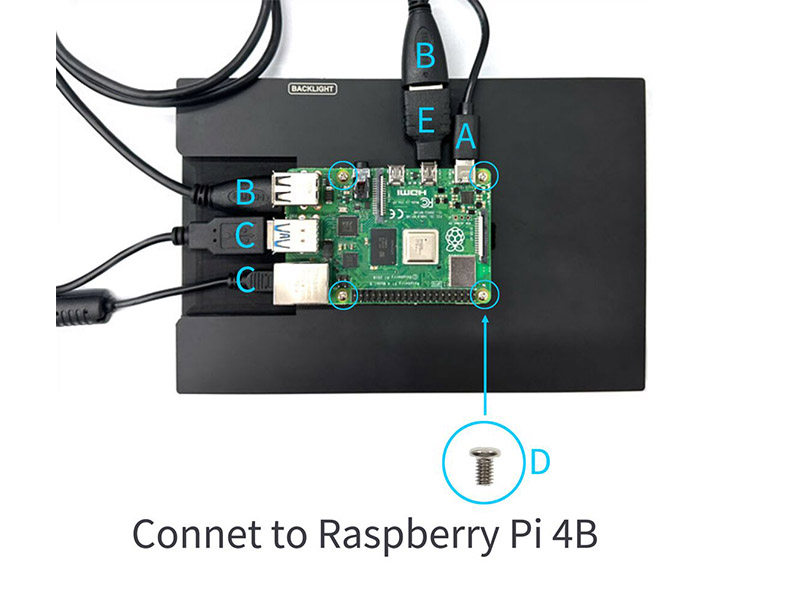

    E: Copper pillar Used to fix raspberry pie (M2.5)

    8″ Raspberry Pi Screen Key Parameters :

    Size(inch) 8
    Resolution(pixels) 1280*800
    Display material IPS full-view panel
    Touch Capacitive Touch Screen
    Module power 3.79W (100% brightness)

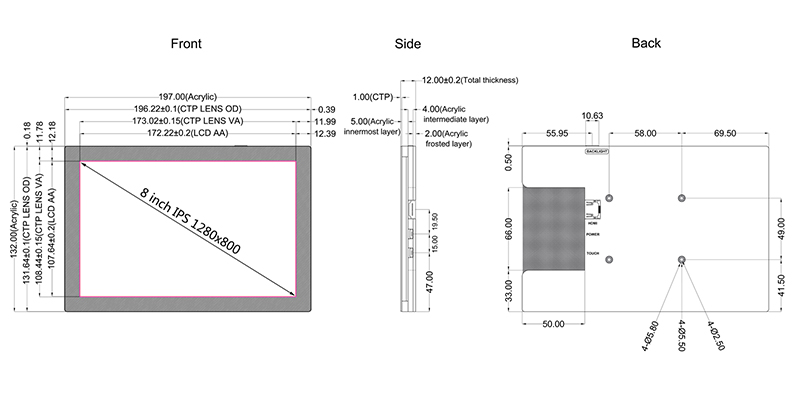

    Module size(mm) 197.0*132.0*12.0±0.2 (mm)
    Packaging size(mm) 234.0*164.0*62.0 (mm)
    Product weight(g) 610(g)

    Download

    Additional information

    Size:

    Resolution:

    Interface:

    Touchscreen Support:

    Board Support

    Raspberry Pi, BB Black, Banana Pi
